Proliant ML350 G5 QuickSpecs |
US QuickSpecs |
|
|
|
|
|
|
|
|
|
Proliant ML350 G5 Overview
HP ProLiant ML350 Generation 5 (G5) |
|
|

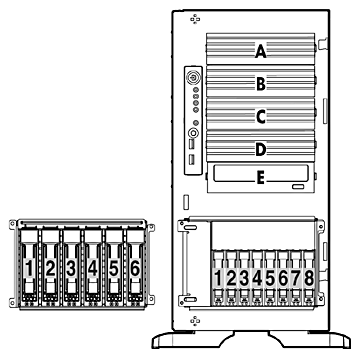

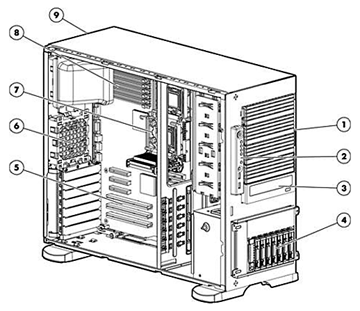

Proliant ML350 G5 Front View: | Proliant ML350 G5 Rear View: | 1. | Five
removable media bays | 1. | Monitor
port | 2. | Front
display panel; includes power button, UID, two USB 2.0 ports, and system status
LED's | 2. | Serial
port | 3. | USB
ports | 3.
| CD-ROM Drive (Dual-Core
models), DVD-ROM Drive (Quad-Core models) | 4.
| Integrated Lights-Out 2 (iLO2) port |
5. | Network
port | 4.
| Eight SFF (2.5")
(shown) or six LFF (3.5") SAS or SATA Hot Plug drive bays |
6. | PCI
Express x4 | 7. | PCI-X
64/100 | 5.
| Six expansion slots (three
PCI Express, three PCI-X) | 8. | PCI-X
64/133 | 6. | Two
system fans standard with support for optional redundant system fans | 9. | Access
to add 2nd redundant power supply | 10. | Mouse
port | 7. | Support
for two Intel® Dual-Core or Quad-Core Xeon® 5000 sequence processors | 11. | Keyboard
port | 12. | Power |
8. | Eight
PC2-5300 FB-DIMM (DDR2 667) memory sockets | |
9. | Single
Hot-Plug power supply standard, optional second redundant supply for availability |
|
At
A Glance |
Building on a tradition of excellence, the
HP ProLiant family introduces the fifth generation HP ProLiant ML350 server.
The HP ProLiant ML350 G5 server provides Multi-Core performance, enterprise
level management, and highly available redundant options in a modular server
form factor. New for this generation is a smaller and quieter chassis, embedded
Smart Array E200i Controller and 5 media bays.
- Processors:
- Quad-Core and Dual-Core Intel® Xeon® processors for blazing
performance; systems support up to 2 processors
- 1333/1066/667 MHz front side bus (FSB)
- Intel® 5000Z chipset
- Memory:
- Eight PC2-5300 Fully Buffered DIMMs (DDR2 667) sockets with online-spare
support for cost-effective memory configuration and expansion and
2:1 interleaving
- Up to 16 GB of memory supported on Dual-Core 5000 and 5100 series
- Up to 32 GB of memory supported on Dual-Core 5200 series, Quad-Core
5300 and 5400 series
- Storage Controllers:
- Entry Models: HP Smart Array E200i/64MB Controller (integrated
SAS/SATA Hot-Plug Controller with RAID 0/1/1+0 support)
- 128MB BBWC optional upgrade kit for RAID 5 support also available
- Base Models: HP Smart Array E200i/128 BBWC Controller (RAID 0/1/1+0/5)
- Internal Drive Support:
- Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial
Attached SCSI (SAS) or Serial-ATA (SATA) hard drives
- Maximum of 6TB of internal storage capacity (using Hot-Plug SATA
drives)
- Network Controller:
- Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP
Offload Engine, including support for Accelerated iSCSI through
an optional Licensing Kit
- Expansion Slots:
- Six total expansion slots
- One 64-bit/133-MHz PCI-X; two 64-bit/100-MHz PCI-X; three x8 PCI
Express (x4 speed)
- Optional PCI-X Expander provides additional two 64-bit/100-MHz
PCI-X slots by converting a single PCI Express slot
- A single x8 PCI Express slot with x8 bus speed can be achieved
by attaching the x4/x8 PCIE Bus Expander option kit. (Please see
the chart and notes in the Expansion Slots under Standard Features
below for more details)
- USB Ports:
- Six USB 2.0 ports: (2) front; (2) rear; (2) internal
- Redundancy:
- Optional Hot plug redundant power supplies
- Support for optional redundant system fans
- Infrastructure Management:
- Convenient slide-out Systems Insight Display for quick and easy
front view server diagnostics, along with status LEDs, Automatic
Server Recovery (ASR), ROM Based Setup Utility (RBSU)
- HP ProLiant Onboard Administrator (powered by the HP Integrated
Lights-Out 2 management processor) for simplified server setup,
health monitoring and recovery, power and thermal control, and lights-out
remote administration.
- HP Insight Control a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, control and optimize your IT infrastructure
through a single, simple management console. Insight Control supports
both Windows and Linux-based central management servers.
- HP Insight Dynamics for ProLiant, a product option, is an integrated
command center that enables IT Staff personnel to continuously analyze
and optimize a converged infrastructure, while automating and reducing
the cost of common data center tasks by as much as 40 percent. This
ultimately enables them to dynamically keep pace with the organization's
changing business requirements.
- Operating Systems and Virtualization Software Support for ProLiant
Servers:
- Supports Windows, RHEL, SLES, OEL, NetWare
- Deployment/Serviceability:
- Optional parallel and second serial port available without using
a PCI slot
- Tool-free chassis entry and component access
- Tool-free motherboard removal
- Universal rail solution supporting both square and round hole
rack environments
- Customer Self Repair (CSR): HP products are designed with many
CSR parts to minimize repair time and allow for greater flexibility
in performing defective parts replacement
- Warranty:
- This product is covered by a global limited warranty and supported
by HP Services and a worldwide network of HP Authorized Channel
Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and
initial setup is available for 90 days from date of purchase. Enhancements
to warranty services are available through HP Care Pack services
or customized service agreements. Hard drives have either a one
year or three year warranty; refer to the specific hard drive QuickSpecs
for details.
- NOTE: Server Warranty includes
3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business
day response. Warranty repairs may be accomplished through the use
of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for
easy replacement but may involve added complexity. Customers may
choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support
is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
|
Standard Features
NOTE:
For a brief, printer friendly data sheet that describes this product and
informs you of the essential capabilities and specifications, please visit:
https://h71028.www7.hp.com/ERC/downloads/4AA0-6362ENW.pdf.
NOTE: For the Standard Features shipped in the "Factory Integrated
Models", please see the "Configuration Information - Factory Integrated
Models" section. |
Processor
One of the following depending on Model |
Quad-Core Processors |
Quad-Core Intel® Xeon®
Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor X5355 (2.66 GHz, 120 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) |
Quad-Core Intel® Xeon®
Processor E5320 (1.86 GHz, 80 Watts, 1066 FSB) |
Quad-Core Intel® Xeon®
Processor E5310 (1.60 GHz, 80 Watts, 1066 FSB) |
Dual-Core Processors |
Dual-Core Intel® Xeon®
Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) |
Dual-Core Intel® Xeon®
Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB) |
Dual-Core Intel® Xeon®
Processor 5160 (3.0 GHz, 80 Watts, 1333 FSB) |
Dual-Core Intel® Xeon®
Processor 5150 (2.66 GHz, 65 Watts, 1333 FSB)
NOTE: Available via Configure-To-Order only. See Factory Integrated
Models section for more information. |
Dual-Core Intel® Xeon®
Processor 5140 (2.33 GHz, 65 Watts, 1333 FSB) |
Dual-Core Intel® Xeon®
Processor 5130 (2.00 GHz, 65 Watts, 1333 FSB) |
Dual-Core Intel® Xeon®
Processor 5120 (1.86 GHz, 65 Watts, 1066 FSB) |
|
Cache Memory
One of the following depending on Model
|
12MB (2 x 6MB) Level 2 cache
(5400 series) |
8MB (2 x 4MB) Level 2 cache
(5300 series) |
6MB (1 x 6MB) Level 2 cache
(5200 series) |
4MB (1 x 4MB) Level 2 cache
(5100 series) |
4MB (2 x 2MB) Level 2 cache
(5000 series) |
|
Upgradeability |
Upgradeable to 2 processors
(4 or 8 cores) |
NOTE: Future
upgradeable to Xeon® Series 5400/5300 Quad-Core processors (Please contact
your regional sales support to determine quad core upgradeability. Some
of the earlier shipping models may not support this upgrade). 5100 Dual-Core
models are not upgradeable to the 5200 Dual-Core processors. |
|
Memory Protection
|
Online spare |
Advanced ECC |
|
ML350 G5 Memory
One of the following depending on model | Type | PC2-5300
Fully Buffered DIMMs (DDR2-667) | Standard
(Entry Models) | 512 MB (1 x 512
MB) on Dual-Core Models | 1
GB (2 x 512 MB) on Quad-Core 5300 series | 1
GB (2 x 512 MB) on Quad-Core 5400 series | Standard
(Base Models) | 1 GB (2 x 512
MB) on Dual-Core Models | 1
GB (2 x 512 MB) on Quad-Core 5300 series | 2
GB (2 x 1 GB) on Quad-Core 5400 series | Maximum
(Dual-Core 5000 & 5100 series) | 16
GB (8 x 2 GB) | Maximum
(Dual-Core 5200, Quad-Core 5300 & 5400 series) | 32
GB (8 x 4 GB) | |
Network Controller |
Embedded NC373i Multifunction
Gigabit Network Adapter with TCP/IP Offload Engine, including support for
Accelerated iSCSI through an optional Licensing Kit |
|
Expansion Slots |
|
|
Expansion
Slot #
|
Technology
|
Bus Width
|
Connector Width*
|
Bus Number**
|
Form Factor
|
Notes
|
6
|
PCI Express |
x4
|
x8
|
15
|
Standard Height/Length
|
|
5
|
PCI Express |
x4
|
x8
|
6
|
Standard Height/Length
|
|
4
|
PCI Express |
x4
|
x8
|
9
|
Standard Height/Length
|
|
3
|
64-bit / 100MHz
PCI-X |
NA
|
NA
|
12
|
Standard Height/Length
|
PCI-X 100MHz
|
2
|
64-bit / 100MHz
PCI-X |
NA
|
NA
|
12
|
Standard Height/Length
|
PCI-X 100MHz
|
1
|
64-bit / 133MHz
PCI-X |
NA
|
NA
|
20
|
Standard Height/Length
|
PCI-X 133MHz
|
NOTES:
* Default bus assignment. Inserting cards with PCI bridges may alter the
actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from
lowest to highest Device ID by bus (starting with the lowest bus). |
|
Storage
Controller | Entry Models | HP
Smart Array E200i/64MB Controller | Base
Models | HP Smart Array E200i/128
BBWC Controller | NOTE:
Supports RAID 0/1/1+0 with 64MB of Cache, upgradeable to 128MB with BBWC for
RAID 5 support. | |
Storage |
Diskette Drives |
None included standard |
Optical Drive
One of the following depending on model
|
Quad-Core 5400 series: 16x SATA
DVD-ROM drive |
Quad-Core 5300 series: 16x PATA
DVD-ROM drive |
Dual-Core: 48x IDE CD-ROM drive |
NOTE: Quad-Core
5400 series BTO Models are configured with SATA optical drive. |
Hard Drives |
None included standard |
|
Maximum
Internal Storage One of the following depending
on model |
Hot Plug LFF SATA |
6TB |
6 x 1TB |
Hot Plug LFF SAS |
6TB |
6 x 1TB |
Hot Plug SFF SATA |
4.0TB |
8 x 500GB |
Hot Plug SFF SAS |
4.0TB |
8 x 500GB |
|
Interfaces |
Parallel |
Optional parallel port available |
Serial |
1 (optional 2nd serial port
available) |
Pointing Device (Mouse) |
1 |
Graphics |
1 |
Keyboard |
1 |
Network RJ-45 |
2 (1 dedicated for iLO 2) |
USB 2.0 Ports |
6 (2 front, 2 rear, 2 internal)
NOTE: Please see the following URL
for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html. |
|
Graphics |
Integrated ATI ES1000, 32MB video standard
- 16 bit color: maximum resolution of 1600 x 1200
- 32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via
iLO 2 remote console is 1280 x 1024.
|
|
Form Factor |
Tower or Rack (5U) |
NOTE: Rack models (and rack conversion kit) support:
- Square or round hole racks 24"- 36" deep, including HP Rack
System /E and HP Systems
- Telco racks with 3rd part option kit from Rack Solutions
https://www.racksolutions.com/hp
|
|
HP Insight management
software |
HP Insight Foundation |
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: https://www.hp.com/go/foundation.
The foundation pack includes:
- HP SmartStart
- HP Management
- HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 7.60.
https://www.hp.com/servers/smartstart
|
ProLiant Onboard Administrator |
HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out
2 management processor) simplifies server setup, health monitoring, power
and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without
additional software, and can be accessed from any location via a web browser.
It works hand-in-hand with HP Systems Insight Manager, Insight Control
suites, and the Insight Dynamics for ProLiant helping customers unlock
the value of the ProLiant platform and deliver the highest possible quality
of IT service to the business. See: www.hp.com/go/ProLiantOA
|
HP Insight Control |
HP Insight Control, a product
option, delivers essential infrastructure management that can help save
time and money by making it easy to deploy, migrate, monitor, remote control,
and optimize your IT infrastructure through a single, simple management
console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP Insight
Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit: https://www.hp.com/services/insight. |
HP Insight Dynamics for ProLiant |
HP Insight Dynamics for ProLiant,
a product option, is an integrated command center that enables IT Staff
personnel to continuously analyze and optimize a converged infrastructure,
while automating and reducing the cost of common data center tasks by as
much as 40 percent. As a powerfully integrated by design toolkit to accelerate
complex technology projects and simplify daily operations that ultimately
enable IT Staff personnel to dynamically keep pace with the organizations
changing business requirements. It enables them to plan capacity and power
continuously, balance across physical and virtual resources, and ensure
cost-effective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery
for physical and virtual environments that works with HP StorageWorks Continuous
Access software for both the Enterprise Virtual Array and the XP storage
array allowing application environments to be reactivated in minutes with
the touch of a button to a remote location.
NOTE: For more information, visit:
https://www.hp.com/go/insightdynamics |
|
Industry Standard Compliance |
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
PCI-X 1.0a Compliant
Novell Certified
Microsoft® Logo certifications
USB 2.0 |
|
Availability |
Optional Hot-Plug, Redundant
Power supply
Online-Spare Memory
Optional Dual Redundant System Fans |
|
System Management |
HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives) |
|
Security |
Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security |
|
Server
Power Cords | ProLiant ML servers
in a rack-mount configuration no longer ship standard with NEMA power cords that
allow connection to 110V wall outlets in a home or office. These servers are primarily
connected to PDU's in data center racks so they now ship standard with only a
PDU power cord (416151-B21). If a user wishes to power a ProLiant ML rack-mount
server using a 110V receptacle (NEMA-15), the NEMA power cord must be ordered
separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased online
at HP.COM. In a tower configuration, the servers ship standard with a 6' NEMA
power cord. If customers require a local power cord, they can check the power
cord matrix for the appropriate sku. Please see the following power cord matrix:
https://www.hp.com/go/powercordmatrix.
| |
UPS
and PDU Power Cord Matrix |
Please see the UPS and PDU cable
matrix's on the HP Power Protection and Management page. Under Power Cords,
click on the "HP Power Cord Matrix" link. That link will list
cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link: www.hp.com/products/powercords. |
|
Power Supply |
800 Watt-CE Mark Compliant
Hot Plug Power Supply (1000 Watt high line)
Optional second Power Supply provides redundant capability
NOTE: Please see the "Power Specifications" section later
in this document for low line and high line requirements. |
|
System Fans |
2 fans ship standard, dual redundant fans
are optional, 4 fans total supported (does not include power supply or
processor heat sink fans) |
|
Required
Cabling | For required cabling
information, refer to the HP ProLiant ML350 G5 cabling matrix at: https://www.hp.com/servers/proliantML350.
NOTE: Please see the "Storage"
section of this QuickSpecs for important information on controllers and cables
required to support SAS or SATA hard drives as well as storage management software
available for SATA hard drives. |
|
Installation of Server into
Telco Racks |
Support for all 2-post Telco
racks requires the use of the HP ProLiant ML350 G5 rack kit and an additional
option kit from Rack Solutions. https://www.hp.com/go/rackandpower |
|
Factory
Express Portfolio for Servers and Storage |
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to: https://www.hp.com/go/factory-express.
|
|
HP Enterprise Configurator |
The HP eConfigure-Enterprise Configurator now provides factory default
racking for our HP hardware portfolio. This approach is aligned with our
strategic direction to meet the needs and expectations of our valued customers.
If you require "custom" rack configuration, please contact HP's
Customer Business Center or an Authorized Partner for assistance. https://www.hp.com/products/configurator
|
|
Service and Support |
HP Care Pack services provide total care and support
expertise with committed response designed to meet your IT and business
needs.
HP Care Pack services include coverage for the HP branded
hardware options qualified for the server and purchased at the same time
or afterward that are internal to the enclosure. This also includes the
22" and smaller external monitors and tower UPS options up to 3kVA.
These items will be covered at the same service level and for the same
coverage period as the server. Coverage of UPS Battery is not included,
and standard warranty terms & conditions apply. For servers or storage
systems installed within a rack, service also covers all HP qualified
rack options installed within the same rack.
To fully capitalizing on your HP ProLiant servers'
capabilities requires a service partner who thoroughly understands your
server technology and systems environment. HP Services, an industry leader
in provision of multi vender support solutions, provides a range of support
services designed to meet the varying needs of your business. Whether
an SMB, or large global corporation, HP has a ProLiant server support
offer to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation,
maintenance, and management.
- Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage
only
- Deployment Service - Installation and Start up only
Enhanced Service - optimize service level to increase IT performance
and availability.
- Support - 3-Year Support Plus 24 only
Refer to the information on "Installation & Start-Up" for
service on ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE: For a complete listing of service
offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack
|
Models
NOTE:
For the Standard Features shipped in the "Factory Integrated Models",
please see the "Configuration Information - Factory Integrated Models"
section. NOTE: Please note that SFF tower or rack models can only be
configured with SFF 2.5" SAS or SATA hard drives and LFF tower or rack models
can be only configured with LFF 3.5" SAS or SATA hard drives. |
HP
ML350 G5 Entry Models Tower Quad-Core Models HP
ML350T05 E5420 LFF 458239-001 HP ML350T05
E5410 LFF
458244-001
Rack Quad-Core Models HP ML350R05
E5420 LFF 458240-001 | Processor(s)
One of the following depending on Model
| (1) Quad-Core Intel® Xeon®
E5420 Processor (2.50 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® E5410 Processor (2.33 GHz, 80 Watts,
1333 FSB) |
Cache Memory |
12MB (2 x 6MB) Level 2 cache
- 5400 Series |
Memory |
1 GB (2 x 512 MB) |
Network Controller |
Embedded NC373i Multifunction Gigabit Server Adapter | Storage
Controller | Smart Array E200i/64
Controller (RAID 0/1/1+0) | Hard
Drive | None Ship Standard; (0/6
LFF) | Internal Storage | 6TB
LFF SATA 6TB LFF SAS | Optical
Drive One of the following depending on Mode | Quad-Core:
16x DVD-ROM standard Dual-Core: 48x CD-ROM standard | PCI-Express
Slots | Six expansion slots (three
PCI Express, three PCI-X) | Power
Supplies | 800-Watt CE-mark compliant
Hot-Plug power supply Optional second power supply provides redundant operation |
Fans | 2
fans ship standard, 4 fans total supported (does not include power supply or processor
heatsink fans) | Form
Factor One of the following depending on Model | Tower
Rack (5U), (8.75 in/22.25 cm) |
|
HP ML350 G5 Base Models
Tower
Quad-Core Models
HP ML350T05 E5430 SFF
458238-001
HP ML350T05 E5420 SFF
458242-001
HP ML350T05 E5410 SFF
458246-001
Rack
Quad-Core Models
HP ML350R05 E5430 SFF
458237-001
HP ML350R05 E5420 SFF
458243-001
|
Processor(s)
One of the following depending on Model |
(1) Quad-Core Intel® Xeon®
E5430 Processor (2.66 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® E5420 Processor (2.50 GHz, 80 Watts,
1333 FSB)
(1) Quad-Core Intel® Xeon® E5410 Processor (2.33 GHz, 80 Watts,
1333 FSB) |
Cache Memory |
12MB (2 x 6MB) Level 2 cache |
Memory |
2 GB (2 x 1GB) standard |
Network Controller |
Embedded NC373i Multifunction
Gigabit Server Adapter |
Storage Controller |
Smart Array E200i/128 BBWC Controller
(RAID 0/1/1+0/5) |
Hard Drive |
None Ship Standard; (0/8 SFF) |
Internal Storage |
4TB SFF SATA
4TB SFF SAS |
Optical Drive
One of the following depending on Model |
Quad-Core: 16x DVD-ROM standard
Dual-Core: 48x CD-ROM standard |
PCI-Express Slots |
Six expansion slots (three PCI
Express, three PCI-X) |
Power Supplies |
800-Watt CE-mark compliant Hot-Plug
power supply
Optional second power supply provides redundant operation |
Fans |
2 fans ship standard, 4 fans
total supported (does not include power supply or processor heatsink fans) |
Form Factor
One of the following depending on Model |
Tower
Rack (5U), (8.75 in/22.25 cm) |
Configuration Information - Factory Integrated Models
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the
use of an HP approved configurator. Contact your local sales representative
for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard
models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory
Installable Option. |
Step
1: Base Configuration (choose one of the following configurable models) |
Models |
ML350 G5 Tower Models |
|
LFF - 3.5" Drives |
|
HP ProLiant ML350G5
LFF SAS/SATA Tower CTO Chassis |
412645-B21
|
Includes: |
|
Embedded NC373i Multifunction
Gigabit Server Adapter |
|
Integrated Smart
Array E200i Controller |
|
Six Hot-Plug (LFF)
SAS/SATA Drive Bays |
|
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors) |
|
Six USB ports |
|
800W Hot-Plug Power
Supply |
|
Tower Form Factor |
|
Keyboard |
|
2-button Mouse |
|
|
|
SFF - 2.5" Drives |
|
HP ProLiant ML350G5
SFF SAS/SATA Tower CTO Chassis |
395570-B21
|
Includes: |
|
Embedded NC373i Multifunction
Gigabit Server Adapter |
|
Integrated Smart
Array E200i Controller |
|
Eight Hot-Plug (SFF)
SAS/SATA Drive Bays |
|
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors) |
|
Six USB ports |
|
800W Hot-Plug Power
Supply |
|
Tower Form Factor
|
|
Keyboard |
|
2-button Mouse |
|
|
|
ML350 G5 Rack Models |
|
LFF - 3.5" Drives |
|
HP ProLiant ML350G5
LFF SAS/SATA Rack CTO Chassis |
412644-B21
|
Includes: |
|
Embedded NC373i Multifunction
Gigabit Server Adapter |
|
Integrated Smart
Array E200i Controller |
|
Six Hot-Plug (LFF)
SAS/SATA Drive Bays |
|
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors) |
|
Six USB ports |
|
800W Hot-Plug Power
Supply |
|
Rack (5U) Form Factor
|
|
|
|
SFF - 2.5" Drives |
|
HP ProLiant ML350G5
SFF SAS/SATA Rack CTO Chassis |
395569-B21
|
Includes: |
|
Embedded NC373i Multifunction
Gigabit Server Adapter |
|
Integrated Smart
Array E200i Controller |
|
Eight Hot-Plug (SFF)
SAS/SATA Drive Bays |
|
Six expansion slots:
one 64-bit/133-MHz PCI-X, two 64-bit/100-MHz PCI-X, and three x4 PCI Express
(with x8 connectors) |
|
Six USB ports |
|
800W Hot-Plug Power
Supply |
|
Rack (5U) Form Factor |
|
|
Step
2: Choose Required Options (only one of the following from each list unless
otherwise noted) |
Processors |
Quad-Core Processors |
|
Quad-Core Intel®
Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) ML350G5 FIO Kit
|
|
Quad-Core Intel®
Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit |
|
Quad-Core Intel®
Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit |
|
Quad-Core Intel®
Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) ML350G5 FIO Kit
|
493459-B21 |
Quad-Core Intel®
Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit |
|
Quad-Core Intel®
Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit |
458267-B21 |
Quad-Core Intel®
Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) ML350G5 FIO Kit |
458269-B21 |
Base
Memory |
1 GB FBD PC2-5300
2 x 512 MB Single Rank Kit |
|
2 GB FBD PC2-5300
2 x 1 GB Dual Rank Kit |
|
2 GB FBD PC2-5300
2 x 1 GB Low Power Single Rank Kit |
|
4 GB FBD PC2-5300
2 x 2 GB Dual Rank Kit |
|
4 GB FBD PC2-5300
2 x 2 GB Low Power Dual Rank Kit |
|
8 GB FBD PC2-5300
2 x 4 GB Dual Rank Kit |
|
8 GB FBD PC2-5300
2 x 4 GB Low Power Dual Rank Kit |
|
NOTE:
Memory Option Kits include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, please visit:
https://h18004.www1.hp.com/products/servers/platforms/energyefficient/. |
|
Smart
Array E200i Controller Cache
|
HP SA E200 64MB Cache
FIO Kit
NOTE: Select this option for RAID 0/1/1+0 |
|
128-MB Battery-Backed
Write Cache (BBWC)
NOTE: Select this option for RAID 0/1/1+0/5. |
|
Optical
Drive |
16X DVD-ROM Drive
Option Kit (Carbon) |
|
HP Half-Height SATA
DVD-ROM Optical Drive |
447326-B21
|
HP Half-Height SATA
DVD RW Optical Drive |
447328-B21
|
|
Step
3: Choose Additional Factory Integratable Options |
Controllers |
HP Smart Array P400/256 MB Controller
NOTE: SAS Controller supporting RAID 0/1/1+0/5.
|
|
HP Smart Array P600/256
BBWC Controller
NOTE: SAS Controller supporting RAID 0/1/1+0/5/6. |
|
Smart Array 642 Controller
NOTE: U320 Controller. |
|
Smart Array 6402/128
Controller
NOTE: U320 Controller. |
|
Smart Array 6404/256
Controller
NOTE: U320 Controller. |
|
64-Bit/133-MHz Single
Channel Ultra320 SCSI HBA G2 |
|
HP Smart Array 6404/512
FIO CNTRLR |
|
Insight Control
suite |
HP Insight Control
suite, No Media 1-Server License Factory-Integratable Option (FIO) including
1 year of 24x7 Technical Support and Updates |
582765-B21 |
|
Step
4: Choose Additional Options for Factory Integration | NOTE:
For additional options, please refer to the "Core Options" and
"Additional Options" section below. |
ML350 G5 Core Options
NOTE:
Some options may not be factory configurable. Please contact your local
sales representative for additional information. |
|
HP
ProLiant ML350 G5 Unique Options |
HP Redundant Fan
ML350 G5 Kit |
409579-B21
|
HP PCI-X Expander
Kit (2 x 64-bit 100MHz PCI-X slots)
NOTE: The HP PCI-X Expander kit converts a single PCI Express slot
(slot 6) into two full height, full length 64-bit 100MHz PCI-X slots.
NOTE: The HP PCI-X Expander kit can support a maximum of one (1)
HP Smart array, HBA, or SCSI PCI-X adapter. Prioritize internal slots for
use with PCI-X storage controllers. Please refer to the ML350G5 user guide
for additional details. |
|
HP Tower to Rack
Conversion Kit - ML350 G5 Kit
NOTE: See "Redundant Options" section below for Hot Plug
Redundant Power supplies. |
|
|
Processors |
Quad-Core Processors |
|
Quad-Core Intel® Xeon®
Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB) |
493457-B21 |
Quad-Core Intel® Xeon®
Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB) |
458257-B21 |
Quad-Core Intel® Xeon®
Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB) |
458259-B21 |
Quad-Core Intel® Xeon®
Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB) |
493459-B21 |
Quad-Core Intel® Xeon®
Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB) |
458265-B21 |
Quad-Core Intel® Xeon®
Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB) |
458267-B21 |
Quad-Core Intel® Xeon®
Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB) |
458269-B21 |
Quad-Core Intel® Xeon®
Processor X5355 (2.66 GHz, 120 Watts, 1333 FSB) |
436015-B21 |
Quad-Core Intel® Xeon®
Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB) |
436013-B21 |
Quad-Core Intel® Xeon®
Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB) |
437444-B21 |
Quad-Core Intel® Xeon®
Processor E5320 (1.86 GHz, 80 Watts, 1066 FSB) |
435512-B21 |
Quad-Core Intel® Xeon®
Processor E5310 (1.6 GHz, 80 Watts, 1066 FSB) |
435513-B21 |
Dual-Core Processors |
|
Dual-Core Intel® Xeon®
Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) |
493461-B21 |
Dual-Core Intel® Xeon®
Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB) |
458725-B21 |
|
Memory (DIMMs)
|
1 GB FBD PC2-5300 2 x 512 MB Single
Rank Kit |
|
2 GB FBD PC2-5300 2 x 1 GB Dual
Rank Kit |
|
2 GB FBD PC2-5300 2 x 1 GB Low
Power Single Rank Kit |
|
4 GB FBD PC2-5300 2 x 2 GB Dual
Rank Kit |
|
4 GB FBD PC2-5300 2 x 2 GB Low
Power Dual Rank Kit |
|
8 GB FBD PC2-5300 2 x 4 GB Dual
Rank Kit |
|
8 GB FBD PC2-5300 2 x 4 GB Low
Power Dual Rank Kit |
|
NOTE: Memory Option
Kits include Low Power DIMMs. For more information on ProLiant Energy Efficient
Features, please visit:
https://h18004.www1.hp.com/products/servers/platforms/energyefficient/ |
|
|
Smart Buy Memory (DIMMs)
|
1 GB FBD
PC2-5300 2 x 512 MB Kit
|
397409-S21
|
2 GB FBD
PC2-5300 2 x 1 GB Kit
|
397411-S21
|
4 GB FBD PC2-5300 2 x 2 GB Kit
|
397413-S21
|
|
Optical Drives
|
Floppy Drive ML350/370 G5 Kit
|
409582-B21
|
16X DVD-ROM Drive Option Kit (Carbon) |
217053-B21 |
HP Half-Height SATA DVD-ROM Optical
Drive |
447326-B21 |
HP Half-Height SATA DVD RW Optical
Drive |
447328-B21 |
NOTE: Please note
that some of the earlier BTO models may not support adding SATA Optical
Drives. To ensure compatibility of the SATA Optical Drives, please add additional
optical drives only on models with Quad-Core 5400 Series processors. |
|
|
Communications
|
Gigabit Ethernet Adapters |
|
HP NC112T PCIe Gigabit Server
Adapter |
|
HP NC360T PCI Express Dual Port
Gigabit Server Adapter |
|
HP NC364T PCI Express Quad Port
Gigabit Server Adapter
NOTE: Does not support Windows 2000.
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit
Server Adapter NICs allowed in this server. |
|
HP NC373F PCI Express Multifunction
Gigabit Server Adapter |
|
HP NC373T PCI Express Multifunction
Gigabit Server Adapter |
|
HP NC380T PCI Express Dual Port
Multifunction Gigabit Server Adapter
NOTE: Supported on a full length-full
height slot only. |
|
10 Gigabit Ethernet Adapters |
|
HP NC522SFP Dual Port 10GbE Server
Adapter
NOTE: A minimum of two gigabyte (2
GB) of server memory is required per each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber
transceivers and cables for fiber-optic environments must be purchased separately. |
|
NOTE: Please
see the QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs |
|
|
Power Supplies
|
Redundant Power Supply 350/370/380
G5 Kit (IEC Cord) |
|
Redundant Power Supply 350/370/380
G5 Kit (NEMA Cord) |
|
Power Options |
|
Redundant Fan ML350 G5 Kit |
409579-B21
|
Additional Options
HP
Insight Software |
HP Insight Control
server deployment |
|
HP Insight Control
server deployment, Electronic License including 1 year of 24x7 Technical
Support and Updates |
T9082AAE |
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The
license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit
can be ordered separately, or can be downloaded at: https://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control
QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html |
|
HP Insight Control
for Linux |
|
HP Insight Control
for Linux, 1-server license, including one year of 24x7 Technical Support
and Updates, Electronic |
T9084BAE |
HP Insight Control
for Linux, No Media, 1-Server license, including one year of 24x7 Technical
Support and Updates |
464423-B22 |
HP Insight Control
for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the
ISO image for HP Insight Control for Linux, HP Systems Insight Manager,
HP Insight Control power management, HP Insight Control virtual machine
management, and an integrated installer. Servers must be acquired separately. |
464422-B22 |
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at: https://www.hp.com/go/insightupdates.
NOTE: Electronic software is available in all countries except China
and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing
options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html |
|
HP Integrated Lights-Out
Advanced |
|
HP Integrated Lights-Out
Advanced, No Media, 1-Server License, including 1 year of 24x7 Technical
Support and Updates
NOTE: This license allows 1 server
to be deployed and managed via HP iLO Advanced. Customer will receive a
printed license entitlement certificate via physical shipment. The license
entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service
NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html |
512485-B21 |
HP Insight Rapid
Deployment software |
|
HP Insight Rapid
Deployment software No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates
NOTE: This license allows 1 server
to be deployed and managed via RDP. Customer will receive a printed license
entitlement certificate via physical shipment. The license entitlement certificate
must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery
options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/11053_na/11053_na.html |
452151-B21 |
|
PCI Option
|
HP x4-x8 PCI-E Bus Expander Option
Kit
NOTE: The HP x4/x8 PCI Express Bus
Expander kit converts 2 x4 PCI Express slots into a single x8 PCI Express
slot for high performance x8 PCI Express cards. |
403724-B21
|
|
Port Options
|
Parallel/Serial Port ML370/350
G5 Kit |
401222-B21
|
|
Tape Storage |
NOTE: For the
complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html |
|
Tape Drives |
|
DAT USB Tape Drives |
|
HP StorageWorks DAT 160 USB Internal
Drive |
Q1580A |
HP DAT 320 USB Internal Tape Drive |
AJ825A |
DAT 320 USB External Tape Drive |
AJ823A |
SAS Tape Drives
NOTE: For the ML350 G5, HP recommends
purchasing the HP SC44Ge HBA ( 416096-B21) for a dedicated SAS HBA for tape. |
|
HP StorageWorks LTO-2 Ultrium
448 SAS Internal Tape Drive |
DW085A
|
HP StorageWorks LTO-3 Ultrium
920 SAS Internal Tape Drive |
EH847A
|
HP StorageWorks LTO-4 Ultrium
1760 SAS Internal Tape Drive |
EH919A |
HP DAT 320 SAS Internal Tape Drive |
AJ830A |
DAT 320 WW SAS External Tape Drive |
AJ828A |
NOTE: Please refer
to the "Tape and Disk-Based Backup" table in the Storage section
of this document for a list of SAS controllers with tape support. |
|
For an up-to-date listing
of the latest O/S and software support details for HP Ultrium tape drives,
please visit: https://www.hp.com/go/connect. |
|
HP StorageWorks 1/8 G2 Tape Autoloader |
|
HP StorageWorks 1/8 G2 LTO-4 Ultrium
1760 SAS Tape Autoloader |
AK377A |
HP StorageWorks 1/8 G2 LTO-3 Ultrium
920 SAS Autoloader |
AH558A |
HP StorageWorks 1/8 G2 Tape Autoloader
Rack Kit
NOTE: Required to install the 1/8
G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount
instructions. |
AH166A |
NOTE: Please reference
the Tape Autoloader QuickSpecs at: https://www.hp.com/go/automation
for additional information needed to create a complete solution. |
|
HP StorageWorks MSL2024 Tape Library |
|
HP StorageWorks MSL2024 1 LTO-4
Ultrium 1760 SAS Drive Library |
AK378A |
HP StorageWorks MSL2024 1 LTO-3
Ultrium 920 SAS Drive Library |
AH559A |
HP StorageWorks MSL4048 Tape Library |
|
HP StorageWorks MSL4048 2 LTO-4
Ultrium 1760 SAS Drive Library |
AK380A |
HP StorageWorks MSL4048 1 LTO-3
Ultrium 920 SAS Drive Library |
AH560A |
NOTE: Please reference
the MSL Tape Library QuickSpecs at: https://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at: https://www.hp.com/go/ebs. |
|
|
Disk-Based Backup |
RDX Removable Disk Backup |
|
HP StorageWorks RDX500 Internal
Removable Disk Backup System
NOTE: 500 GB of Disk Storage. |
AJ934A |
NOTE: Please
see the HP RDX Removable Disk Backup System QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html |
|
D2D Backup |
|
HP StorageWorks D2D2502i Backup
System
NOTE: 2 TB raw capacity/1.5 TB useable
capacity. |
EJ001A |
HP StorageWorks D2D2504i Backup
System
NOTE: 4 TB raw capacity/3 TB useable
capacity. |
EJ002A |
NOTE: Please see
the HP D2D Backup Systems QuickSpecs for additional information: https://www.hp.com/go/d2d. |
|
|
StorageWorks Options |
StorageWorks Fibre Channel HBAs
NOTE: The following is a list of
all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed
compatibility information please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html |
|
Brocade Fibre Channel HBAs |
|
HP StorageWorks 81B PCI-e FC HBA
Single Port |
AP769A |
HP StorageWorks 82B PCI-e FC HBA
Dual Port |
AP770A |
HP StorageWorks 41B 4Gb PCI-e
FC HBA |
AP767A |
HP StorageWorks 42B 4Gb Dual-Port
PCI-e FC HBA |
AP768A |
Emulex Fibre Channel HBAs |
|
HP StorageWorks 81E PCI-e FC HBA
Single Port |
AJ762A |
HP StorageWorks 82E PCI-e FC HBA
Dual Port |
AJ763A |
HP StorageWorks FC2142 4Gb PCI-e
HBA |
A8002A |
HP StorageWorks FC2242 Dual Channel
4Gb PCI-e HBA |
A8003A |
QLogic Fibre Channel HBAs |
|
HP StorageWorks 81Q PCI-e FC HBA
Single Port |
AK344A |
HP StorageWorks 82Q PCI-e FC HBA
Dual Port |
AJ764A |
HP StorageWorks FC1142 4Gb PCI-e
HBA |
AE311A |
HP StorageWorks FC1242 Dual Channel
4Gb PCI-e HBA |
AE312A |
StorageWorks SCSI HBA |
|
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI
Tape Library connect. |
AH627A |
|
Power Distribution
Units |
Monitored PDUs |
|
HP Monitored Power Distribution
Unit: Full Rack Version |
|
HP 17.3 kVA S2324 Monitored PDU-
dual input, 3Ø, 24A |
AF503A
|
HP 8.6 kVA S1324 Monitored PDU-
single input, 3Ø, 24A |
AF504A
|
HP 16.6 kVA S2140 Monitored PDU-
dual input, 1Ø, 40A |
AF505A
|
HP 8.3 S1140 Monitored PDU- single
input, 1Ø, 40A |
AF506A
|
HP 4.9 kVA S124 Monitored PDU-
single input, 1Ø, 24A |
AF914A
|
|
Modular PDUs 1U/0U
(Up to 32 outlets) |
NOTE: 1U/0U mounting
brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks). |
|
3.6kVA Model - mPDU, 16A, High |
|
2.8 kVA Model - mPDU, 24A, Low |
252663-D71
|
4.9kVA Model - mPDU, 24A, High |
252663-D72
|
8.3kVA Model - mPDU, 40A, High |
252663-B21
|
8.3kVA Model - mPDU, 40A, High
(power cord attached) |
252663-D73
|
8.3kVA Model - mPDU 40A, High
(core only) |
252663-D75
|
4.9kVA Model - mPDU 24A, High
(core only) |
252663-D74
|
NOTE: For additional
information on HP Power Distribution Units including accessories please
go to: www.hp.com/go/pdu |
|
|
HP Rack Series
|
HP Rack 5000 Series (Graphite
Metallic) |
|
HP 5642 Rack-Unassembled |
358254-B21 |
NOTE: Please see
the QuickSpecs for additional information:
https://h18000.www1.hp.com/products/quickspecs/12074_na/12074_na.html |
|
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic) |
|
HP S10614 (14U) Rack Cabinet -
Shock Pallet |
292302-B22 |
10642 G2 (42U) Rack Cabinet -
Pallet |
|
10642 G2 (42U) Rack Cabinet -
Shock Pallet |
|
10642 G2 (42U) Rack Cabinet -
Crated |
AF003A
|
10642 G2 (42U) Rack Cabinet, with
Extension - Shock Pallet |
|
10636 G2 (36U) Rack Cabinet -
Pallet |
|
10636 G2 (36U) Rack Cabinet -
Shock Pallet |
|
10636 G2 (36U) Rack Cabinet -
Crated |
|
10636 G2 (36U) Rack Cabinet, with
Extension - Shock Pallet |
|
10622 G2 (22U) Rack Cabinet -
Pallet |
AF021A
|
10622 G2 (22U) Rack Cabinet -
Shock Pallet |
AF022A
|
10642 G2 (42U) Rack Cabinet 1200mm
Deep - Shock Pallet |
AF034A |
10642 G2 (42U) Rack Cabinet 1200mm
Deep - Pallet |
AF038A |
10842 G2 (42U) 800mm Wide Rack
Cabinet - Pallet |
AF041A
|
10842 G2 (42U) 800mm Wide Rack
Cabinet - Shock Pallet |
AF042A
|
10647 G2 (47U) Rack Cabinet -
Pallet |
AF031A
|
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Shock Pallet
NOTE: Due to handling and shipping
requirements, AF044A is only orderable through HP Factory Express. It is
not for direct sales. Customer site surveys are required before an order
is approved. CTO orders may require additional lead time. |
AF044A |
10647 G2 (47U) Rack Cabinet 1200mm
Deep - Pallet |
AF045A |
NOTE: It is mandatory
to use a shock pallet when shipping racks with equipment installed.
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment
installed (by custom systems, VARs and Channels). |
|
NOTE: Please see
the Rack 10000 G2 QuickSpecs for Technical Specifications such as height,
width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html |
|
NOTE: For additional
information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower. |
|
|
HP Rack Options |
Keyboards and Monitors |
|
TFT7600 Rackmount Keyboard Monitor |
|
HP TAA TFT7600 Rkmntkybd 17in
Monitor |
AG067A |
1U Rackmount Keyboard with USB |
|
NOTE: For additional
information regarding Rack Options, please see the following URL: https://www.hp.com/go/rackandpower. |
|
HP KVM Switch Options |
|
2x1x16 IP Console Switch with
Virtual Media |
AF601A |
4x1x16 IP Console Switch with
Virtual Media |
AF602A |
2x16 Server Console Switch with
Virtual Media |
AF600A |
0x2x16 KVM Server Console G2 Switch
with Virtual Media and CAC |
AF618A |
0x2x32 KVM Server Console G2 Switch
with Virtual Media and CAC |
AF619A |
PS/2 Virtual Media Interface Adapter,
1 pack
NOTE: Requires PS/2 and one USB port
on server. |
AF604A |
1x1Ex8 KVM IP Console Switch G2
with Virtual Media and CAC |
AF620A |
2x1Ex16 KVM IP Console Switch
G2 with Virtual Media and CAC |
AF621A |
4x1Ex32 KVM IP Console Switch
G2 with Virtual Media and CAC |
AF622A |
Server console switch 0x2x8 |
AF616A |
Server console switch 0x2x16 |
AF617A |
HP TAA Server console switch 0x2x16 |
AF626A |
PS/2 Interface Adapter, 1 pack |
262588-B21 |
PS/2 Interface Adapter, 8 pack |
262587-B21 |
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: https://www.hp.com/go/kvm. |
|
HP 1x4 Console Switch |
AF611A |
PS2 Server Console Cable, 6 ft,
2 pack |
AF612A |
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
HP Serial Console Server Options |
|
HP 16 Port Serial Console Server |
AF101A |
HP 48 Port Serial Console Server |
AF102A |
Serial Adapter, RJ45-DB9 DCE Female,
1 Pack |
AF103A |
Serial Adapter, RJ45-DB9 DCE Female,
8 Pack |
AF110A |
NOTE: Cat5e cables
are required to connect Serial Adapters to Serial Console Servers. Additional
Serial Adapters and Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm. |
|
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
|
Rack Kits
| HP
ML350 G5 Tower to Rack Conversion Kit |
|
|
USB
and SD Options |
HP USB 2-Button Optical Scroll
Mouse (Carbonite/Silver) |
|
USB 1.44-MB External Diskette
Drive (Carbonite) |
DC141B
|
HP USB 04 Standard Keyboard |
DT528A# ABA
|
HP 1GB USB 2.0 Floppy Drive
Key |
442085-B21
|
|
Service and Support Offerings (HP Care Pack Services) | Hardware
Services On-site Service | |
NOTE: To attach
3 year, 4-Hour On-site Service to Smart Buy servers, Smart Buy Care Packs must
be used. For other service levels, order standard Care Pack part numbers. | |
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years (Electronic) |
U4512E |
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic) |
U4513E | NOTE:
Use one of the following Smart Buy Care Packs to attach 3 year, 4-Hour On-site
Service to Smart Buy servers. For other service levels, order standard Care Pack
part numbers. | |
ML350 Smart Buy 4-Hour On-site
Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic | UE901E |
ML350 Smart Buy 4-Hour On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic | UE902E |
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years (Electronic) |
U4514E | O/S
and Hardware Installation | |
Hardware Installation (Electronic) |
U4522E | Installation
& Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays. (Electronic) |
U4523E | Support
Plus | |
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays. (Electronic) |
U4524E | Support
Plus 24 | |
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr
response time incl. HP holidays, Electronic |
U4525E | Onsite
HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
U6308E | Onsite
HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite
at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic |
U8330E | NOTE:
For more information, customer/resellers can contact: https://www.hp.com/services/carepack | |
Memory
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models". |
HP ProLiant ML350 G5 Memory Configuration
The HP ProLiant ML350 G5 requires memory interleaving
when more than one DIMM is installed. For interleaving, DIMMs must be
configured in identical pairs. The system will not boot properly if multiple
DIMMs of varying density or type are installed in the system.
Standard Memory
All HP ProLiant ML350 G5 models ship with PC2-5300 Fully Buffered DIMMs
(DDR2-667).
Entry models include a single 512 MB DIMM (Dual-Core) or two 512 MB DIMMs
(Quad-Core).
Base models include two 512 MB DIMMs (1 GB total memory) or two 1 GB DIMMs
(2 GB total memory)
Factory Integrated Models include the memory capacity of your choice.
Common Memory Configuration
Valid DIMM pair combinations use slots 1/5, slots 2/6, slots 3/7, and
slots 4/8. Maximum supported memory is 16 GB for Dual-Core 5000 and 5100
series models and 32 GB on Quad-Core 5300 and 5400 series models.
NOTE: Chart does not represent
all possible memory configurations.
|
|
Memory
|
Slot |
|
1A |
2B |
3C |
4D |
5A |
6B |
7C |
8D |
Standard |
1 GB |
512 MB
|
Empty
|
Empty
|
Empty
|
512 MB
|
Empty
|
Empty
|
Empty
|
Optional |
13 GB |
512 MB
|
2 GB
|
2 GB
|
2 GB
|
512 MB
|
2 GB
|
2 GB
|
2 GB
|
Maximum |
32 GB |
4 GB
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
4 GB
|
Online spare memory configuration FBDIMMs can either be single-rank
or dual-rank. Certain FBDIMM configuration requirements are based on these classifications.
A dual-rank FBDIMM is similar to having two separate FBDIMMs, or ranks, on the
same module. Although only a single FBDIMM module, a dual-rank FBDIMM acts as
two separate FBDIMMs. In online spare mode, a single rank of memory acts
as the spare memory. For single-rank FBDIMMs, the entire FBDIMM acts as the spare
memory. For a dual-rank FBDIMM, only half of the FBDIMM acts as the spare memory
while the other half is available for operating system and application usage.
Online spare FBDIMM configuration requirements (in addition to general
configuration requirements): - When only bank A is being used,
it must be fully populated with dual-rank FBDIMMs.
- For optimum memory
usage, HP recommends all FBDIMMs be the same size with the same HP part number.
If different sized FBDIMMs are used, a portion of the installed memory may not
be utilized.
In online spare mode, FBDIMMs must be populated as specified
in the following table: - Configuration 1 (Bank A only) is only supported
if using bank A, populated with dual-rank FBDIMMs.
- After installing FBDIMMs,
use RBSU to configure the system for online spare memory support.
|
Bank A 1A and 5A |
Bank B 2B and 6B |
Bank C 3C and 7C |
Bank D 4D and 8D |
X | |
| |
X |
X | |
|
X | X |
X | X |
Storage
|
1 - 6
|
6 x 3.5" (LFF) Hot-Plug
SAS/SATA hard drive bays |
Or
|
|
1 - 8
|
8 x 2.5" (SFF) Hot-Plug
SAS/SATA hard drive bays |
A,B,C,D
|
Available half height media bays |
E
|
Optical Drive |
|
|
Drive Support
|
|
|
Quantity
Supported
|
Position
Supported
|
Controller
|
Removable Media
|
|
|
|
1.44-MB Diskette Drive |
Up to 1 |
A, B, C, D, E |
Integrated SATA Controller |
IDE (ATAPI) CD-ROM Drive |
Up to 1 |
A, B, C, D, E
|
Integrated SATA Controller |
HP DVD±R/RW 16X Half Height |
Up to 1 |
A, B, C, D, E |
Integrated SATA Controller |
DVD-ROM Drive Option Kit |
Up to 1 |
A, B, C, D, E |
Integrated SATA Controller |
HP Half-Height SATA DVD-ROM Optical
Drive |
Up to 1 |
A, B, C, D, E |
Integrated SATA Controller |
HP Half-Height SATA DVD RW Optical
Drive |
Up to 1 |
A, B, C, D, E |
Integrated SATA Controller |
|
ML350 G5 Hard Drives
NOTE: The components of a storage
subsystem (e.g. the drive, the HBA/controller, firmware, and the server
backplane) should operate at the same data transfer rate or the system bandwidth
will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty;
refer to the specific hard drive QuickSpecs for details. |
SAS Hot Plug SFF Enterprise
(ENT) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
300GB 6G SAS 10K DP
300GB 3G SAS 10K DP
146GB 6G SAS 15K DP 146GB 3G SAS 15K DP
146GB 6G SAS 10K DP
146GB 3G SAS 10K DP 72GB 6G SAS 15K DP
72GB 3G SAS 10K DP
72GB 3G SAS 15K DP |
Up to 8 SFF |
1-8 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SAS Hot Plug SFF Midline
(MDL) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
500GB 6G SAS 7.2K DP |
Up to 8 SFF |
1-8 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SAS Hot Plug 3.5"
Enterprise (ENT) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
400GB 3G SAS 10K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP |
Up to 6 LFF |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SAS Hot Plug SFF Midline
(MDL) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
500GB 6G SAS 7.2K DP |
Up to 8 |
1-8 |
HP Smart Array P800/512 BBWC
Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller |
|
SAS Hot Plug 3.5"
Midline (MDL) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP |
Up to 6 LFF |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SATA Hot Plug SFF Midline
(MDL) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K |
Up to 8 SFF |
1-8 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SATA Hot Plug SFF
Entry (ETY) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K |
Up to 8 |
1-8 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
NOTE:
HP Systems Insight Manager should not be used to view the status of SATA
hard drives and SATA RAID configurations. |
|
SATA Hot Plug 3.5"
Entry (ETY) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
160GB 3G SATA 7.2K |
Up to 6 |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SATA Hot Plug 3.5"
Midline (MDL) Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K |
Up to 6 |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
3.5 SATA
Hot Plug Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K |
Up to 6 |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SATA Hot Plug Midline
(MDL) Solid State Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD |
Up to 8 |
1-8 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
SATA Hot Plug 3.5"
Midline (MDL) Solid State Drives |
|
Quantity
Supported |
Position
Supported |
Controller |
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD |
Up to 6 |
1-6 |
HP Smart Array E200i/64MB Controller
HP Smart Array E200i/128 BBWC Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB BBWC Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller |
|
External Storage |
| Quantity
Supported | Position
Supported |
Host Controller or Adapter
|
20 Modular Smart
Array |
Up
to 2 | External | Smart
Array 6402/128 Controller Smart Array 6404/256 Controller | 50
Modular Smart Array | Up
to 2 Up to 4 Up to 4 | External | HP
Smart Array P600/256 BBWC Controller HP Smart Array P800 | 60
Modular Smart Array | Up
to 4 Up to 8 Up to 8 | External | HP
Smart Array P600/256 BBWC Controller HP Smart Array P800 Controller HP
Smart Array E500/256 BBWC Controller | 70
Modular Smart Array | Up
to 2 Up to 4 Up to 4 | External | HP
Smart Array P600/256 BBWC Controller HP Smart Array P800 Controller HP
Smart Array E500/256 BBWC Controller | HP
2000sa Modular Smart Array Controller | Up
to 4 | External | HP
SC08Ge Host Bus Adapter |
|
Tape
and Disk-Based Backup |
NOTE:
For a complete listing of compatible tape and disk-based backup offerings,
please visit: www.hp.com/go/connect. |
|
Position Supported |
Controller |
Part Number
|
Internal USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT 160 USB |
A,B,C,D | USB
2.0 Port | N/A |
| | | |
USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit |
External | USB
2.0 Port | N/A |
| | | |
SCSI Tape Drives, Internal
LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-3 Ultrium 920 LTO-4 Ultrium
1760 DAT 40 DAT 72 DAT 160 | A,B,C,D |
HP SC11Xe Host Bus
Adapter |
412911-B21 |
| | | |
SCSI Tape Drives, Internal
LTO-3 Ultrium 960 LTO-4 Ultrium 1840 | A+B
or C+D |
HP SC11Xe Host Bus
Adapter |
412911-B21 |
| | | |
SCSI Tape Drives, External
LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-3 Ultrium 960 LTO-3 Ultrium
920 LTO-4 Ultrium 1760 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160 1U
Rack-Mount Kit 3U Rack-Mount Kit | External |
HP SC11Xe Host Bus
Adapter |
412911-B21 |
| | | |
SAS Tape Drives, Internal
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS |
A,B,C,D | HP
SC44Ge Host Bus Adapter | 416096-B21 |
| | | |
SAS Tape Drives, Internal
LTO-4 Ultrium 1840 SAS | A+B
or C+D | HP SC44Ge
Host Bus Adapter | 416096-B21 |
| | | |
SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit |
External | HP
SC44Ge Host Bus Adapter |
| | | | |
SCSI Tape Automation,
External DAT 72x10 Autoloader 1/8 G2 Autoloader MSL2024 MSL4048
MSL8096 MSL6000 |
External |
HP SC11Xe Host Bus
Adapter |
| HP
U320e SCSI Host Bus Adapter NOTE: Recommended
for MSL tape libraries. | AH627A |
| | | |
SAS Tape Automation, External
1/8 G2 Autoloader MSL2024 MSL4048 | External | HP
SC44Ge Host Bus Adapter | 416096-B21 |
| | | |
HP StorageWorks Fibre Tape
Automation, External MSL2024 MSL4048 MSL8096 MSL6000 | External |
Please consult the
EBS connectivity matrix at: https://www.hp.com/go/ebs
for detailed connectivity information |
N/A | | | | | HP
StorageWorks RDX Removable Disk Backup System, Internal RDX160
RDX320
RDX500 |
A,B,C,D | USB
2.0 Port | N/A |
| | | |
HP StorageWorks D2D Backup
Systems
D2D120
D2D130
D2D2500i
D2D4000i |
External | Embedded
Network Controller | N/A |
Power Specifications
Part Number |
380622-001 |
Spare Kit |
403781-001 |
Operational Input Voltage Range
(Vrms) |
90 - 264 |
Frequency Range (Nominal) (Hz)
|
47 - 63 (50 / 60)
|
|
Nominal Input Voltage (Vrms)
|
100
|
120
|
208
|
220
|
230
|
240
|
Max Rated Output Wattage Rating |
800
|
950
|
1000
|
1000
|
1000
|
1000
|
Nominal Input Current (A rms) |
10.0
|
8.8
|
5.85
|
5.5
|
5.2
|
4.97
|
Max Rated Input Wattage Rating (Watts) |
980
|
1035
|
1193
|
1186
|
1172
|
1169
|
Max. Rated VA (Volt-Amp) |
1000
|
1056
|
1217
|
1210
|
1196
|
1193
|
Efficiency (%)
|
81.5
|
82
|
84
|
84
|
85
|
85.5
|
Power Factor
|
0.98
|
0.98
|
0.98
|
0.98
|
0.98
|
0.98
|
Leakage Current (mA)
|
0.44
|
0.52
|
0.91
|
0.96
|
1.00
|
1.04
|
Maximum Inrush Current (A peak)
|
30
|
30
|
30
|
30
|
30
|
30
|
Maximum Inrush Current duration (milliseconds)
|
3
|
3
|
3
|
3
|
3
|
3
|
NOTE: To review
typical system power ratings use the HP Power Advisor which is available
online located at url: www.hp.com/go/proliant-energy-efficient
or www.hp.com/go/hppoweradvisor
To drill down to calculators: - Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G5
- Click on: "Power Calculator"
link. (You may need to scroll down to see it) |
Quickspecs
System Unit | Tower Dimensions
(H x W x D) (with feet/bezel) | 18.39
x 8.59 x 23.46 in (46.7 x 21.8 x 59.6 cm) |
Rack Dimensions (H x W x D) (with feet/bezel) | 8.54
x 17.5 x 21.9 in. (21.7 x 44.5 x 55.7cm) |
Tower Weight (approximate) |
Maximum (all hard drives, power supplies, and processors installed) | 67
lb (30.4 kg) | Minimum
(one hard drive, power supply, and processor installed) |
50 lb (22.7 kg) | Rack
Weight (approximate) | Maximum
(all hard drives, power supplies, and processors installed) | 61
lb (27.7 kg) | Minimum
(one hard drive, power supply, and processor installed) |
44 lb (20.0 kg) | Max
Input Requirements (per power supply) | Rated
Line Voltage | 100 VAC, 120 VAC
200 - 240 VAC | Rated
Input Current | 10A (at 100 VAC)
9A (at 120 VAC) 6.1A (at 200 VAC) | Rated
Input Frequency | 50 to 60 Hz |
Rated Input Power | 980W
(at 100 VAC) 1035W (at 120 VAC) 1170W (at 240 VAC) | BTU
Rating | BTU/HR | 3350
BTU/hr (at 100 VAC) 3530 BTU/hr (at 120 VAC) 3990 BTU/hr (at 240 VAC) |
Power Specifications
|
NOTE:
To review typical system power ratings use the HP Power Advisor which is
available online located at url:
www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
- Click on the system of interest. Example:
ML350 G5
- Follow the instructions of the next screens.
|
Power Supply Output
(per power supply) | Rated Steady-State
Power | 800 W (at 100
VAC) 850 W (at 120 VAC) 1000 W (at 200-240 VAC) | Maximum
Peak Power | 800 W (at 100 VAC)
850 W (at 120 VAC) 1000 W (at 200-240 VAC) |
System Inlet Temperature | Operating | 10°
to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C
per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of
3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the type and number of options
installed. System performance may be reduced if operating with a fan fault
or above 30°C (86°F). | Non-operating | -30°
to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
| Relative
Humidity (non-condensing) | Operating | 10
to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature,
non-condensing. | Non-operating | 5
to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature,
non-condensing. | Altitude | Operating | 3050
m (10,000 ft). This value may be limited by the type and number of options installed.
Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
Non-operating | 9144
m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
Acoustic Noise | Listed
are the declared A-Weighted sound power levels (LWAd) and declared average bystander
position A-Weighted sound pressure levels (LpAm) when the product is operating
in a 23°C ambient environment. Noise emissions were measured in accordance
with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). |
Idle | |
L
WAd | 5.2 B |
L pAm | 35
dBA | Operating | |
L
WAd | 5.3 B |
L pAm | 35
dBA | Emissions
Classification (EMC) | FCC
Rating | Class B | Normative
Standards | CISPR 22; EN55022; EN55024;
FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;
EN 60950-1; IEC 60950-1 | NOTE:
Product conformance to cited product specifications is based on sample (type)
testing, evaluation, or assessment. This product or family of products is eligible
to bear the appropriate compliance logos and statements. |
|
Smart Array E200i Controller |
Disk Drive and Enclosure
Interface
|
3G SAS (Serial Attached SCSI) |
1.5G SATA (Serial Advanced Technology
Attachment) |
SAS Connectors
|
2 internal (SFF8484) x4 wide port
connectors |
Cache Memory Speed
|
DDR-1/266 MHz provides up to 4.2
GB/s maximum bandwidth. |
Server Interface
|
x4 2.5G PCIe provides 2GB/s maximum
bandwidth. |
SAS Speed
|
x8 3G SAS provides 2.4GB/s maximum
bandwidth. |
Cache Memory
|
40-bit 64MB ECC read cache or
40-bit 128MB ECC battery backed, transportable read/write cache |
Logical Volumes Supported
|
Up to 32 logical volumes |
Maximum Volume Capacity
|
4.5TB (6 x 750GB SATA) |
Host Memory Addressing
|
64-bit, supporting greater than
4GB server memory space |
RAID Support |
RAID 5 (Distributed Data Guarding)
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping) |
Upgradeable Firmware |
Upgradeable Firmware |
|
Embedded NC373i Multifunction Gigabit Server Adapter | Network
Interface | 10Base-T/100Base-TX/1000Base-TX |
Compatibility | IEEE
802.3 10Base-T | IEEE
802.3ab 1000Base-T | IEEE
802.3u 100Base-TX | Data
Transfer Method | PCI
Express, four lanes (x4) | Network
Transfer Rate | 10Base-T (Half-Duplex)
| 10 Mb/s | 10Base-T
(Full-Duplex) | 20 Mb/s |
100Base-TX (Half-Duplex) | 100
Mb/s | 100Base-TX (Full-Duplex) | 200
Mb/s | 1000Base-TX (Half
and Full-Duplex) | 2000Mb/s |
Connector | RJ-45 |
Cable Support | 10Base-T | Categories
3, 4 or 5 UTP; up to 328 ft (100 m) | 10/100/1000Base-TX | Category
5 UTP; up to 328 ft (100 m) |
|
Environment-friendly Products and Approach | End-of-life
Management and Recycling |
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green.
To recycle your product, please go to: https://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner. The EU WEEE directive
(2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment. |
|
|
