 HPE  Proliant ML350 G3 QuickSpecs Flag US QuickSpecs
Folder-Closed ML350 G3 HDD SSD Folder-Closed ML350 G3 Processors Folder-Closed ML350 G3 Memory
Folder-Closed ML350 G3 Controllers Folder-Closed ML350 G3 Networking Folder-Closed ML350 G3 Power
Folder-Closed ML350 G3 Quickspecs Folder-Closed ML350 G3 Quickspecs Folder-Closed ML350 G3 Options New  Refurb
contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Proliant ML350 G3 Overview

HP ProLiant ML350 Generation 3 (G3)

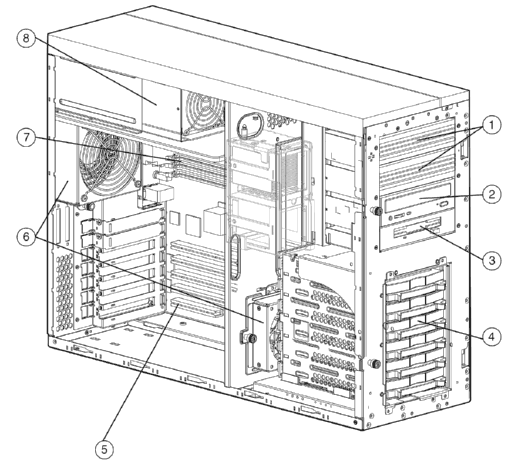

  Proliant ML350 G3 Server Image
1. Two Removable Media Bays
2. 48X Max IDE (ATAPI) CD-ROM Drive
3. 1.44 Diskette Drive
4. Six 1” Hot Plug Drive Bays
5. Five expansion slots(four 64-bit/100-MHz PCI-X, one 32-bit/33-MHz PCI)
6. System fan
7. Four DIMM sockets for up to 8GB of memory, optionally interleaved
8. Optional 2nd Power Supply for hot-pluggable 1+1 redundancy

At A Glance

  • The ProLiant ML350 G3 is an expandable rack or tower platform delivering affordable 2-way performance and essential availability to corporate workgroups and growing businesses
  • Intel Xeon 3.06GHz processors (dual processor capability) with 512-KB level 2 cache standard (full speed) or 2.8 GHz with 1-MB level 3 cache and Hyper-Threading Technology
  • ServerWorks Grand Champion LE Chipset
  • Up to 533-MHz Front Side Bus (model dependent)
  • Integrated Dual Channel Wide Ultra3 SCSI Adapter
  • Smart Array 641 (standard in Array Models only)
  • NC7760 PCI Gigabit Server Adapter (embedded)
  • Up to 1 GB of 2-way interleaving capable PC2100 DDR SDRAM, with Advanced ECC capabilities (Expandable to 8GB)
  • Flexible memory configurations allow interleaving (2x1) or non-interleaving
  • Five expansion slots: four 64-bit/100-MHz PCI-X, one 32-bit/33-MHz PCI
  • Two USB ports
  • Standard 6 x 1” Wide Ultra320 ready Hot Plug Drive Cage
  • Internal storage capacity of up to 1.80 TB (6 x 300 GB 1"), 2.40 TB (2 x 300 GB 1" + 6 x 300 GB 1") with optional 2-bay hot plug drive cage option
  • 500W Hot-Pluggable Power Supply (standard) and an optional 500W Hot-Pluggable Redundant Power Supply (1+ 1) available
  • Tool-free entry to chassis and access to components
  • ROM based setup utility (RBSU) support and, redundant ROM
  • Insight Manager, SmartStart, and Automatic Server Recovery (ASR-2)
  • Protected by HP Services, including a three-year, next business day, on-site, limited global warranty and extended Pre-Failure Warranty.
contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on Model
Intel Xeon Processor 2.8 GHz/533-1MB
Intel Xeon Processor 3.06 GHz/533-512KB

Cache Memory Integrated 512-KB Level 2 cache (full speed)

Upgradeability Upgradeable to dual processing

Chipset
ServerWorks Grand Champion LE Chipset with 400-MHz or 533-MHz Front Side Bus (model dependent)

NOTE: For more information regarding ServerWorks, please see the following URL:
https://www.serverworks.com/products/overview.html.


ML350 G3 Memory
One of the following depending on model
2-way interleaving capable PC2100 DDR SDRAM running at 200MHz on 400MHz models or 266MHz on 533MHz models with Advanced ECC capabilities
Standard (Non-Array Models) 512 MB
Standard (Array Models) 1 GB
Maximum 8 GB

Network Controller NC7760 Gigabit Server Adapter (embedded)

Expansion Slots I/O (5 Total, 5 Available)   PCI Voltage:

64-bit/100MHz, PCI

4 (4 available)
(Array model has 3 available)
3.3 Volt or universal cards

32-bit/33MHz, PCI

1 (1 available) 5 Volt or universal cards

Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
  Smart Array 641 Controller (Standard in Array Models with 2.8 GHz or greater processors only)

Storage Diskette Drives 1.44 MB
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Hard Drives None
Maximum Internal Storage 2.40 TB GB (6 x 300 GB 1" with standard internal hot plug drive cage + (2 x 300 GB 1") with optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
External Storage Two external SCSI knockouts available, optional ProLiant ML350 Internal to External SCSI Cable Option Kit required for external connections
  • HD68 Internal to External SCSI Cable Option Kit PN 159547-B22
  • VHDCI Internal to External SCSI Cable Option Kit PN 333370-B21

InterfacesParallel1
 Serial1
Pointing Device (Mouse)1
Graphics1
Keyboard1
Network RJ-45 1
USB2
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
External SCSI knockouts2

Graphics Integrated ATI RAGE XL Video Controller with 8-MB SDRAM Video Memory

Form Factor Tower or rack (5U)
  NOTE: Rack models (and rack conversion kit) support:
  • Square hole racks from 27”- 32” deep (including Compaq/HP 7000, 9000, 10000 and H9 series)
  • Square or round hole racks, from 24”- 35” deep (including HP Rack System /E and HP Systems, with an adjustment)
  • Telco racks with 3rd part option kit from Rack Solutions
https://www.racksolutions.com/hp/index.html

ProLiant Essentials Foundation Pack Software
HP Systems Insight Manager
HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance and reduce system maintenance costs by providing proactive notification of problems before those problems result in unplanned downtime or reduced productivity. For more information on HP SIM visit https://www.hp.com/go/hpsim.
Management Agents The Management Agents provide direct, browser-based access to in-depth instrumentation built into HP servers, workstations, desktops, or portables, and send alerts to Systems Insight Manager or other enterprise management applications in case of subsystem or environmental failures. For additional information about the Management Agents and other management products from HP, visit https://www.hp.com/servers/manage.
SmartStart SmartStart simplifies server setup by providing a quick, easy way to deploy reliable and consistent server configurations. For more information, please visit the SmartStart Web site at https://www.hp.com/servers/manage.
Minimum SmartStart version supported: 6.1
Latest SmartStart version supported: 7.1
Subscriber's Choice Subscriber's Choice Driver and Support Alerts/Notifications is a web-based email subscription service that provides automatic delivery of software and driver change notifications for ProLiant products. Sign up at https://www.hp.com/go/subscriberschoice
and customize your profile to receive alerts on updates as they become available.
ROMPaq, support software, and configuration utilities The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options
Available in SmartStart or downloadable from the Software and Drivers download pages at https://www.hp.com/go/support.
Survey Utility and diagnostics utilities The most advanced configuration analysis, reporting and troubleshooting utilities used by HP at your fingertips
Available in SmartStart.
Optional ProLiant Essentials Value Packs Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs:
  • Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
  • Workload Management Pack – provides easier management of complex environments, improving overall server utilization and enabling Windows® 2000 customers for the first time to confidently deploy multiple applications on a single multiprocessor ProLiant Server.
  • Performance Management Pack – a performance management solution that identifies and explains hardware performance bottlenecks on ProLiant servers and attached options enabling users to better utilize their valuable resources.
  • Intelligent Networking Pack - detects and analyzes network bottlenecks or broken network linkages and steers traffic to the optimum route based on network conditions.
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Industry Standard Compliance ACPI V1.0B Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
PCI-X 1.0 Compliant
Novell Certified
Microsoft® Logo certifications
USB 1.1

Intelligent Manageability Insight Manager 7
HP Systems Insight Manager
Redundant ROM
System Firmware Update
ROMPaq
Remote Insight Lights-Out Edition II (optional)
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Drive Parameter Tracking (with Smart Array Controller)
Dynamic Sector Repairing (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory and hard drives)

Security Power-on password
Setup password
Diskette boot control
Parallel and serial interface control
Disk configuration lock
Power switch security

Server Power Cords Tower models ship standard with country specific, lowline NEMA power cords.
Rack models ship standard with an IEC cable. Rack models for some countries also include a NEMA cord.
Most redundant power supply options ship with country specific power cords with the exception of the IEC redundant power supply (P/N 283655-B21) which ships with an IEC cable only.

Power Supply 500 Watts, Power Factor Correction (PFC), Hot Plug 100 to 240 VAC Rated Input Voltage (Auto-sensing), CE Mark Compliant
Optional 2nd power supply for hot-pluggable 1 + 1 redundancy.

System Fans 2 fans ship standard, 2 fans total supported (does not include power supply fans)

Required CablingFor required cabling information, refer to the HP Web site at https://www.hp.com/servers/proliantML350.

OS Support Microsoft Windows Server 2003
Microsoft Small Business Servers 2003 and 2000
Microsoft Windows 2000 Server and Advanced Server
Microsoft Windows NT® Server 4.0 and Terminal Server 4.0
Novell NetWare
Novell NetWare Small Business Suite
SCO OpenServer
SCO OpenUnix® 8
SCO UnixWare®
IBM OS/2 Warp Server for e-business
LINUX (Red Hat, 2.1 Advanced Server, SuSE, SLES7, UnitedLinux 1.0)
  NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: https://www.hp.com/go/supportos.
NOTE: Optional hardware may be required to support some operating systems.
NOTE: For an up-to-date listing of the latest drivers available for the ProLiant ML350, please see: https://www.compaq.com/support/files/server/us/index.html.
NOTE: For a more complete and up-to-date information on Linux support, please visit HP Linux Web site at https://h18000.www1.hp.com/products/servers/linux/hpLinuxcert.html.
NOTE: For information on how to buy server operating systems from HP please visit the OS product site at: https://h18004.www1.hp.com/products/servers/software/OEM.html

Rack Airflow Requirements

Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

    • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
    • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: https://www5.hp.com/servers/proliantml350.

Installation of Server into Telco Racks Support for all 2-post Telco racks requires the use of the rack kit and an additional option kit from Rack Solutions. https://www.racksolutions.com/hp.

HP Factory Express Capabilities HP Factory Express gives you the flexibility to choose from a full menu of factory capabilities all in one manufacturing facility, in one process, with one touch giving you full control and access to HP's World class manufacturing facility anytime. This approach provides you the speed to deploy your IT needs, with total quality assurance, reliability, and predictability to lower your total cost of ownership by letting HP install, rack, and customize your software and hardware options for you.

Service and Support Three-year limited warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HP Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services.

NOTE: Limited warranty includes 3 year parts, 3 year labor, 3-year on-site support

Care Pack services provide a range of life cycle support options that let you choose the service levels that meet your business requirements, from basic to mission-critical.

A full range of HP Care Pack hardware and software services are available including:

  • Installation and start up
  • Education courses
  • Extended onsite hardware coverage hours from same business day 13 hours, 5 day to 24 hours, 7 days call window with options including 4-hour response or 6-hour Call To Repair
  • Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials and VMWare-based IT solutions helping to deliver high level of application availability. Response times range from 30 mins for critical problems to 2 hours.
  • System Management, Performance Services and Mission Critical Support Solution

HP Care Pack Services include HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3KVA. 22" and smaller external monitors will be covered at the same service level and coverage period as the server. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

NOTE: For more information on HP Care Pack services, contact any of our worldwide sales offices or resellers or visit our worldwide Web site on the internet at: https://www.hp.com/hps/carepack

NOTE: For more complete information on HP Services offerings, customers and resellers, please visit us at: https://www.hp.com/hps

NOTE: Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Models

ML350T03 X2.8-1MB/533, 512 MB
359211-001
Processor(s) (1) Intel Xeon 2.8 GHz Processor (up to 2 supported)
Cache Memory Integrated 1MB Level 3 cache and 512KB Level 2 cache per processor
Memory 512 MB (1 x 512MB DIMM)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower

ML350R03 X2.8-1MB/533, 512 MB
359212-001
Processor(s) (1) Intel Xeon 2.8 GHz Processor (up to 2 supported)
Cache Memory Integrated 1MB Level 3 cache and 512KB Level 2 cache per processor
Memory 512 MB (1 x 512MB DIMM)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)

ML350T03 X2.8-1MB/533, 1 GB Array
359349-001
Processor(s) (1) Intel Xeon 2.8 GHz Processor (up to 2 supported)
Cache Memory Integrated 1MB Level 3 cache and 512KB Level 2 cache per processor
Memory 1 GB (2 x 512MB DIMMs)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
RAID Controller Smart Array 641
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower

ML350R03 X2.8-1MB/533, 1 GB Array
359351-001
Processor(s) (1) Intel Xeon 2.8 GHz Processor (up to 2 supported)
Cache Memory Integrated 1MB Level 3 cache and 512KB Level 2 cache per processor
Memory 1 GB (2 x 512MB DIMMs)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
RAID Controller Smart Array 641
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)

ML350T03 X3.06-512KB/533, 512 MB
333373-001
Processor(s) (1) Intel Xeon 3.06 GHz Processor (up to 2 supported)
Cache Memory Integrated 512-KB Level 2 cache per processor
Memory 512 MB (1 x 512MB DIMM)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower

ML350R03 X3.06-512KB/533, 512 MB
333374-001

Processor(s) (1) Intel Xeon 3.06 GHz Processor (up to 2 supported)
Cache Memory Integrated 512-KB Level 2 cache per processor
Memory 512 MB (1 x 512MB DIMM)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)

ML350T03 X3.06-512KB/533, 1 GB Array
333371-001


Processor(s) (1) Intel Xeon 3.06 GHz Processor (up to 2 supported)
Cache Memory Integrated 512-KB Level 2 cache per processor
Memory 1 GB (2 x 512MB DIMMs)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
RAID Controller Smart Array 641
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Tower (5U)

ML350R03 X3.06-512KB/533, 1 GB Array
333372-001
Processor(s) (1) Intel Xeon 3.06 GHz Processor (up to 2 supported)
Cache Memory Integrated 512-KB Level 2 cache per processor
Memory 1 GB (2 x 512MB DIMMs)
Network Controller NC7760 PCI Gigabit Server Adapter (Integrated/Embedded)
Storage Controller Integrated Dual Channel Wide Ultra3 SCSI Adapter
RAID Controller Smart Array 641
Hard Drive None ship standard
Internal Storage 2.40 TB maximum hot plug (with optional hard drives & drive cage)
Optical Drive 48x IDE (ATAPI) CD-ROM Drive
Diskette Drive 1.44 MB Diskette Drive
Form Factor Rack (5U)

contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Options

ProLiant ML350 G3 Unique Options Hot Plug Redundant Power Supply Option Kit
283655-001
Hot Plug Redundant Power Supply Option Kit (cable)
NOTE: PN 283655-B21 contains the redundant power supply with an IEC power cable. Purchase this kit only when connecting to a PDU or UPS that supports IEC cables. All other kits contain country specific power cables.
283655-B21
Intel Xeon 2.80 GHz-512KB Processor Option Kit
NOTE: The 2.8 GHz processor option kit (PN 314763-B21) supports ProLiant ML350 G3 systems with 533 MHz front side bus only. This kit cannot be used in 400 MHz front side bus systems such as those with 2.4 GHz, 2.2 GHz or 2.0 GHz processors.
314763-B21
Intel Xeon 2.40 GHz-512KB Processor Option Kit
NOTE: This processor option kit (PN 257913-B21) supports the ProLiant ML350 G3 servers.
257913-B21
ProLiant ML350 G3 Tower to Rack Conversion Kit
290683-B22

ProLiant Essentials
Value Pack Software
Rapid Deployment Pack, 1 User, V1.x
NOTE: This license allows 1 server to be managed and deployed via the Deployment Server.
267196-B21
Rapid Deployment Pack, 10 Users, V1.x
NOTE: This license allows 10 servers to be managed and deployed via the Deployment Server.
269817-B21
Flexible Quantity License Kit
302127-B21
License-Only - for use with a Master License Agreement
302128-B21
ProLiant Essentials Workload Management Pack 2.0 (Featuring Compaq Resource Partitioning Manager version 2.0)
Performance Management Pack, single server
NOTE: This license allows 1 server to be managed by Performance Management Pack.
306696-B21
ProLiant Essentials Performance Management Pack, 10 Pack Server License
374055-B21
Performance Management Pack, flexible license kit
NOTE: A single pack is shipped with a single license key for the total number of licenses ordered
306697-B21
ProLiant Essentials Intelligent Networking Pack, 1 License
372906-B21
ProLiant Essentials Intelligent Networking Pack Flex License
372950-B21
ProLiant Essentials Intelligent Networking Pack Track License
372951-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials Vulnerability and Patch Management Pack, 10-Server License
377529-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking license for new servers
371647-B21
ProLiant Essentials Vulnerability and Patch Management Pack, Tracking license for installed servers
378372-B21
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to https://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software, please see the following URL: https://www.hp.com/servers/proliantessentials.

Processors Intel Xeon 2.8 GHz-1MB Processor Option Kit
NOTE: The 2.8 GHz-1MB processor option kit (PN 352567-B21) supports ProLiant ML350 G3 systems with 533 MHz front side bus only. This kit cannot be used in 400 MHz front side bus systems such as those with 2.4 GHz, 2.2 GHz or 2.0 GHz processors.
352567-B21
Intel Xeon 3.06 GHz-512KB Processor Option Kit
NOTE: The 3.06 GHz processor option kit (PN 257916-B21) supports ProLiant ML350 G3 systems with 533 MHz front side bus only. This kit cannot be used in 400 MHz front side bus systems such as those with 2.4 GHz, 2.2 GHz or 2.0 GHz processors.
257916-B21
Intel Xeon 2.8 GHz-512KB Processor Option Kit
NOTE: The 2.8 GHz processor option kit (PN 314763-B21) supports ProLiant ML350 G3 systems with 533 MHz front side bus only. This kit cannot be used in 400 MHz front side bus systems such as those with 2.4 GHz, 2.2 GHz or 2.0 GHz processors.
314763-B21
Intel Xeon 2.4 GHz-512KB Processor Option Kit
NOTE: This processor option kit supports ProLiant ML350/ML370/DL380 G3 servers with 400 MHz front side bus only. This kit (PN 257913-B21) cannot be used in 533 MHz front side bus systems such as the 2.8 GHz systems.
257913-B21

Memory (DIMMs)

NOTE: The ML350 G3 supports both interleaved and non-interleaved memory configurations. For best performance automatically invoke interleaving by populating memory in identical pairs. If 1GB of total memory is desired add one 512 MB DIMM to the base configuration. Interleaving and installation of memory in pairs is not required. Add any combination of memory DIMMs below to operate in non-interleaved mode.
NOTE: Each SDRAM Memory kit contains one (1) DIMM.

128 MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
256 MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
512 MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
1024 MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
2048 MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 2048 MB)

Internal Storage

ML3xx Two Bay Hot Plug SCSI Drive Cage
NOTE: The drive cage option kit (PN 244059-B21 244059-B21) has one 1” drive bay and one 1.6” drive bay. It installs in two removable media bays.

Optical Drives

CD-RW/DVD-ROM Combo Drive Option Kit
NOTE: The DVD-ROM drive is supported in the CD-ROM bay and in the removable media bay. If placed in the removable media bay, it requires the 2-Device IDE cable (PN 305381-B21).
  DVD-ROM Drive Option Kit 217053-B21 217053-B21

ML350 G3 Hard Drives Ultra320 – Universal Hot Plug
300-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 10,000 rpm U320 Universal Hard Drive (1")
72.8-GB 10,000 rpm U320 Universal Hard Drive (1")
146.8-GB 15,000 rpm U320 Universal Hard Drive (1")
72.8-GB 15,000 rpm U320 Universal Hard Drive (1")
36.4-GB 15,000 rpm U320 Universal Hard Drive (1")
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE: Please see the Wide Ultra320 Universal Hot Plug QuickSpecs for additional technical information on the hard drives Support details, please see the following:
https://h18000.www1.hp.com/products/quickspecs/11531_na/11531_na.HTML


Storage Controllers Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
Smart Array 642 Controller
128-MB Cache Module for Smart Array 5302 Controller
256-MB Battery Backed Cache Module
NOTE: This 256-MB Battery Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
128MB Battery-Backed Cache Enabler
NOTE: This 128MB BBWC supports the Smart Array 641 Controller and Smart Array 642 Controller.
256MB DDR, Battery-Backed Cache Upgrade Kit for SA-6400
NOTE: This 256-MB DDR, Battery-Backed Cache upgrade kit supports the Smart Array 6400 series controller only.
Ultra320 Expansion Module for SA-6402

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter

NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels, SCSI Ports, Drives supported, Cache, RAID support, and additional information:
https://h18000.www1.hp.com/products/quickspecs/10640_na/10640_na.HTML
(Smart Array 5300 Series)
https://h18000.www1.hp.com/products/quickspecs/11587_na/11587_na.HTML
(Smart Array 6400 Series)
https://h18000.www1.hp.com/products/quickspecs/12067_na/12067_na.HTML (Smart Array 641)
https://h18000.www1.hp.com/products/quickspecs/12069_na/12069_na.HTML (Smart Array 642)
https://h18000.www1.hp.com/products/quickspecs/10429_na/10429_na.HTML
(SCSI Adapter)
https://h18000.www1.hp.com/products/quickspecs/11555_na/11555_na.HTML
(U320 Adapter)

Communications

NC1020 Cu Gigabit Server Adapter 32 PCI Single Port

  NC6170 Dual Port PCI-X 1000SX Gigabit Server Adapter
  NC6770 PCI-X Gigabit Server Adapter, 1000-SX
  NC7170 Dual Port PCI-X 1000T Gigabit Server Adapter
  NC7771 PCI-X 10/100/1000-T Server Adapter
  Agere PCI V.92 56K Worldwide Controller less Win Modem
NOTE: RJ11 modem adapter is not included.
DC131B
  NOTE: NC61XX, NC71XX or NC77XX NIC can be used for redundancy with the embedded NC7760 Network Controller.

Management Options

Remote Insight Lights-Out Edition II

227251-001 227251-001


Security

HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers

524545-B21 524545-B21


Tape Drives

NOTE: In order to install certain tape drives internally, you may need to remove the rails that come standard on the drives and then re-insert the screws in the mounting holes. Mounting screws are shipped standard with server.
NOTE: External tape devices, including both tape drives and tape arrays/enclosures, can be directly connected to the embedded SCSI controller through the SCSI knockout at the back of the server using an optional Internal-to-External SCSI cable. These cables are available in both HD68 and VHDCI.
Review the server cabling matrix for additional information on cables required to connect backup products to the server.

Internal, External, and Rack-Mount Ultrium Tape Drives
HP StorageWorks Ultrium 215 Tape Drive, Internal (Carbon)
Q1543A
HP StorageWorks Ultrium 215 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 215 rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 215 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 230 Tape Drive, Internal (Carbon)
HP StorageWorks Ultrium 230 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 230, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 230 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 460 Tape Drive, Internal (Carbon)
HP StorageWorks Ultrium 460 Tape Drive, External (Carbon)
HP StorageWorks Ultrium 460, Rack-mount (Carbon) - Single drive installed in a 3U rack-mount kit
HP StorageWorks Ultrium 460 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks Ultrium 960 Tape Drive, Internal (Carbonite)
HP StorageWorks Ultrium 960 Tape Drive, External (Carbonite)
HP StorageWorks Ultrium 960 Rack-mount (Carbonite) - Single drive installed in a 3U rack-mount kit

NOTE: Please see the HP StorageWorks Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:
https://h18006.www1.hp.com/products/quickspecs/11739_na/11739_na.html
https://h18006.www1.hp.com/products/quickspecs/12128_na/12128_na.html


For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect
Internal, External, Hot-Plug, and Rack-Mount DAT Drives

NOTE: Use of a hot plug tape drives requires installation of the optional two-bay SCSI drive cage.

HP StorageWorks DAT 72 Tape Drive, External (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 72 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 72 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
HP StorageWorks DAT 40 Tape Drive, External (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal (Carbon)
HP StorageWorks DAT 40 Tape Drive, Internal Hot-Plug (Carbon)
HP StorageWorks DAT 40 Array Module (Carbon) - Offline hot-swap drive for Tape Array 5300
NOTE: Please see the DAT Tape Drive QuickSpecs for controllers, media, and other options:
https://h18000.www1.hp.com/products/quickspecs/11883_na/11883_na.HTML
For an up-to-date listing of the latest O/S and software support details for HP DAT drives, please visit: https://www.hp.com/go/connect


Internal and External DLT VS Tape Drives

HP StorageWorks DLT VS80 Tape Drive, Internal (Carbon)
HP StorageWorks DLT VS80 Tape Drive, External (Carbon)
NOTE: Please see the DLT VS80 Tape Drive QuickSpecs for additional options such as host bus adapters, controllers, media, and other options:
https://h18006.www1.hp.com/products/quickspecs/11403_na/11403_na.HTML
For an up-to-date listing of the latest O/S and software support details for the DLT VS80, please visit: https://www.hp.com/go/connect

Internal, External and Rack-mount SDLT Tape Drives
HP StorageWorks SDLT 320 Tape Drive, Internal (Carbon)
HP StorageWorks SDLT 320 Tape Drive, External (Carbon)
NOTE: Please see the SDLT 320 Tape Drive QuickSpecs for additional options such as adapters, controllers, and media.
https://h18006.www1.hp.com/products/quickspecs/11840_na/11840_na.HTML
For an up-to-date listing of the latest O/S and software support details for HP SDLT tape drives, please visit: https://www.hp.com/go/connect


Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U Rack-Mount Kit
NOTE: The 1U Rack-mount Kit can support up to 2 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72, DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount Kit
NOTE: The 3U Rack-Mount Kit can support up to 2 full-height or 4 half-height tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT, DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape Drives.
HP StorageWorks 5U Rack-Mount Kit
NOTE: The 5U Rack-Mount Kit can support up to 4 full-height tape drives and is compatible with SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
274339-B21
NOTE: Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:
https://h18000.www1.hp.com/products/quickspecs/10854_na/10854_na.HTML
HP StorageWorks Tape Array 5300
NOTE: The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height or 4 half-height hot-swap array modules, including DAT and Ultrium tape drives. Cables and terminators are not included and must be ordered separately.
NOTE: Please see the Tape Array 5300 QuickSpecs for additional information regarding this product.
https://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.HTML
Accessories for 3U & 5U Rack-mount Tape Drive Kits
LVD Cable Kit, VHDCI/HD68
NOTE: For use with the 3U Rack-mount Kit and 5U Rack-mount Kit only.
LVD Cable Kit, HD68/HD68
NOTE: For use with the 3U Rack-mount Kit and 5U Rack-mount Kit only.
Accessories for 3U & 5U Rack-mount Tape Drive Kits
PSU/Fan Upgrade Kit - Redundant hot-swap power supply unit and fan for Tape Array 5300.
68-pin HD multi-mode terminator
1.0m 68-pin VHDCI to 68-pin HD cable
2.5m 68-pin VHDCI to 68-pin HD cable
5.0m 68-pin VHDCI to 68-pin HD cable
10.0m 68-pin VHDCI to 68-pin HD cable
0.5m 68-pin HDI to 68-pin HD cable LVD/SE
1.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2979B
0.9m 68-pin HDI to 68-pin HD cable LVD/SE
C2911C
2.5m 68-pin HDI to 68-pin HD cable LVD/SE
C2924C
NOTE: For use with Tape Array 5300 only

Tape Autoloaders
DAT Autoloader

HP StorageWorks DAT 72x6 Internal Autoloader Q1566A Q1566A
HP StorageWorks DAT 72x6 External Autoloader Q1567A Q1567A
NOTE: Please see the DAT Tape Autoloader QuickSpecs for additional options such as host bus adapters, controllers and media:
https://h18000.www1.hp.com/products/quickspecs/11985_na/11985_na.HTML

HP StorageWorks 1/8 Tape Autoloader
1/8 Ultrium 460 Tape Autoloader, Tabletop AA927A
1/8 SDLT 320 Tape Autoloader, Tabletop AA926A
1/8 Ultrium 230 Tape Autoloader, Tabletop
C9572CB C9572CB
1/8 DLT VS80 Tape Autoloader, Tabletop C9264CB C9264CB
1/8 Tape Autoloader Rackmount Kit C9268R C9268R
NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

HP StorageWorks SSL1016 Tape Autoloader

SSL1016 Ultrium 460 Tape Autoloader 330821-B21
SSL1016 SDLT 320 Tape Autoloader
330816-B21
NOTE: Please reference the SSL1016 Tape Autoloader QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/


Tape Libraries

HP StorageWorks MSL6000 Tape Library

MSL6030, 1 drive, 30 slots, Ultrium 460, RM
330731-B22 330731-B22
MSL6030, 2 drive, 30 slots, Ultrium 460, RM
330731-B23 330731-B23
MSL6030, 1 drive, 30 slots, Ultrium 460, RM with embedded FC router
330731-B24 330731-B24
MSL6030, 2 drive, 30 slots, Ultrium 460, RM with embedded FC router
330731-B25 330731-B25
MSL6030, 1 drive, 30 slots, Ultrium 460, TT
330788-B21
MSL6030, 2 drive, 30 slots, Ultrium 460, TT
330788-B22
MSL6060, 2 drive, 60 slot, Ultrium 460, RM
331196-B21 331196-B21
MSL6060, 2 drive, 60 slot, Ultrium 460, RM with embedded FC router 331196-B22 331196-B22
MSL6060, 2 drive, 60 slot, Ultrium 460, TT 331195-B21
NOTE: Please reference the MSL6000 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks MSL5026S2 Tape Library

MSL5026S2, 1 drive, 26 slots, SDLT 320, RM
293472-B22 293472-B22
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM
293472-B23 293472-B23
MSL5026S2, 1 drive, 26 slots, SDLT 320, RM with embedded FC router
293472-B24 293472-B24
MSL5026S2, 2 drive, 26 slots, SDLT 320, RM with embedded FC router
293472-B25 293472-B25
MSL5026S2, 1 drive, 26 slots, SDLT 320, TT
293473-B21 293473-B21
MSL5026S2, 2 drive, 26 slots, SDLT 320, TT
293473-B22 293473-B22
NOTE: Please reference the MSL5026S2 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks MSL5052S2 Tape Library

MSL5052S2, 2 drive, 52 slots, SDLT 320, RM
293474-B21 293474-B21
MSL5052S2, 2 drive, 52 slots, SDLT 320, RM with embedded FC router
293474-B24 293474-B24
MSL5052S2, 2 drive, 52 slots, SDLT 320, TT
293476-B21
NOTE: Please reference the MSL5052S2 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks MSL5030 Tape Library

MSL5030, 1 drive, 30 slots, Ultrium 230, RM
301897-B22 301897-B22
MSL5030, 2 drive, 30 slots, Ultrium 230, RM
301897-B23 301897-B23
MSL5030, 1 drive, 30 slots, Ultrium 230, RM with embedded FC router
301897-B24 301897-B24
MSL5030, 2 drive, 30 slots, Ultrium 230, RM with embedded FC router
301897-B25 301897-B25
MSL5030, 1 drive, 30 slots, Ultrium 230, TT
301898-B21 301898-B21
MSL5030, 2 drive, 30 slots, Ultrium 230, TT
301898-B22 301898-B22
NOTE: Please reference the MSL5030 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks MSL5060 Tape Library
MSL5060, 2 drive, 60 slots, Ultrium 230, RM 301899-B22 301899-B22
MSL5060, 2 drive, 60 slots, Ultrium 230, RM with embedded FC router 301899-B23 301899-B23
MSL5060, 2 drive, 60 slots, Ultrium 230, TT 301900-B21 301900-B21
NOTE: Please reference the MSL5060 Tape Library QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks ESL E-Series Tape Libraries

ESL Extended 712e Tape Library, 0 drive, 712 LTO slots AA934B AA934B
ESL Extended 630e Tape Library, 0 drive, 630 SDLT slots AA935B AA935B
ESL Extended 322e Tape Library, 0 drive, 322 LTO slots AA939B AA939B
ESL Extended 286e Tape Library, 0 drive, 286 SDLT slots AA940B AA940B
ESL E-Series Ultrium 460 drive kit AA937A AA937A
ESL E-Series Ultrium 460-FC drive kit AA941A AA941A
ESL E-Series SDLT 320 drive kit AA936A AA936A
ESL E-Series e2400-FC 2G Interface Controller AA928A AA928A
NOTE: Please reference the ESL E-Series Tape Libraries QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs
HP StorageWorks ESL9000 Series Tape Libraries

ESL9595 Extended Tape Library, 0 drive, 400 slots (card cage, Interface Mgr card, Command View license)
343378-B21
ESL9322 Extended Tape Library, 0 drive, 222 slots (card cage, Interface Mgr card, Command View license)
343377-B21
ESL9000 Ultrium 460 drive kit 330834-B21
ESL9000 Ultrium 230 drive kit
301930-B21 301930-B21
ESL9000 SDLT 320 drive kit
293414-B21 293414-B21
NOTE: Please reference the ESL9000 Series Tape Libraries QuickSpecs at https://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at https://www.hp.com/go/ebs

Magneto-Optical Jukeboxes

HP StorageWorks 9.1 GB Entry-level Optical Storage
220mx, 1 drive, 24 slot jukebox C1118M
220mx, 2 drive, 24 slot jukebox C1119M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution
HP StorageWorks 9.1 GB Mid-range Jukeboxes
300mx, 2 drive, 32 slot jukebox
C1150M
600mx, 4 drive, 64 slot jukebox
C1160M
700mx, 2 drive, 76 slot jukebox
C1170M
NOTE: Please reference the Magneto-Optical Jukebox data sheets at https://www.hp.com/go/optical for additional information needed to create a complete solution
Ultra Density Optical Jukeboxes
700ux, 1 drive, 24 slot jukebox AA962A
700ux, 2 drive, 24 slot jukebox AA963A
1100ux, 2 drive, 38 slot jukebox AA964A
1000ux, 2 drive, 32 slot jukebox AA965A
1900ux, 4 drive, 64 slot jukebox AA966A
1900ux, 4 mixed drive, 64 slot jukebox AA968A
2300ux, 2 drive, 76 slot jukebox AA967A
NOTE: Please reference the Ultra Density Optical Jukebox QuickSpecs at https://www.hp.com/go/optical for additional information needed to create a complete solution

HP StorageWorks Modular Smart Array 500

HP StorageWorks Modular Smart Array 500 Generation 2
335880-B21
NOTE: Please see the Modular Smart Array 500 Generation 2 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:
https://h18000.www1.hp.com/products/quickspecs/11956_na/11956_na.HTML


Cluster Options HP Serviceguard for Linux ProLiant Cluster (2 node license cluster kit) A.11.15
NOTE: Kit includes 2 licenses, documentation and an Ethernet crossover cable.
305199-B24
HP Serviceguard for Linux (single license version for ordering flexibility and to ease ordering for larger cluster) A.11.15
NOTE: Kit includes single license version and documentation.
307754-B24
NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following QuickSpecs at:
https://h18000.www1.hp.com/products/quickspecs/11518_na/11518_na.html

External Storage – Tower and Rack HP StorageWorks Modular Smart Array 30 SB
NOTE: Rack-mountable 14 drive enclosure with single bus, redundant power supplies
302969-B21
HP StorageWorks Modular Smart Array 30 DB
NOTE: Rack-mountable 14 drive enclosure with dual bus, redundant power supplies
302970-B21
NOTE: The Modular Smart Array Enclosure 30 Family supports the Wide Ultra3, Ultra320 1" Hot Plug Hard Drives.
Storageworks Modular Smart Array 30 OpenView Storage Mirroring HA Kit 359079-B21
Redundant Power Supply 499W 338296-B21 338296-B21
Ultra320 Dual Bus I/O Module for MSA30
287483-B21
Ultra320 Single Bus I/O Module for MSA30
287484-B21

HP StorageWorks Modular Smart Array 1500 cs

Modular Smart Array 1500 Controller Shelf

AA986A

NOTE: Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional options and configuration information at: https://www.hp.com/go/MSA1500cs

HP StorageWorks Modular Smart Array 1000

HP StorageWorks Modular Smart Array 1000

201723-B22 201723-B22

NOTE: Please see the Modular Smart Array 1000 QuickSpecs for additional options and configuration information at
https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML

Network Storage Router

M2402 2FCX 4SCSI LVD Network Storage Router
262653-B21
M2402 2FCX 4SCSI HVD Network Storage Router
262654-B21
M2402 4 channel LVD SCSI Module
262659-B21
M2402 4 channel HVD SCSI Module
262660-B21
M2402 2 channel FC Module
262661-B21

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Uninterruptible Power Systems – Tower UPSs

HP UPS Model T700 (700VA, 500 Watt), Low Voltage
204015-001
HP UPS T1000 XR (1000 VA, 700 Watts), Low Voltage
204155-001
HP UPS T1500 XR (1440 VA, 1050 Watts)
HP UPS T2200 XR (1920 VA, 1600 Watts) Low Voltage
204451-001
HP UPS T2200 XR (2200 VA, 1600 Watts) High Voltage

Uninterruptible Power Systems – Rack UPSs

HP UPS R1500 XR (100 to 127)
HP UPS R3000 XR (120V)
HP UPS R3000 XR (208V)
HP UPS R12000 XR N+ x (200-240V) (hardwired)
207552-B22
NOTE: The UPS R12000 XR has a hardwired input and output.

HP Power Distribution Unit with Power Monitoring HP Power Distribution Unit with Power Monitoring Model S2324 - dual input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S1324 - single input, 3 phase, 24A
HP Power Distribution Unit with Power Monitoring Model S2140 - dual input, 1 phase, 40A
HP Power Distribution Unit with Power Monitoring Model S1140 - single input, 1 phase, 40A

Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting brackets shipped with
the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)
NOTE: This mPDU (252663-D71 252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.

252663-D71 252663-D71

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

252663-D72 252663-D72

HP Modular Power Distribution Unit (mPDU), High Volt Model, 40A, Attached Cord
252663-D73
NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.HTML

USB Options USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
  USB Optical Scroll Mouse (Carbonite)
DD441B

Other ProLiant ML3xx Internal to External SCSI Cable Option Kit (HD68)
159547-B22
ProLiant ML3xx Internal to External SCSI Cable Option Kit (VHDCI)
NOTE: The ProLiant ML3xx Internal to External SCSI Cable Option Kits (PN 159547-B21 and 333370-B21) are supported by the ML330 G3, ML350 G3/G4, and ML370 G4 products.
333370-B21

Custom Builder Please see the Enterprise Configurator for configuration assistance at: https://www.hp.com/products/configurator.

Rack Conversion Kit

ProLiant ML350 G3 Tower to Rack Conversion Kit (HP branded)
290683-B22
  Rack Adapter Kit
NOTE: This kit allows HP rack servers to fit in racks that are 24" wide.
332815-B21

HP Rack 5000 Series (Graphite Metallic) HP 5642 Rack-Unassembled

Rack Options for Rack 5000 Series Stabilizer Kit for 5642 rack (Graphite Carbon)
NOTE: The stabilizing kit is used to prevent rack from tipping over.
374493-B21
Baying Kit for 5642 rack (Graphite Carbon)
NOTE: The baying kit is used to join two or more HP 5642 racks.
374499-B21

HP Rack 10000 Series
(Graphite Metallic)
10642 (42U) Infrastructure Rack (Low Voltage)
379006-001
10642 (42U) Infrastructure Rack (High Voltage)
HP S10614 (14U) Rack Cabinet - Shock Pallet
HP 10842 (42U) Rack Cabinet - Pallet
HP 10842 (42U) Rack Cabinet - Shock Pallet
HP 10647 (47U) Rack Cabinet - Pallet
HP 10647 (47U) Rack Cabinet - Crated
245160-B23
HP 10642 (42U) Rack Cabinet - Pallet
HP 10642 (42U) Rack Cabinet - Shock Pallet
HP 10642 (42U) Rack Cabinet - Crated
245161-B23
HP 10636 (36U) Rack Cabinet - Pallet
HP 10636 (36U) Rack Cabinet - Shock Pallet
HP 10636 (36U) Rack Cabinet - Crated
245162-B23
HP 10622 (22U) Rack Cabinet - Pallet
HP 10622 (22U) Rack Cabinet - Shock Pallet
HP 10622 (22U) Rack Cabinet - Crated
245163-B23
NOTE: -B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels)
-B23 (crated) used for air shipments of empty racks

NOTE: It is mandatory to use a shock pallet in order to ship racks with equipment installed. Not all Compaq equipment is qualified to be shipped in the Rack 10000 series.
NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

Rack Options for HP Rack 10000 Series NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.
HP Rack Light Kit (Neon)
HP Rack Plinth Kit (Carbon)

42U Side Panel – Graphite Metallic

246099-B21 246099-B21

36U Side Panel – Graphite Metallic

246102-B21 246102-B21

47U Side Panel – Graphite Metallic

255486-B21 255486-B21

TFT5600 Rack Keyboard Monitor

221546-001 221546-001

1U Rack Keyboard & Drawer (Carbon)
NOTE: For additional information regarding Rack Options, please see the following URL: https://h18000.www1.hp.com/products/servers/proliantstorage/rack-options/index.html.

HP KVM Switch Options Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
IP Console Switch Box (KVM/IP), 1 x 1 x 16
IP Console Switch Box (KVM/IP), 3 x 1 x 16
HP 1x4 USB/PS2 KVM Switch, TT
371301-D71
PS/2 Interface Adapter, 8 pack
PS/2 Interface Adapter, 1 pack
CAT5 KVM Expansion Module
Serial Interface adapter - 1 Pack with power supply
CAT5e Cable 3', 4 pack
CAT5e Cable 6', 8 pack
CAT5e Cable 12', 8 pack
CAT5e Cable 20', 4 pack
CAT5e Cable 40', 1 pack
NOTE: For additional information regarding HP KVM Switches and options, please see the following URL:
https://h18004.www1.hp.com/products/servers/proliantstorage/rack-options/list.html#console


HP Factory Express

Factory Installation, Racking, and Customization Services



Factory Express Server Configuration Level 1

293355-888

NOTE: Free Installation of HP Options - Installation of HP Options memory, NICs, hard drives, controllers, processors, I/O cards, pre-install standard OEM OS image, and tape drives. Installation fees will apply to all non-HP certified hardware and asset tags.

Factory Express Server Configuration Level 2

266326-888
NOTE: Includes Level 1 Customer Intent of a ProLiant server and options configuration, OS installation, custom image download, IP addressing, network setting, and custom packaging. Customer unique requirements (quick restore creation, cd duplication, test reports, real-time reporting of server MAC address, password, and RILOE). Customer access, validation and control through VPN (price/server).
Factory Express Rack Integration Level 3 with 1 - 3 servers or storage enclosures
325736-888
Factory Express Rack Integration Level 3 with 4 - 9 servers or storage enclosures
232539-888
Factory Express Rack Integration Level 3 with 10 or more servers or storage enclosures
325735-888
NOTE: Includes Level 1 Customer Intent for standard mounted servers and storage units plus standard cable mgmt, RAID configuration, servers & storage, power distribution, networking gear and accessories (price/rack).
NOTE
: Available on ProLiant rack models only.

Factory Express Rack Integration Level 4 with 1 - 3 servers or storage enclosures
325734-888
Factory Express Rack Integration Level 4 with 4 - 9 servers or storage enclosures
232540-888
Factory Express Rack Integration Level 4 with 10 or more servers or storage enclosures
325733-888
NOTE: Includes Level 2 Customer Intent plus customer defined cable management and naming convention, customer furnished image download, IP addressing, cluster configurations (SQL, External storage RAID). Quick restore creation, cd duplication, test reports, real-time reporting of server MAC address, password, RILOE). Customer access and validation through VPN (price/rack).
NOTE
: Available on ProLiant rack models only.

Factory Express Rack Integration Level 5 with 1 - 3 servers or storage enclosures
325732-888
Factory Express Rack Integration Level 5 with 4 - 9 servers or storage enclosures
232541-888
Factory Express Rack Integration Level 5 with 10 or more servers or storage enclosures
325731-888
NOTE: Includes Level 4 Customer Intent plus Custom SW layering and extended test, Customer access, validation and control through VPN, Clustered racks with networking gear and / or external storage array, Start-up installation services custom quote. (price/rack).
NOTE
: Available on ProLiant rack models only.
NOTE
: Factory Express Engineered Solution Level 6 is a custom solutions available through Factory Express. Please contact your local reseller or Account Manager.

Service and Support Offerings (HP Care Pack Services)

Hardware Services On-site Service

4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years
U4512A
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4512E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years
U4513A
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4513E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years
U4514A
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4514E
Installation & Start-up Services
Hardware Installation
U4522A
Hardware Installation, Electronic
U4522E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.
U4523A
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4523E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4524A
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4524E
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays.
U4526A
Onsite HW support, 8am-9pm, M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4526E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4525A
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4525E
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays.
U4527A
Onsite HW support 24x7, 4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4527E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack
contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Memory



HP ProLiant ML350 G3 Array Models
The ML350 G3 supports both interleaved and non-interleaved memory configurations. Array models ship standard with two 512MB DIMMs, interleaved. For best performance, automatically invoke interleaving by populating memory upgrades in identical pairs. Interleaving memory and installing in pairs is not required. Add any combination of memory DIMMs to operate in non-interleaved mode.

Standard Memory
1 GB (expandable to 8GB) of 2-way interleaving capable PC2100 DDR SDRAM running at 200MHz on 400MHz models or 266MHz on 533MHz models, with Advanced ECC capabilities (2x 512MB)

NOTE: Advanced ECC Memory - ECC protection provides the ability to detect and correct single bit memory errors while Advanced ECC extends this coverage to include protection against multiple simultaneous errors on a DIMM. Advanced ECC detects and corrects 4bit memory errors that occur within a single DRAM chip on a DIMM. Advanced ECC algorithms work in combination with industry standard ECC DIMMS.

Standard Memory Plus Optional Memory
A total of up to 5.1 GB of total memory can be implemented by upgrading the standard array configuration with an installation of two optional PC2100-MHz Registered ECC DDR SDRAM DIMMs.

Standard Memory Replaced with Optional Memory
Up to 8.2 GB of total memory can be implemented with the removal of the standard 512-MB DIMM and the optional installation of PC2100-MHz Registered ECC DDR SDRAM DIMMs.

NOTE: Charts do not represent all possible memory configurations.

Slot 1

Slot 2

Slot 3

Slot 4

Standard

1 GB
512 MB
512 MB
Empty
Empty

Optional

1.5 GB
512 MB
512 MB
2048 MB
2048 MB

Maximum

8 GB
2048 MB
2048 MB
2048 MB
2048 MB


2x1 Interleaved Memory
(Recommended)

Pair 1
Pair 2

Total Memory
Slot 1
Slot 2
Slot 3
Slot 4

Recommended Configurations for Array Models

1 GB
512 MB
512 MB
Empty
Empty
1.5 GB
512 MB
512 MB
256 MB
256 MB
2 GB
512 MB
512 MB
512 MB
512 MB


Following are memory options available from HP:


  • 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
287494-B21 287494-B21
  • 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
287495-B21 287495-B21
  • 512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
287496-B21 287496-B21
NOTE: To invoke interleaving in your array model, order this kit for a total of 1-GB of interleaved memory.
  • 1024MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
287497-B21 287497-B21
  • 2048MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 2048 MB)
301044-B21 301044-B21




HP ProLiant ML350 G3 Non-Array Models
The ML350 G3 supports both interleaved and non-interleaved memory configurations. Base models ship standard with one 512 MB DIMM, non-interleaved. For best performance automatically invoke interleaving by populating memory in identical pairs. Interleaving memory and installing in pairs is not required. Add any combination of memory DIMMs to operate in non-interleaved mode.

Standard Memory
512 MB (expandable to 8GB) of 2-way interleaving capable PC2100 DDR SDRAM running at 200MHz on 400MHz models or 266MHz on 533MHz models with Advanced ECC capabilities (1x 512 MB)

NOTE: Advanced ECC Memory - ECC protection provides the ability to detect and correct single bit memory errors while Advanced ECC extends this coverage to include protection against multiple simultaneous errors on a DIMM. Advanced ECC detects and corrects 4bit memory errors that occur within a single DRAM chip on a DIMM. Advanced ECC algorithms work in combination with industry standard ECC DIMMS.

Standard Memory Plus Optional Memory
Up to 6.7 GB optional memory is available with the installation of PC2100-MHz Registered ECC DDR SDRAM DIMMs.

Standard Memory Replaced with Optional Memory
Up to 8.2 GB of memory is available with the removal of the standard 512-MB of memory and the optional installation of PC2100-MHz Registered ECC DDR SDRAM DIMM installed.

NOTE: Charts do not represent all possible memory configurations

ML350 G3 Memory


Slot 1

Slot 2

Slot 3

Slot 4

Standard

512 MB
512 MB
Empty
Empty
Empty

Optional

6.5 GB
512 MB
2048 MB
2048 MB
2048 MB

Maximum

8 GB
2048 MB
2048 MB
2048 MB
2048 MB


Recommended Configurations for Base Models

Total Memory Desired
1
2
3
4
1 GB
512 MB
512 MB
Empty
Empty
2 GB
512 MB
512 MB
512 MB
512 MB
4 GB
1 GB
1 GB
1 GB
1 GB





Following are memory options available from HP:


  • 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB)
  • 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
NOTE: To invoke interleaving in your base model, order this kit for a total of 512MB of interleaved memory.
  • 512MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 512 MB)
  • 1024MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 1024 MB)
  • 2048MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 2048 MB)

contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Storage

0 - 5

6 x 1" SCSI Hard Drive Bays

A

1.44 MB Diskette Drive

B

48x CD-ROM
C, D
Available half height bay



Drive Support




Quantity
Supported

Position
Supported


Controller

Removable Media


1.44-MB Diskette Drive Up to 1 A Integrated
IDE (ATAPI) CD-ROM Drive Up to 2 B, C, D Integrated IDE (ATAPI)
DVD-ROM Drive Option Kit Up to 2 B, C, D Integrated IDE
ML3xx Two Bay Hot Plug SCSI Drive Cage Up to 1 C+ D Integrated SCSI
NOTE: The Two Bay Hot Plug SCSI Drive Cage requires the use of both available removable media bays (C+D). In most cases, it is not possible to install both a non hot plug tape drive and the two bay hot pug SCSI drive cage option.

Hard Drives

Ultra320 Hot Pluggable Drives


Quantity
Supported

Position
Supported


Controller

1-inch
300-GB 10,000 rpm
146.8-GB 10,000 rpm
72.8-GB 10,000 rpm
146.8-GB 15,000 rpm
72.8-GB 15,000 rpm
36.4-GB 15,000 rpm

Up to 6 0-5

Integrated Dual Channel Wide Ultra3 SCSI Adapter
Smart Array 5302/128 Controller
Smart Array 5304/256 Controller
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 641 Controller
(NOTE: The Smart Array 641 Controller now ships standard with Array models.)
Smart Array 642 Controller
64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter

NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.

External Storage



Quantity
Supported

Position
Supported


Host Controller or Adapter



Modular Smart Array 30 Family

Up to 13

External

Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

  Modular Smart Array 500 System 1 External Please see the Modular Smart Array 500 QuickSpecs for the latest list of supported HBAss: https://www.hp.com/go/msa500
  Modular Smart Array 1000 Please see the Modular Smart Array 1000 QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1000 QuickSpecs (URL below) for the latest list of supported HBAs
  Modular Smart Array 1500 cs Please see the Modular Smart Array 1500 cs QuickSpecs below to determine configuration requirements External Please see the Modular Smart Array 1500 cs QuickSpecs (URL below) for the latest list of supported HBAs


Modular Smart Array 1000: https://h18000.www1.hp.com/products/quickspecs/11033_na/11033_na.HTML
Modular Smart Array 1500: https://www.hp.com/go/MSA1500cs


Maximum Storage Capacity – (SCSI Enclosure)

Internal

2.40 TB (6 x 300 GB 1" Ultra320 hot plug hard drives with standard internal drive cage + 2 x 300 GB 1" Ultra320 Hot plug hard drive using the optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
External 100.80 TB (14 x 300 GB) x 244
Total 103.20 TB

Tape Drives, Tape Autoloaders & Tape Libraries

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10233.html

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:
https://h18000.www1.hp.com/products/quickspecs/North_America/10809.html

  Quantity Position Supported

Controller

HP StorageWorks DAT 40 or DAT 72 Tape Drive, Internal Hot-Plug Up to 3 per drive cage.
NOTE: drives are 1.5 height devices
0-5 Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
Smart Array 641 Controller
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS


Ultrium 215, Internal
Ultrium 230, Internal
Ultrium 460, Internal

1 C + D 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks DAT 24, DAT 40 or DAT 72 Tape Drive, Internal 2 C, D 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks DLT VS80 or SDLT 320 Tape Drive, Internal 1 C + D 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks External Tape Drives:
Ultrium 215, 230, or 460
DAT 24, 40, or 72
DLT VS80
SDLT 320
2 C, D 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWorks DAT 40x6 Tape Autoloader, Internal 1 C + D 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

HP StorageWork External Tape Autoloaders:
DAT 40x6
1/8 Ultrium 460
1/8 SDLT 320
1/8 Ultrium
1/8 DLT VS80
SSL1016 Ultrium 460
SSL1016 SDLT320
SSL1016 DLT1
1 autoloader per SCSI channel External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS

Tape Libraries:
MSL6000 (Ultrium 460 -based)
MSL5026S2 (SDLT 320-based)
MSL5052S2 (SDLT 320-based)
MSL5030 (Ultrium 230 -based)
MSL5060 (Ultrium 230 -based)
ESL 712e
ESL 630e
ESL9322 ETLA
ESL9595 ETLA
Please reference the MSL Tape Library QuickSpecs to determine configuration requirements External 64-Bit/133Mhz Dual Channel Ultra320 SCSI Adapter
64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS
contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Power Specifications

Part Number

264166-001
Spare Kit 292237-001
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz)47 to 63 (50/60)




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
500
500
500
500
500
500
Nominal Input Current (A rms)
7.8
6.7
3.7
3.4
3.2
3.0
Max Rated Input Wattage Rating (Watts)
769
758
746
735
725
714
Max. Rated VA (Volt-Amp)
785
773
761
750
739
729

Efficiency (%)

65
66
67
68
68
70

Power Factor

0.98
0.98
0.98
0.98
0.98
0.98

Leakage Current (mA)

0.31
0.36
0.65
0.69
0.72
0.75

Maximum Inrush Current (A peak)

21
24
43
46
48
50

Maximum Inrush Current duration (miliseconds)

20
20
20
20
20
20

System Specifications
ML350 Generation 3 (G3) Fully Configured
Up to 2 Processors, 4 Memory Slots, 8 Hard Drives, 5 PCI Slots, and 2 Hot Plug Power Supplies

Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Fully Loaded System Input Wattage (W)
557
549
541
534
526
519
Fully Loaded System Input Current (A rms)
5.7
4.9
2.7
2.5
2.3
2.2
Fully Loaded System Thermal (BTU-Hr)
1900
1872
1846
1820
1794
1770
Fully Loaded System VA (Volt-Amp)
569
560
552
545
537
530
System Leakage with all power supplies loaded (mA)
0.63
0.72
1.30
1.38
1.44
1.50
System Inrush Current with all power supplies loaded (A)
42
48
86
92
96
100
Power cord requirementsNema 5-15P to IEC320-C13Option no./Spare no: See Power Cord chart
 IEC320-C13 to IEC320-C14Option no./Spare no: 142257-001/142258-B21

NOTES:
ActiveAnswers Power Calculation
Power calculator is LIVE on ActiveAnswers Web site. This is an external link.
Follow this link: https://h30099.www3.hp.com/configurator/powercalcs.asp

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML350 G3
- Click on: "Power Calculator" link. (You may need to scroll down to see it)

contents
 Overview      Standard Features      Models      ML350 G3 Options      ML350 G3 Memory      Storage      Power Specifications      ML350 G3 QuickSpecs images/line.gif

Quickspecs

System Unit – Tower Dimensions (HxWxD)
(with feet/bezel)
18.5 x 10.25 x 26 in (46.99 x 26.04 x 66.04 cm)
Dimensions (HxWxD)
(without feet/bezel)
17.5 x 8.5 x 24 in (44.50 x 21.59 x 60.96 cm)
Weight(approximate) 60 lb (27.24 kg) (without hard drives)
Input Requirements
(per power supply)
Range Line Voltage 100 to 120 VAC/200 to 240 VAC
Rated Input Frequency50 Hz to 60 Hz
Input Power538W @ 110 VAC
Rated Input Current7.4A/3.7A
Line Frequency 50 to 60 Hz
BTU Rating 1,839 BTU/hr
SCSI Connectors
Two internal HD68 connectors
(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B22) and either of the two SCSI knockouts.)
Power Supply Output Power
(per power supply)
Rated Steady-State Power500W
Temperature RangeOperating50° to 95° F (10° to 35° C)
(No direct sustaining sunlight)
Storage (up to one year)-40° to 158° F (-40° to 70° C)
Maximum Wet Bulb Temperature82.4° F (28° C)
Relative Humidity
(non-condensing)
Operating10% to 90%
Non-operating5% to 90%
Acoustic NoiseIdle
(Fixed Disk Drives Spinning)

L WAd (BELS)
6.0
L pAm (dBA)
46.3
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
46.5

System Unit – Rack Dimensions (HxWxD) 8.61 x19 x 24 in (21.87 x48.26 x 60.96 cm)
Weight(approximate) 60 lb (27.24 kg) (without hard drives)
Input Requirements
(per power supply)
Range Line Voltage 100 to 120 VAC/200 to 240 VAC
Rated Input Frequency 50 Hz to 60 Hz
Input Power 538W @ 110 VAC
Rated Input Current 7.4A/3.7A
Line Frequency 50 to 60 Hz
BTU Rating 1,839 BTU/hr
SCSI Connectors
Two internal HD68 connectors
(Support for either two internal, two external, or a mix of internal/external is available. This is achieved using an internal to external SCSI cable option kit (PN 159547-B22) and either of the two SCSI knockouts.)
Power Supply Output Power
(per power supply)
Rated Steady-State Power 500W
Temperature Range Operating 50° to 95° F (10° to 35° C)
(No direct sustaining sunlight)
Storage (up to one year) -40° to 158° F (-40° to 70° C)
Maximum Wet Bulb Temperature 82.4° F (28° C)
Relative Humidity
(non-condensing)
Operating 10% to 90%
Non-operating 5% to 90%
Acoustic Noise Idle
(Fixed Disk Drives Spinning)

L WAd (BELS)
6.0
L pAm (dBA)
46.3
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS)
6.0
L pAm (dBA)
46.5

48X Max IDE (ATAPI)
CD-ROM Drive
Disk Applicable DiskCD-ROM, CD-XA, CD-DA (Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
Mixed Mode (Audio and Data combined)
CD-R
Capacity540 MB (Mode 1, 12 cm)
650 MB (Mode 2, 12 cm)
Block SizeMode 12,048 bytes
Mode 22,340 bytes, 2,336 bytes
CD-DA2,352 bytes
CD-XA2,328 bytes
Interface IDE (ATAPI)
Access Times (typical)Random<100 ms
Full-Stroke<150 ms
Data Transfer RateSustained3000 to 7750 KB/s (20X to 48X)
Burst150 KBps to 7,200 KBps
Bus Rate16.7 MBps
Cache Buffer 128 KB
Start-up Time (typical) < 7seconds
Stop Time< 4seconds
Laser ParametersTypeSemiconductor Laser GaA1As
Wave Length780 ± 25 nm
Operating Conditions Temperature41° to 113° F (5° to 45° C)
Humidity10% to 80%
Dimensions

(HxWxD, maximum)

1.7 x 5.85 x 8.11 in (4.29 x 14.86 x 20.60 cm)
Weight2.09 lb (0.95 kg)

NC7760 PCI Gigabit Server Adapter (embedded)Network Interface10Base-T/100Base-TX/1000Base-TX
CompatibilityIEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 80.3u 100Base-TX
Data Transfer Method32-bit bus-master PCI
Network Transfer Rate10Base-T(Half-Duplex) 10 Mb/s
10Base-T(Full-Duplex)20 Mb/s
100Base-TX(Half-Duplex)100 Mb/s
100Base-TX(Full-Duplex)200 Mb/s
1000Base-TX 1000Mb/s
ConnectorRJ-45
Cable Support10Base-TCategories 3, 4 or 5 UTP; up to 328 ft (100 m)
 10/100/1000Base-TXCategory 5 UTP; up to 328 ft (100 m)

Integrated Dual Channel Wide Ultra3 SCSI AdapterDrives SupportedUp to 28 SCSI devices (14 per channel)
Data Transfer Method64-bit PCI bus-master
SCSI Channel Transfer Rate160 MB/s per channel
Maximum Transfer Rate per PCI Bus (peak)267 MB/s per channel
SCSI ProtocolsWide Ultra2 SCSI
Wide-Ultra SCSI-3
Fast SCSI-2
Electrical ProtocolLow Voltage Differential (LVD)
SCSI TerminationActive Termination
External SCSI ConnectorsOptional VHDCI and HD68 internal-to-external connectors
Internal SCSI ConnectorsTwo 68-Pin Wide-Ultra SCSI-3 connectors

Smart Array 641 Controller
(NOTE: The Smart Array 641 Controller ships standard with the Array Models only.)
ProtocolUltra320 SCSI
SCSI Electrical InterfaceLow Voltage Differential (LVD)
Drives SupportedUp to 6 Ultra 320, Ultra3 and Ultra2 SCSI hard drives
SCSI Port Connectors SA-641One internal SCSI port
Data Transfer Method64-Bit PCI bus-master
PCI Bus Speed64-bit, 133-MHz PCI-X (1 GB/s maximum bandwidth)
PCI3.3 volt PCI slot compatibility only
Simultaneous Drive Transfer ChannelsOne
Channel Transfer Rate320-MB/s total; 320-MB/s per channel
Software upgradeable Firmware Yes
Cache Memory64-MB DRAM used for code, transfer buffers, and non-battery backed read cache
Logical Drives Supported32
Maximum Capacity 1.80 TB (6 X 300 GB)
Memory Addressing64-bit, supporting servers memory greater than 4 GB
RAID SupportRAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping)
Upgradeable Firmware2-MB Flashable ROM
Disk Drive and Enclosure Protocol Support Ultra320, Ultra2 and Ultra3
WarrantyMaximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty)
Minimum: One-year, on-site limited warranty
Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty. For complete details, consult the HP Support Center or refer to your HP Server Documentation.

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
