 HPE  Proliant ML115 G5 QuickSpecs Flag US QuickSpecs
Folder-Closed ML115 G5 HDD SSD Folder-Closed ML115 G5 Processors Folder-Closed ML115 G5 Memory
Folder-Closed ML115 G5 Controllers Folder-Closed ML115 G5 Networking Folder-Closed ML115 G5 Power
Folder-Closed ML115 G5 Quickspecs Folder-Closed ML115 G5 Quickspecs Folder-Closed ML115 G5 Options New  Refurb
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Proliant ML115 G5 Overview

HP ProLiant ML115 Generation 5 (G5)

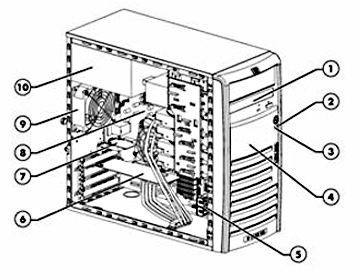

Proliant ML115 G5 Front View: Proliant ML115 G5 Rear View:
1. DVD-ROM Drive 1. Power Supply Outlet
2. Power LED 2. Rear System Fan
3. Drive Activity LED 3. PCI Slot Cover Lock
4. Front Bezel 4. PCI Slot Covers
5. Full Length Card Retainer 5. HP ProLiant100 G5 Lights-Out 100c Remote Management Card port(Optional)
6. HDD Controller Card (Optional) 6. LAN Port (RJ-45)
7. HP ProLiant100 G5 Lights-Out 100c Remote Management Card port (Optional) 7. Rear USB 2.0 Ports
8. System Board 8. Serial Port
9. Rear System Fan 9. VGA Port
10. 365W Power Supply 10. PS/2 Keyboard Port
  11. PS/2 Mouse Port
12. Power Supply Unit (PSU) Fan

What's New

  • Support for SATA Non-hot plug Midline Hard Drives

At A Glance

  • Processor:
    • AMD Opteron™ processors Model 1300 series
    • AMD Athlon™ processor Model 4450B
    • AMD Athlon™ processor Model 1640B
    • nVidia NFP3400 chipset
  • Memory:
    • Four (4) DIMM slots
    • 1GB (1x1GB) Standard/8GB Maximum, using PC2-6400 DDR2 Unbuffered ECC memory, operating at 800MHz
  • Storage Controller:
    • 4 Port SATA controller with Embedded RAID on Motherboard (RAID 0, 1, 5)
  • Internal Drive Support:
    • 4 HDD Support
    • Internal SAS storage capacity of up to 1.8TB (4 x 450GB 3.5" SAS drives)
    • Internal SATA storage capacity of up to 4.0TB (8 x 2TB 3.5" SATA drives)
  • Network Controller:
    • Embedded NC105i PCI Express Gigabit Ethernet Server Adapter
  • Expansion Slots:
    • Slot 1: PCI 32-bit/33MHz at 3.3V
    • Slot 2: PCI-Express x1 connector with x1 link
    • Slot 3: PCI-Express x8 connector with x8 link
    • Slot 4: PCI-Express x16 connector with x16 link
  • USB 2.0 Ports:
    • Eight (8) USB 2.0 ports: 2 front , 4 rear, 2 internal (one for tape, one for standard USB device)
  • Power Supply:
    • 365 Watts Non-Hot Plug, Non Redundant Power Supply
  • Management:
    • Standard Lights Out 100 IPMI 2.0 reporting
    • Optional HP ProLiant 100 G5 Lights Out 100c Remote Management Card
    • Standard HP ProLiant ML115 G5 Easy Set-Up CD
  • Operating System:
    • Supports Windows, RHEL and SLES
  • Form Factor:
    • Micro ATX tower (4U)
      NOTE: Rack mounting available via HP Tower to Rack Conversion Tray, Universal Kit. Please see the options section in this QuickSpecs.
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
      NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Standard Features

Processor
One of the following depending on Model
Quad-Core Processors
AMD Opteron™ Processor Model 1356 (2.3 GHz, 75W, 2MB)
NOTE: Offered through Configure-To-Order only. See Factory Integrated Models section for more details.
AMD Opteron™ Processor Model 1354 (2.2 GHz, 75W, 2MB)
AMD Opteron™ Processor Model 1352 (2.1 GHz, 75W, 2MB)
NOTE: Offered through Configure-To-Order only. See Factory Integrated Models section for more details.
Dual-Core Processors
AMD Athlon™ Processor Model 4450B (2.3 GHz, 45W, 1MB)
NOTE: Offered through Configure-To-Order only. See Factory Integrated Models section for more details.
Single-Core Processors
AMD Athlon™ Processor Model 1640B (2.7 GHz, 45W, 512KB)
NOTE: Offered through Configure-To-Order only. See Factory Integrated Models section for more details.
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: https://www.amd.com/powernow.

Cache Memory
One of the following depending on Model
2MB Level 2 cache (AMD Opteron™ 1300 Series)
1MB Level 2 cache (AMD Athlon™ 4450B models)
512KB Level 2 cache (AMD Athlon™ 1640B models)

Chipset nVidia NFP3400
NOTE: For more information regarding AMD chipsets, please see the following URL:
https://www.amd.com/products/chipsets/

Memory Protection ECC

Memory Type PC2-6400 unbuffered DDR2 ECC 800MHz
Standard 1GB (1x1GB)
Maximum 8 GB

Network Controller Embedded NC105i PCI Express Gigabit Ethernet Server Adapter

Expansion Slots #
Technology
Bus Width***
Connector Width
Bus Number*
Device Number**
Form Factor
Notes
1
PCI
32-bit
N/A
1
8
Full height slot
33MHz/3.3V
2
PCI-e
X1
X1
4
0
Full height slot
3
PCI-e
X8
X8
2
0
Full length, full height slot
4
PCI-e
X16
X16
12
0
Full length, full height slot


* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).
*** Indicates the number of physical electrical lanes running to a PCI-e connector.
NOTE: PCI-X Interface (PCI 32bit/33MHz compatible)


Storage Controller

Integrated 4 port SATA controller with embedded RAID (0, 1, 5)
NOTE: Embedded RAID setup instructions are located in the User Guide. CTO RAID set-up is not available.
HP ProLiant ML100 Series Server User Guide: https://h20000.www2.hp.com/bc/docs/support/SupportManual/c00260539/c00260539.pdf


Storage Optical Drive HP Half-Height SATA DVD-ROM Optical Drive ships standard
Hard Drives 1x160 GB NHP SATA 7750 rpm Drive

Maximum Internal Storage Non-Hot Plug SAS 1.8TB (4 x 450GB) 3.5" SAS
Non-Hot Plug SATA 8.0TB (4 x 2TB) 3.5" SATA

Interfaces Parallel 0
Serial 1
Pointing Device (Mouse, PS2) 1
Graphics 1
Keyboard (PS2) 1
USB 2.0 Ports

8 total (4 rear, 2 front panel, 2 internal (one for USB Tape connectivity))

NOTE: 1 Dedicated USB port available for internal USB tape connectivity
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html
Network RJ-45 (Ethernet) 1 (10/100/1000 bits/s)
Remote Management HP ProLiant G5 Lights-Out 100c Remote Management port (Optional)

Graphics 32MB shared supporting 1600x1200x16M resolution

Form Factor Micro ATX Tower (4U)
NOTE: Rack mounting available via HP Tower to Rack Conversion Tray, Universal Kit. Please see the options section in this QuickSpecs.

Remote Management Lights-Out 100c Lights Out LO100c is a family of Remote Management Card (RMC) for ProLiant 100 series servers that do not have embedded LO100i. The LO100c has all the features of the LO100i Advanced license and allows customers, or their service providers, to remotely manage ProLiant servers over a LAN or the Internet from anywhere, anytime regardless whether the server is located in the same building, across town, or around the globe.

With LO100c, users can acquire complete remote control with Virtual KVM (graphical hardware-based, remote console). Users can also access the server's serial console, control system power, update system firmware and software, as well as monitor system environmental conditions. The LO100c remote management card can be accessed from a web browser or command line interface. This virtual "at-the-server" functionality means administrators stay in control of remote HP ProLiant 100 series servers.

The HP Lights-Out100c consists of a management processor and firmware that provides cost-effective, entry-level lights-out functionality, basic system board management functions, and diagnostics.

NOTE: For more information, please refer to the QuickSpecs for the LO100c found at: https://h18004.www1.hp.com/products/servers/management/remotemgmt/
lightsout100/index.html


Core Infrastructure Management HP ProLiant ML115 G5 Easy Set-up CD

The HP ProLiant Easy Set-up CDs optimize single-server setup, providing a simple way to deploy reliable and consistent server configurations. The HP ProLiant 100 Series Easy Set-up CD ship standard with the ML115 G5.

This CD offers essential single-server deployment tools for HP ProLiant 100 series servers that simplify HP entry server setup, providing a repeatable way to deploy reliable and consistent single-server configurations.  The HP ProLiant Easy Set-up CDs assist with the OS installation process by preparing the system for installing "off-the-shelf" versions of Windows operating system software and automatically integrating optimized HP ProLiant server software drivers and utilities. Users enjoy the following benefits:

  • An easy-to-use, intuitive graphical interface that prepares your system for the OS installation process.
  • Integration of key server software drivers with assisted installation.
  • Dependency and validity checks to ensure that all supported ProLiant software can be installed.

For the latest information about other related software; please visit the HP Insight Control Management Software Portfolio at:
https://h18004.www1.hp.com/products/servers/management/ and the HP ProLiant Easy Set-up CD Web site at www.hp.com/servers/easysetup


Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.3 Compliant
PXE Support
WOL Support
IPMI 2.0 compliance

Manageability

Standard Lights Out 100 1PMI 2.0 reporting
Optional HP ProLiant G5 Lights-Out 100c Remote Management Card
Standard HP ProLiant ML115 G5 Easy Set-Up CD


Security Power-on password
Setup password
USB lock

Server Power Cords 6' lowline NEMA power cord.

Power Supply 365 Watts Non-Hot Plug, Non redundant Power Supply

System Fans One (1) - Non-redundant system fan shipped standard
One (1) - Non-redundant CPU heatsink fan shipped standard

Operating Systems and Virtualization Software Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: https://www.hp.com/go/supportos and our driver download page https://www.hp.com/support/ML115G5

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and/or storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging and custom packaging HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers, as well as, the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to https://www.hp.com/go/factory-express.

HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. https://www.hp.com/products/configurator.


Service and Support

HP Care Pack Services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack Services include HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA. HP Uninterruptible Power Systems will be covered at the same service level and coverage period as the server. Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - Simplify ProLiant solution implementation, maintenance and management.

  • Support Service -3 Year, 9x5 Next Business Day coverage, excluding HP holidays only
  • Deployment Service - Hardware Installation only

Enhanced Service - Optimize service level to increase IT performance and availability

  • Support Service - 3 Year 13x5 Same Business Day, 4-Hour response coverage
  • Deployment Service - Installation and Start-up only

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

For a complete listing of service offerings and information visit:
https://www.hp.com/services/proliantservices
https://www.hp.com/go/proliant/carepack
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Smart Buys

The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery. Smart Buy server offers are available for a limited time only.
SATA Models

HP S-Buy ML115G5 4450B NHP SATA
480567-005

Processor(s)(1) Dual-Core AMD Athlon™ Processor Model 4450B (2.3 GHz)
Cache Memory1MB Level 2 cache
Memory1GB (1 x 1 GB) PC2-6400
Network ControllerEmbedded NC105i PCIe Gigabit
Storage ControllerEmbedded SATA RAID (RAID 0/1/5)
Hard Drive(1) 160GB SATA 7.2K 3.5"
Internal StorageMaximum 3TB (4 x 750GB) SATA
Optical DriveDVD-ROM Drive
Form FactorMicro ATX Tower (4U)

HP S-Buy ML115G5 o1214 NHP SATA
480568-005

Processor(s)(1) Dual-Core AMD Opteron™ Processor Model 1214 (2.2 GHz)
Cache Memory2MB Level 2 cache
Memory1GB (1 x 1 GB) PC2-6400
Network ControllerEmbedded NC105i PCIe Gigabit
Storage ControllerEmbedded SATA RAID (RAID 0/1/5)
Hard Drive(1) 160GB SATA 7.2K 3.5"
Internal StorageMaximum 3TB (4 x 750GB) SATA

Optical DriveDVD-ROM Drive
Form FactorMicro ATX Tower (4U)

HP S-Buy ML115G5 o1214 SBS SATA SBS
480417-005

Processor(s)(1) Dual-Core AMD Opteron™ Processor Model 1214 (2.2 GHz)
Cache Memory2MB Level 2 cache
Memory2GB (2 x 1 GB) PC2-6400
Network ControllerEmbedded NC105i PCIe Gigabit
Storage ControllerEmbedded SATA RAID (RAID 0/1/5)
Hard Drive(2) 160GB SATA 7.2K 3.5"
Internal StorageMaximum 3TB (4 x 750GB) SATA
Operating SystemMicrosoft Windows Small Business Server 2003 R2 Standard Edition
with 5 CALs
Optical DriveDVD-ROM Drive
Form FactorMicro ATX Tower (4U)

HP S-Buy ML115G5 o1352 SBS
480418-005

Processor(s)(1) Quad-Core AMD Opteron™ Processor Model 1352 (2.1 GHz)
Cache Memory2MB Level 2 cache
Memory2GB (2 x 1 GB) PC2-6400
Network ControllerEmbedded NC105i PCIe Gigabit
Storage ControllerEmbedded SATA RAID (RAID 0/1/5)
Hard Drive(2) 250GB SATA 7.2K 3.5"
Internal StorageMaximum 3TB (4 x 750GB) SATA
Optical DriveDVD-RW Drive
Form FactorMicro ATX Tower (4U)

HP S-Buy ML115G5 o1352 NHP SATA 480419-005

Processor(s)(1) Quad-Core AMD Opteron™ Processor Model 1352 (2.1 GHz)
Cache Memory2MB Level 2 cache
Memory2GB (2 x 1 GB) PC2-6400
Network ControllerEmbedded NC105i PCIe Gigabit
Storage ControllerEmbedded SATA RAID (RAID 0/1/5)
Hard Drive(1) 250GB SATA 7.2K 3.5"
Internal StorageMaximum 3TB (4 x 750GB) SATA
Optical DriveDVD-RW Drive
Form FactorMicro ATX Tower (4U)
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Configuration Information-Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Configuration
HP Models HP ProLiant ML115 G5 NHP CTO Chassis

457767-B21

Factory Integrated Models ship with:
Embedded NC105i PCI Express Gigabit Ethernet Server Adapter
HP Embedded 4 Port SATA Controller
HP ProLiant ML115 G5 Easy Set-Up CD
PCA
Power cord
Keyboard and Mouse
Micro ATX Tower (4U)
NOTE: HP SATA Drive Models are limited to 4.0TB support.

NOTE: On SATA models with embedded RAID, setup instructions are located in the User Guide. CTO RAID set-up is not available. HP ProLiant ML100 Series Server User Guide:
https://h20000.www2.hp.com/bc/docs/support/SupportManual/c00260539/
c00260539.pdf


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors Quad-Core Processor
AMD Opteron™ Processor Model 1356 (2.3 GHz, 75W, 2MB) Option Kit, FIO 480295-B21
AMD Opteron™ Processor Model 1354 (2.2 GHz, 75W, 2MB) Option Kit, FIO 490606-B21
AMD Opteron™ Processor Model 1352 (2.1 GHz, 75W, 2MB) Option Kit, FIO 480294-B21
Dual-Core Processor
AMD Athlon™ Processor Model 4450B (2.3 GHz, , 45W,1MB) Option Kit, FIO 480298-B21
Single-Core Processors
AMD Athlon™ Processor Model 1640B (2.7 GHz, 45W, 512KB) Option Kit, FIO 480297-B21

HP Memory HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit 450259-B21 450259-B21

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Supports up to 4 hard drives.

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 507772-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 571232-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 454234-B21 454234-B21
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 417950-B21 417950-B21
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 417855-B21 417855-B21
NOTE: Please see the for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html


HP Optical Drives HP Half-Height SATA DVD ROM Kit
447326-B21
HP Half-Height SATA DVD-RW Optical Kit 447328-B21

Step 3: Choose Additional Factory Integratable Options
NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP Storage Controller HP SC40Ge Host Bus Adapter, FIO
NOTE: When using the SC40Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required.
NOTE: Factory Integrated Only.
449176-B21

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options and Additional Options" section below.
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

ML115 G5 Core Options

NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information.
HP Memory HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit

HP Optical Drives HP Half-Height SATA DVD ROM Kit
447326-B21
HP Half-Height SATA DVD-RW Optical Kit
447328-B21

HP Hard Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 507772-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 571232-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 450GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 454234-B21 454234-B21
HP 300GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive
NOTE: Please see QuickSpecs for Technical and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html


HP Networking Gigabit Ethernet Adapters
HP NC110T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Additional Options

HP Entry-Level Server Management HP ProLiant 100 G5 Lights-Out 100c Remote Management Card
445513-B21
NOTE: Supports HP ProLiant DL180 G5, ML110 G5, ML115 G5 and ML150 G5 servers,
NOTE: For additional information on Lights-Out 100c Remote Management Card, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/12468_na/12468_na.html


HP Storage Controllers Smart Array E200 Controller

HP Smart Array E200/128 BBWC Controller
NOTE: Supports RAID 0,1,1+0, 5/BBWC.

NOTE: SAS Storage Controllers supports both SATA and SAS drives.

NOTE: On SATA models with embedded RAID, setup instructions are located in the User Guide. CTO RAID set-up is not available. HP ProLiant ML100 Series Server User Guide:
https://h20000.www2.hp.com/bc/docs/support/SupportManual/
c00260539/c00260539.pdf

Optional Upgrades
HP Internal SAS/SATA 4-Port Cable
NOTE: The purchase of a SAS Storage Controller requires the purchase of HP SAS/SATA 4-Port Cable (P/N 430479-B21)

430479-B21

SAS HBA
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
NOTE: Supports RAID 0,1.
416096-B21 416096-B21
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Supports Tape only, no RAID support.
NOTE: Recommended HBA for SCSI tape drive connect.
412911-B21 412911-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12460_na/12460_na.html
(Smart Array E200 Controller)
https://h18004.www1.hp.com/products/quickspecs/12617_na/12617_na.html (SC44Ge HBA)
https://h18004.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)


Backup & Recovery Software Data Protector Express
HP Data Protector Express 4.0 SP1 Backup Server
BB117BA

HP Data Protector Express 4.0 SP1 for Microsoft Small Business Server

BB118BA
HP Data Protector Express Backup Server 4.0 SP1 Upgrade from Data Protector Express Single Server Edition BB117BT
NOTE: Only one of these Data Protector Express base products is required. To see available options: https://www.hp.com/go/dataprotectorexpress

Tape Backup NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: https://www.hp.com/go/tape. For hardware and software compatibility of HP StorageWorks tape backup products see: https://www.hp.com/go/connect.
HP StorageWorks DAT 320 USB Internal Tape Drive
AJ825A

HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.

AJ830A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
EH847A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack-Mount Kit (AH166A) for rack installation. Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
AH558A
HP StorageWorks MSL2024 Tape Library with one LTO-3 Ultrium 920 SAS Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
AH559A
HP StorageWorks MSL2024 Tape Library with one LTO-5 Ultrium 3000 SAS Drive
NOTE: Connection using the HP SC44Ge SAS Host Bus Adapter (416096-B21 416096-B21) recommended.
BL537A

Disk Backup NOTE: For the complete range of StorageWorks D2D Backup Systems see: https://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: https://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk backup products see: https://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ001A
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of usable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ002A
USB Removable Media RDX Disk Backup Systems
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: 500GB of disk capacity per data cartridge.
AJ934A
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE: 750GB of disk capacity per data cartridge.
AW577A

HP Uninterruptible Power Systems HP Tower - UPS
HP T1000 G3 UPS Models
HP T1000 G3 UPS
AF448A
NOTE: Please see QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12506_na/12506_na.html
HP T750 G2 UPS Models
HP T750 G2 UPS
AF446A
NOTE: For additional information please go to: https://www.hp.com/go/rackandpower
NOTE: Please see QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12192_na/12192_na.html
NOTE: For additional information on sizing your server, please reference:
https://www.upssizer.com

HP Rack Options

HP KVM Switch Options

HP 1x4 Console Switch
HP PS2 Server Console Cable, 6 foot, 2-Pack AF612A AF612A
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: Required for supporting USB peripherals.
AF613A AF613A
NOTE: For additional information regarding KVM Switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.
Rack Kits
Monitor/Utility Shelf 253449-B21 253449-B21
HP Tower to Rack Conversion Tray, Universal Kit 417705-B21

HP USB and SD Options HP ProLiant Server Mouse AC105A
HP ProLiant Server Keyboard
AC110A
NOTE: When installing a Windows OS Environment and configuring the embedded SATA RAID, AHCI, or SAS controllers, installation of a driver from a diskette device is required.
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Service and Support, HP Care Pack, and Warranty Information

HP Care Pack Services Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic U4433E
Hardware Services - 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic U4434E
24-Hour x 7-Day Coverage, 3 Years, Electronic U4435E
Hardware Installation
Hardware Services 6-Hour Call to Repair On-Site Service
6-Hour Call to Repair, On-Site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic U4436E
Hardware Installation, Electronic U4444E
NOTE: For more information, customer/resellers can contact https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Memory

HP ProLiant ML115 G5 Models
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
Standard Memory
1 GB (1x1GB) of PC2-6400 DDR2 UDIMM running at 800MHz with memory kits installed
Standard Memory Plus Optional Memory
Up to 6 GB memory is available with the optional installation of PC2-6400 un-buffered ECC DDR2 SDRAM DIMM Memory kits.
Standard Memory Replaced with Optional Memory
Up to 8 GB of memory is available with the removal of the standard 1GB of memory and the optional installation of 4 x 2 GB PC2-6400 un-buffered ECC DDR2 SDRAM DIMM Memory kits.
NOTE: The below chart does not represent all possible memory configurations.
NOTE: For best performance, it is recommended that customers install memory in identical pairs. Slots 1A and 2A are interleaving pair. Slots 3B and 4B are interleaving pair.

Memory
Slot

1A
2A
3B
4B
Standard 1 GB
1 GB
Empty
Empty
Empty
Optional 6 GB
1 GB
1 GB
2 GB
2 GB
Maximum 8 GB
2 GB
2 GB
2 GB
2 GB
Following are memory options available from HP:
HP Memory HP 2GB (1x2GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit 450260-B21 450260-B21
HP 1GB (1x1GB) Dual Rank PC2-6400 (DDR2-800) Unbuffered Memory Kit 450259-B21 450259-B21
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Storage

1
Removable Media Bays (1.6" each)
2
DVD-ROM
3, 4, 5, 6
Four (4) Non-Hot Plug Drive Bays











Drive Support



Quantity
Supported

Position
Supported


Controller

Removable Media


DVD Drive 2 1 or 2 Integrated SATA
DVD-RW Drive 2 1 or 2 Integrated SATA

Hard Drives (SATA Models only)
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives


Quantity
Supported

Quantity
Supported


Controller

2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 4 3-6 4 Port SATA controller with Embedded RAID on Motherboard (0,1,5)
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
  Quantity
Supported
Quantity
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 4 3-6 4 Port SATA controller with Embedded RAID on Motherboard (0,1,5)

Hard Drives (SAS Models only)
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives


Quantity
Supported

Position
Supported


Controller

450GB 3G SAS 15K
300GB 3G SAS 15K
146GB 3G SAS 15K
Up to 4 3-6 HP 8 Internal Port SAS HBA with RAID (0,1)

Maximum Storage Capacity
Internal SATA 8.0TB (4 x 2TB)
SAS 1.8TB (4x 450GB)

Tape Drives and Disk-Based Backup
NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see: https://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: https://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: https://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: https://www.hp.com/go/connect.


Position

Recommended Controller

Part Number

HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160

Internal or External
HP SC11Xe Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect


HP StorageWorks SCSI Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit

External
HP SC11Xe Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect

HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or External
USB 2.0 Port
N/A

HP StorageWorks USB Rack Mount Kits
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280

Internal or External
HP SC44Ge SAS Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect


HP StorageWorks SAS Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit

External
HP SC44Ge SAS Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect

HP StorageWorks SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External HP SC11Xe Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect
412911-B21 412911-B21

HP StorageWorks SCSI Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External HP U320e SCSI Dual Channel Controller

Please check the full compatibility information at: https://www.hp.com/go/connect
AH627A AH627A

HP StorageWorks SAS Tape Autoloaders and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External HP SC44Ge SAS Host Bus Adapter

Please check the full compatibility information at: https://www.hp.com/go/connect
416096-B21 416096-B21

HP StorageWorks Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpec.


HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750

External
USB 2.0 port
N/A

HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
External Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

HP StorageWorks D2D Backup Systems, Fibre Channel
D2D4000fc
External Direct server attach is not supported, requires connection via SAN fabric. See: https://www.hp.com/go/connect
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Power Specifications

Part Number 457694-001
Operational Input Voltage Range (Vrms) 100 to 127 and 200 to 240 V auto ranging
Frequency Range (Nominal) (Hz) 50 to 60 Hz




Nominal Input Voltage (Vrms)
100
115
208
220
230
240
Max Rated Output Wattage Rating
N/A
365
N/A
N/A
365
N/A
Nominal Input Current (A rms)
N/A
6
N/A
N/A
3
N/A
Max Rated Input Wattage Rating (Watts)
N/A
553
N/A
N/A
517
N/A
Max. Rated VA (Volt-Amp)
N/A
N/A
N/A
N/A
N/A
N/A

Efficiency (%)

N/A
>65%
N/A
N/A
>65%
N/A

Power Factor

N/A
N/A
N/A
N/A
N/A
N/A

Leakage Current (mA)

0.5mA (at 60HZ)
N/A
N/A
N/A
N/A
N/A

Maximum Inrush Current (A peak)

N/A
No component was damaged and input fuse shall not blow
N/A
N/A
No component was damaged and input fuse shall not blow
N/A

Maximum Inrush Current duration (mS)

N/A
N/A
N/A
N/A
N/A
N/A



To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: https://www.hp.com/go/hppoweradvisor

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML115 G5
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

System Specifications

  Power**
HP ProLiant ML115 G5 Fully Configured (see**)
Fully Loaded System output Wattage (W) 365W
Fully Loaded System Input Current (A rms) 6A @ 115V, 3A @ 230V
Fully Loaded System Thermal (BTU- Hr) 1885 BTU
Fully Loaded System VA (Volt-Amp) N/A
System Leakage with all power supplies loaded (mA) N/A
System Inrush Current with all power supplies loaded (A) N/A
Power cord requirements Nema 5-15P to IEC320-C13
IEC320-C13 to IEC320-C14
**Power shown is for a fully configured system consisting of (1) CPU, (4) double-sided DIMMs, (4) HDDs, (1) DVD-ROM, (4) PCI cards, and (1) power supply.
contents
 Overview      Standard Features      Smart Buys      Configuration Information-Factory Integrated Models      ML115 G5 Core Options      Additional Options      Service and Support, HP Care Pack, and Warranty Information      ML115 G5 Memory      Storage      Power Specifications      System Specifications      ML115 G5 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (HxWxD)
(with feet)
14.5 x 6.9 x 16.2 in (36.7x 17.5 x 41.2 cm)
Weight (approximate) Maximum
(all hard drives, power supplies, and processors installed)
31.35 lb (14.22 kg)
Minimum
(one hard drive, power supply, and processor installed)
25.75 lb (11.68 kg)
Input Requirements
(per power supply)

Rated Line Voltage

90 –- 132 VAC,
180 – 264 VAC

Rated Input Current

6 A (at 110 VAC),
3 A (at 200 VAC)

Rated Input Frequency 47 to 63 Hz
Rated Input Power

365 W (at 100 VAC),
365 W (at 200 VAC)

BTU Rating Maximum

1885 BTU/hr (at 100 VAC),
U/hr (at 200 VAC)

Power Specifications

To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: https://www.hp.com/go/hppoweradvisor

Power Supply Output
(per power supply)
Rated Steady-State Power

365 W (at 100 VAC),
365 W (at 200 VAC)

Maximum Peak Power

385 W (at 100 VAC),
385 W (at 200 VAC

System Inlet Temperature Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr).  The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating 10 to 90% relative humidity (Rh), 28°C
5 to 95% relative humidity (Rh), 38.7°C
Altitude Operating 3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise
(Fully Loaded)
Idle
L WAd
4.74 BELS
L pAm
30.0 dBA
Operating
L WAd 4.99 BELS
L pAm 32.5 dBA
Emissions Classification (EMC) FCC Rating Class B
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.


HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21 Capacity 160,041 MB
Height
Maximum drive dimension
1.0 in. (26.1 mm)
Width 4.0 in. (101.6 mm)
Depth
Maximum drive dimension
5.787 in (147.0 mm)
Interface Serial ATA
Transfer rate synchronous (maximum) 3Gb/s
Native Command Queuing N/A
Seek time (typical reads, including settling) Single track 2.0 ms
Average <11 ms
Full-stroke 23.0 ms
Rotational speed 7,200 rpm
Physical Configuration Bytes/Sector 512
Logical Blocks 312,581,808
Operating Temperature 41° to 131° F (5° to 55° C)

16X Max SATA
DVD-ROM Drive

447326-B21 Disk Applicable Disk CD-ROM, CD-XA, CD-DA
(Mode 1, Mode 2, Form 1 and 2)
Photo CD (Single and Multi-session)
CD-R. CD-RW
Mixed Mode (Audio and Data combined)
DVD-ROM
DVD-R/RW, DVD+R/RW
CD-R
Capacity 540MB (Mode 1, 12 cm)
650MB (Mode 2, 12 cm)
4.7 GB, 8.5 GB DVD
Block Size Mode 1 2,048 bytes (CD & DVD)
1024 bytes
Mode 2 2,340 bytes, 2,336 bytes, 1024 bytes
CD-DA 2,352 bytes
CD-XA 2,328 bytes
Interface SATA
Access Times (typical) Random <100 ms
Full-Stroke <150 ms
Data Transfer Rate Sustained 3000 to 7750 KB/s (20X to 48X)
Burst 150 KBps to 7,200 KBps
Bus Rate 1.5Gbps
Cache Buffer 128 KB
Start-up Time (typical) < 7 seconds
Stop Time < 4 seconds
Laser Parameters Type Semiconductor Laser GaA1As
Wave Length 780 ± 25 nm
Operating Conditions Temperature 41° to 122° F (5° to 50° C)
Humidity 10% to 90%
Dimensions

(HxWxD, maximum)

1.63 x 5.75 x 7.87 in (41.3 x 146 x 195 mm)
Weight 2.64 lb (1.2 kg)

4 port Embedded SATA controller SATA Protocol SATA 2, 3Gb/s
SATA Ports 4 internal
Port transfer rate 1.5 Gb/s total
Maximum Capacity up to 4.0TB (4 x 1TB non-hot plug SATA HDD)
RAID Levels Supported RAID 1+0 (Striping & Mirroring)
RAID 1 (Mirroring)
RAID 0 (Striping)
RAID 5 (Striping with parity)
Logical RAID Volumes Supported NOTE: On SATA models with embedded RAID, setup instructions are located in User Guide, CTO RAID is set-up is not available. HP ProLiant 100 Series Server User Guide: https://h20000.www2.hp.com/bc/docs/support/
SupportManual/c00260539/c00260539.pdf

Embedded NC105i PCIe Gigabit Server Adapter

Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method Single lane (x1), 100MHz PCI Express Reference Clock
Controller BCM5722
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45 connector
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
