Proliant BL60p G1 QuickSpecs |
US QuickSpecs |
|
|
|
|
|
|
|
|
|
Proliant BL60p G1 Overview

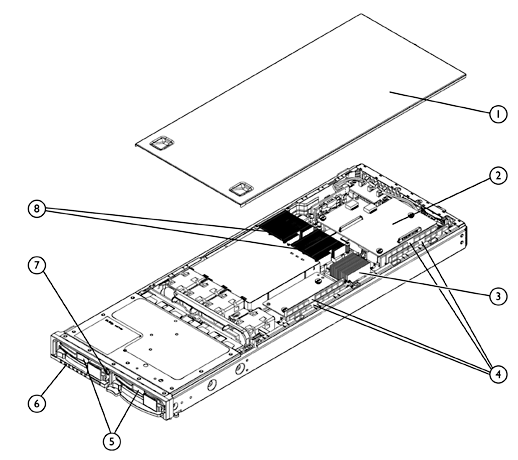

HP Integrity BL60p Server Blade
|
1.
|
Access Panel
|
5.
|
Up to two Ultra320 hot-plug hard disk drives (optional)
|
2.
|
Mezzanine Card: 4 GigE ports and 2 FC ports
|
6.
|
Front panel LEDs
|
3.
|
HP zx1 chipset
|
7.
|
Power On/Standby Button |
4.
|
Memory banks 1 and 2 (4 DIMM slots)
|
8.
|
Up to two Intel Itanium2™ 1.6 GHz 3MB cache processors |
|
|
|
At A Glance |
This QuickSpecs provides information for the HP Integrity BL60p server
blade only. For more information on HP BladeSystems p-Class Infrastructure
and HP BladeSystem p-Class Interconnect Components, please see the following
QuickSpecs:
HP BladeSystem p-Class Infrastructure QuickSpecs:
https://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.html
and
HP BladeSystem p-Class Interconnect Components QuickSpecs: https://h18000.www1.hp.com/products/quickspecs/12331_div/12331_div.html
- Processor:
- Supports up to two Intel Itanium 2™ 1.6 GHz/3MB L3 Cache
processors.
- HP's high performance zx1 chipset for Intel Itanium™.
- Memory:
- PC2100 Registered ECC 133MHz DDR1 memory, 2 x 1 Interleaved Memory
4 DIMM slots, expandable to 8 GB. When the same density DIMMs are
loaded in quads the Chip Sparing functionality is automatically
enabled. HP's Chip Sparing will logically replace a SDRAM which
has experienced a multi-bit error.
- Storage Controller:
- Two (2) embedded Fibre Channel Ports (2-Gb per port)
- Internal Drive Support:
- Ultra320 SCSI Drive Cage (standard) supports up to two Ultra320
SCSI hot-plug hard disk drives
- Network Controller:
- Five total network ports:
- Four (4) PCI-X Gigabit Ethernet embedded ports consisting
of two (2) Braodcom 5704 NICs.
- One additional 10/100T NIC dedicated to Integrated Lights-Out
(iLO) Management
- USB Ports:
- Local I/O cable provides two USB ports, one video port, one iLO
port and serial port
- Form Factor:
- Plugs vertically into 6U enclosure, up to 8 server blades per
enclosure
- Management:
- Integrated Lights-Out (iLO) for Integrity remote management (embedded
hardware and firmware on system board)
- Deployment/Serviceability:
- Integrated Access Tool for server blade management and enhanced
server blade documentation including Best Practices and Common Procedures
guides
- Other Features:
- Compatible with HP ProLiant Server Blades in a single enclosure
- HP Integrity BL60p server blade supporting HP-UX for BladeSystems
- Warranty:
- Protected by HP Services with a three-year Next Business Day,
on-site limited global warranty. Certain restrictions and exclusions
apply. Pre-Failure Notification on processors, memory, and SCSI
hard drives.
|
Standard Features (Server Blade)
Upgradeability |
Upgradeable to dual processing. |
|
Cache
Memory
|
3MB Level 3 cache |
|
Memory |
Type |
PC2100 DDR SDRAM running at
133MHz and 266MHz transfers/second |
Standard |
0 or 4 GB (depending on model) |
Maximum |
8 GB |
NOTE:
Memory must be installed in pairs. Chip Sparing is enabled if all four DIMMs
are the same size/density. |
|
Network Adapter |
Five network ports total: |
Four (4) PCI-X Gigabit Ethernet
ports consisting of two Broadcom 5704s |
One 10/100 iLO NIC dedicated
to management
NOTE: Must use a HP BladeSystem p-class
server blade enclosure with enhanced backplane (281404-B22, 243564-B22 or
380625-B22).
NOTE: For more information on HP BladeSystems p-Class Infrastructure,
please see the following QuickSpecs: HP BladeSystem p-Class Infrastructure
QuickSpecs: https://h18000.www1.hp.com/products/quickspecs/12330_div/12330_div.html
|
|
Expansion Slots |
No I/O expansion slots; all
I/O features are standard/embedded |
I/O cable connectors: |
(2)USB 2.0 ports, and (1) serial
console port
NOTE: The iLO LAN port and the VGA
video ports on the I/O cable are not supported on the HP Integrity BL60p
server blade. |
(2) I/O cables ship with every
server blade enclosure |
NOTE: The HP
Integrity BL60p server blade uses the same BladeSystems I/O cable |
Tested USB devices are listed
in the "Options" section of this QuickSpecs |
|
Integrated Manageability |
Integrated Lights-Out (iLO)
remote ,management (embedded hardware and firmware)
(Supports standard Integrity CLI (Command Line Interface) and BladeSystems
Management Functions) |
|
Internal Storage |
Hard Drives |
2 x 36GB Ultra320, hard drives |
|
Maximum Internal Storage |
600GB (internal drive cage) |
2 x 300GB Ultra320, hard drives |
|
Standard Features
Management
Software |
HP Integrity Essentials | HP
offers a comprehensive set of integrated tools for seamless management of HP Integrity
servers. HP Systems Insight Manager (SIM) and HP Integrity Essentials help you
control IT infrastructure with unified management of your HP Integrity server
environment. https://www.hp.com/go/integrityessentials |
HP Systems Insight Manager |
HP Systems Insight Manager (SIM) is the foundation for HP's unified server-storage
management strategy. It is a multiple operating system, hardware level management
product that supports HP Integrity, HP ProLiant and HP 9000 servers. HP SIM is
easily extensible, integrating other HP management products and value-add plug-ins
such as HP Integrity Essentials. For more details on HP Systems Insight Manager
visit https://www.hp.com/go/hpsim |
Software Deployment |
- HP Ignite-UX for installation and deployment of the HP-UX operating system
- HP Software Distributor-UX for software and patch management
- Update-UX
automates updates to HP-UX operating environments.
- Software Package
Builder packages software into SD-UX packages
| Configuration
Management | - HP System
Management Homepage/System Administration Manager for HP-UX system administration
- HP
Integrity Essentials Virtualization Manager provides comprehensive, integrated
configuration and management of all Virtual Server Environment elements
- HP
Integrity Essentials Capacity Advisor for ongoing capacity planning simulating
placement of application workloads
- HP-UX webmin-based Admin allows
easy plug-in of open source management tools
- HP-UX Bastille provides
security hardening and lockdown
- Security Patch Check efficiently
improves system security
- WBEM for consistent management
|
Workload Management |
- HP Process Resource Manager manages allocation of resources (optional)
- HP-UX Workload Manager automatically manages resources based upon SLOs
(optional)
- HP Integrity Essentials Global Workload Manager manages
resources in multi-server Virtual Server Environments
- OpenView
GlancePlus and Performance Agent for performance monitoring
|
| |
OS Support
|
HP HP-UX 11i version 2 Foundation Operating Environment (Standard)
HP HP-UX 11i version 2 Enterprise Operating Environment (Optional)
NOTE: Each HP Integrity BL60p server
blade includes a two processor License-to-Use for HP-UX Foundation Operating
Environment.
NOTE: For more information about HP-UX go to:
https://www.hp.com/go/hp-ux.
|
|
Intelligent Manageability |
Integrated Lights-Out for Integrity (iLO)
|
Dedicated LAN Connectivity
Dedicated embedded manageability processors (BMC & MP)
Web Graphical User Interface (GUI) - Access iLO from anywhere using any
of standard browsers
Telnet access
Virtual Power and reset control
Remote text console - Operating system-independent, text-based console
to display and control remote host server activities such as shutdown
or start-up- remotely view HPUX console
Command line and scripting interfaces - Flexible operation, configuration
and maintenance
SSL encryption - All data transmitted between iLO processors and client
browsers
Embedded System Health
iLO and server diagnostics - Detailed status, logs
Automatic IP Configuration via DHCP/DNS
Remote Firmware Update
SNMP identification
IPMI over LAN
|
Integrated Lights-Out (iLO)
for Integrity Advanced (Included)
Directory Services Integration for iLO User Management using LDAP based
Directory Services
Secure Shell (SSH encryption) support for secure access to iLO
iLO Group Actions for managing multiple systems using HP Systems Insight
Manager |
Full suite of HP-UX diagnostic
utilities
HP Systems Insight Manager integration
Advanced Configuration and Power Interface Specification Compliant (ACPI) |
|
Availability |
Intel Itanium2™ Enterprise Class Processor Itanium Enhanced Machine Check
Architecture (MCA) with Extensive ECC - a comprehensive set of features and protocols
for handling random system errors Processor cache parity
/ ECC System bus ECC Data poisoning on double-bit errors Hardware
error logging for root cause analysis DPR (dynamic processor resiliency) for
HPUX Dual-Port Fibre Channel for redundant SAN connection
HP-UX Mirror-UX for disc mirroring with HP HP-UX 11i version 2 Enterprise Operating
Environment ECC Memory with Chip Sparing Network adapter teaming (network
fault tolerance, transmit load balancing, switch-assisted load balancing) |
|
Security |
Power-on password
Administrator's password
Integrated Lights-Out for Integrity has 19 customizable user accounts and
SSL encryption
Integrity Integrated Lights-Out LAN access methods can be individually enabled
and disabled. |
|
Factory Express Portfolio for
Servers and Storage |
HP Factory Express offers configuration, customization, integration
and deployment services for HP servers and storage products. Customers
can choose how their factory solutions are built, tested, integrated,
shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging and custom packaging.
HP products supported through Factory Express include: a wide array of
servers and storage: HP Integrity, HP ProLiant & HP ProLiant Server
Blades, HP Integrity Server Blade, HP BladeSystem, HP 9000 servers as
well as the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable
network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to https://www.hp.com/go/factory-express.
|
|
Service
and Support |
HP Premium Services are available for the HP Integrity BL60p server blade.
These services offer integrated hardware and software support to help
customers maintain a robust, stable, flexible IT environment that enhances
their business agility. They encompass today's most popular products,
including UNIX, Windows, and Linux servers, as well as mobile technology,
network devices, desktops, printers, storage solutions, management software
and more.
All of these Premium offerings let customers leverage HP Services multi-vendor,
multi-technology experience and expertise; global reach with delivery
capabilities from 600 offices in 160 countries; single-point-of-contact
problem diagnosis and resolution; advanced remote monitoring and performance
enhancement technologies; and proven support management processes based
on IT best practices.
HP Services professionals can help customers identify the Premium support
offering that fits their business and technology goals. HP Premium Hardware
and Software Services include:
- Mission
Critical Partnership - custom services
to help you achieve your strategic business goals and fulfill your most
demanding service-level commitments through continual service-quality
improvements
- HP
Critical Service - comprehensive preventive
services and super-responsive support to maximize availability and
minimize downtime risk exposure in mission-critical environments
- HP
Proactive 24 Service - collaborate with HP
Services professionals to improve operational effectiveness,
performance, and stability through joint services planning and 24x7
hardware/Software Support
- Support
Plus 24 - 24x7x365 onsite hardware and
over-the-phone Software Support for HP and selected multi vendor
products, plus software updates at substantial subscription savings
- Support
Plus - the economical choice for single-source hardware/Software
Support delivered during extended business hours, as well as cost-saving
software updates
This product is covered by a global limited warranty and supported by
HP Services:
NOTE:
Server Blade Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support.
NOTE: Server Blade Enclosure Limited Warranty includes 3 year Parts,
3 year Labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
- Installation and start up
- Education courses
- Extended onsite hardware coverage hours from
same business day 13 hours, 5 day to 24 hours, 7 days call window with
options including 4-hour response or 6-hour Call To Repair
- Comprehensive range of software technical
support.
- System Management, Performance Services and Mission Critical Support
Solution
NOTE: For more information regarding
the Blade service portfolio visit our worldwide web site on the internet
at: https://www.hp.com/services/bladesystemservices
|
Models
Pre-Configured
Models | NOTE:
The Pre-configured model is designed for ease of ordering and deployment. This
model has no available expansion slots (no processor, memory, or drive bays) for
options, but can be factory installed in an enclosure with a Factory Express order.
The HP-UX operating environment can be loaded on the hard drive, using HP Ignite
UX or an USB DVD drive. The HP-UX Operating Environment can be factory loaded
on the Drive-0 hard drive with the appropriate ordered options.. Upgrades to HP-UX
Enterprise Operating Environment (HP-UX EOE) can be factory load the HP-UX EOE
to be loaded on Drive-0. | Integrity
BL60p 1.6GHz-3MB, 4GB, (2P) (2)36GB SCSI AD106A | Processor(s) | Two
(2) Intel Itanium2™ processors: 1.6 GHz (2 standard) | Cache
Memory | 3MB Level 3 cache |
BL60p G1 Memory | 4
GB 2-way interleaved PC2100 DDR SDRAM running at 133MHz | Network
Adapter (Standard) | Four
(4) PCI-X Gigabit Ethernet embedded ports consisting of two (2) Broadcom 5704
controllers One additional 10/100 NIC dedicated to iLO Management |
Storage Controller
(Standard) | Two
(2) FC Qlogic ISP2312 controllers (2 Gb ports) One (1) LSI U320 controller
for hot plug U320 SCSI drives | Hard
Drives |
Two (2) 36GB 15,000 rpm U320
SCSI hard drives |
Internal
Storage |
Up to 600GB maximum (with optional,
U320 SCSI hard drives) |
Optical
Drive | None | Form
Factor | Plugs vertically into
HP BladeSystem p-Class Server Blade Enclosure (full height server blade) |
Operating Environment | HP
HP-UX 11i version 2 Foundation Operating Environment |
NOTE:
Option 0D1 installs in a server blade enclosure when ordered with Factory
Express; which is installed in a HP Rack 10000 series on a shock pallet.
NOTE: Please use BL p-Class sizing tool to determine power based on your
configuration https://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls. |
|
Base Models |
NOTE:
The Base model allows for the most configuration flexibility. This model
does not support factory configuration or integration. This model requires
the customer (or reseller) to assemble the options on site, after which
the HP-UX OE can be loaded on the hard drive (using HP IgniteUX or a USB
DVD drive). The base model also includes an HP-UX Foundation OE two processor
License-to-use, which can be upgraded to HP-UX Enterprise OE two processor
License-to-use. |
Integrity BL60p
1.6GHz/3MB
AD000A |
Processor(s) |
One (1) Itanium2™ 1.6 GHz (Up
to 2 supported) |
Cache Memory |
3MB Level 3 cache |
Memory |
None |
Network Adapter
(Standard) |
Four (4) 1-Gigabit Ethernet
embedded ports
One additional 10/100 NIC dedicated to iLO Management |
Storage Controller
(Standard) |
Two (2) Fibre Channel 2-Gigabit
per second Ports |
Hard Drives |
None |
Internal Storage |
Up to 600GB maximum (with optional,
U320 SCSI hard drives) |
Optical Drive |
None |
Form Factor |
Plugs vertically into HP BladeSystem
p-Class Server Blade Enclosure (full height blade server) |
Operating Environment |
HP-UX Foundation Operating Environment
2 Processor License-to-Use |
NOTE:
Base Models do not support factory configuration or integration and requires
customer and/or reseller to assemble options on site. The HP-UX operating
environment can be loaded on the hard drive, using HP Ignite UX or an USB
DVD drive.
NOTE: Please use BL p-Class sizing tool to determine power based
on your configuration
https://h30099.www3.hp.com/configurator/calc/Power%20Calculator%20Catalog.xls. |
Options
Processor |
HP BL60p Intel Itanium2M 1.6 GHz/3MB
Processor Option Kit
|
AD115A
|
NOTE: If 2 processors
are desired for base models, please select one AD115A. |
|
|
Operating System |
HP-UX 11iv.2
Upgrade to Enterprise Operating Environment
|
BA535AC
|
MEDIA NOTE: Choose
Foundation or Enterprise OE media corresponding to license.
Choose Instant Ignition option 0D1 to pre-load the appropriate OE on the
Pre-Configured models ONLY. The Base Model is BTO (build to order and the
customer must install HP-UX. (HP-UX cannot be factory loaded on the base
model). Choose one of the localization options to determine startup language
for instant ignition and HP-UX documentation. One copy of the DVD media
is required for each site. |
|
HP-UX
11i v.2 Foundation Operating Environment media for Itanium servers
NOTE: Kit includes: DVD media; Factory Integrated
(pre-loads HP-UX 11i v.2; online diagnostics and drivers; HP-UX 11i
version 2; Select appropriate language option for system messages and
documentation.
|
B9106AA
|
HP-UX
11i v.2 Enterprise Operating Environment media for Itanium servers
NOTE: Kit includes: DVD media; Factory Integrated (pre-loads HP-UX
11i v.2; online diagnostics and drivers; HP-UX 11i version 2; Select appropriate
language option for system messages and documentation. |
B8482AA
|
|
BL60p G1 Memory
(SDRAM DIMMs)
|
HP Integrity 1 GB PC2100 DDR Memory
Module/Kit (2 x 512 MB) |
AD195A
|
HP Integrity 2 GB PC2100 DDR
Memory Module/Kit (2 x 1 GB) |
AD196A
|
HP Integrity 4 GB PC2100 DDR
Memory Module/Kit (2 x 2 GB) |
AD197A
|
NOTE: When selecting
the base models, one of the above memory modules (pair) must be selected.
A maximum of two modules are supported.
NOTE: No memory is included in the Pre-Configured models. You must
choose at least one of the memory modules (pair). A maximum of two modules
are supported.
NOTE: Memory DIMMs must be installed in modules (pairs). |
|
|
HP StorageWorks Modular
Smart Array 1500 cs |
Modular Smart Array 1500 Controller
Shelf |
AA986A |
NOTE: Please see
the StorageWorks Modular Smart Array 1500 cs QuickSpecs for additional options
and configuration information at:
https://www.hp.com/go/MSA1500cs |
|
|
HP StorageWorks Enterprise
Virtual Array |
Please see the QuickSpecs for
additional options and configuration information at:
https://www.hp.com/go/storageworks
|
|
EVA4000 2C1D Array |
AD554A
|
EVA6000 2C4D Array
|
AD556A
|
EVA8000 2C2D Array 60Hz
|
AD518A
|
EVA8000 2C2D Array 50Hz |
AD519A
|
|
USB Options |
External USB 2.0 Multi-Bay II
Cradle |
PA509A |
Multibay II 9.5mm DVD Drive |
PA849A |
|
HP Rack 5000
Series
(Metallic Carbonite)
|
HP 5642 Rack - Unassembled |
|
NOTE:
Please see the HP Rack 5642 QuickSpecs for additional part numbers and
Technical Specifications such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please
see the following URL: https://www.hp.com/go/rackandpower
|
|
|
HP Rack 10000 G2 Series (Graphite Metallic)
|
10642 G2 (42U) Rack Cabinet -
Pallet
|
|
10642 G2 (42U) Rack Cabinet -
Shock Pallet
|
|
10642 G2 (42U) Rack Cabinet -
Crated
|
AF003A
|
10642 G2 (42U) Rack Cabinet, with
Extension - Shock Pallet
|
|
10636 G2 (36U) Rack Cabinet -
Shock Pallet
|
|
10636 G2 (36U) Rack Cabinet -
Crated
|
|
10636 G2 (36U) Rack Cabinet, with
Extension - Shock Pallet
|
|
10636 G2 (36U) Rack Cabinet, without
door - Shock Pallet
|
|
10622 G2 (22U) Rack Cabinet -
Pallet |
AF021A
|
10622 G2 (22U) Rack Cabinet -
Shock Pallet |
AF022A
|
10842 G2 (42U) 800mm Wide Rack
Cabinet - Pallet |
AF041A
|
10842 G2 (42U) 800mm Wide Rack
Cabinet - Shock Pallet |
AF042A
|
10647 G2 (47U) Rack Cabinet -
Pallet |
AF031A
|
NOTE: Please see
the Rack 10000 G2 QuickSpecs for additional part numbers and Technical Specifications
such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
|
|
NOTE: For additional
information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower. |
|
|
HP Rack 10000 Series (Graphite Metallic)
|
HP S10614 (14U) Rack Cabinet -
Shock Pallet |
|
NOTE: xxxxxx-B22
(shock pallet) used to ship racks with equipment installed (by custom systems,
VARs and Channels).
NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed. |
|
NOTE: Please see
the Rack 10000 QuickSpecs for additional part number and Technical Specifications
such as height, width, depth, weight, and color:
https://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please
see the following URL: https://www.hp.com/go/rackandpower. |
|
|
Keyboards and Monitors |
TFT7210R Rack Mounted 17" Monitor
NOTE: For a complete list of Monitors
please view the following URL:
https://www.hp.com/go/kvm |
348373-B21 |
TFT7600 Rackmount Keyboard Monitor
US |
AG052A |
TFT7600 Rackmount Keyboard Monitor
UK |
AG053A
|
TFT7600 Rackmount Keyboard Monitor
GR |
AG054A |
TFT7600 Rackmount Keyboard Monitor
FR |
AG055A |
TFT7600 Rackmount Keyboard Monitor
IT |
AG056A
|
TFT7600 Rackmount Keyboard Monitor
SP |
AG057A |
TFT7600 Rackmount Keyboard Monitor
DEN |
AG058A |
TFT7600 Rackmount Keyboard Monitor
NOR |
AG059A |
TFT7600 Rackmount Keyboard Monitor
SE/FI |
AG060A |
TFT7600 Rackmount Keyboard Monitor
SWI |
AG061A |
TFT7600 Rackmount Keyboard Monitor
PORT |
AG062A |
TFT7600 Rackmount Keyboard Monitor
BEL |
AG063A |
TFT7600 Rackmount Keyboard Monitor
JPN2 |
AG064A |
TFT7600 Rackmount Keyboard Monitor
RUS |
AG065A |
TFT7600 Rackmount Keyboard Monitor
INTL |
AG066A |
NOTE:
For additional information regarding
Rack Options, please see the following URL: https://www.hp.com/go/rackandpower |
|
|
HP KVM Switch Options |
Server Console Switch (KVM), 0
x 1 x 8 port |
|
Server Console Switch (KVM), 0
x 2 x 16 port |
|
PS/2 Interface Adapter, 1 pack
|
|
PS/2 Interface Adapter, 8 pack
|
|
USB Interface Adapter, 1 pack
|
|
Serial Interface adapter - 1 Pack
with power supply |
|
NOTE:
Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
|
|
HP 1x4 Console Switch
|
AF611A |
HP PS2 Server Console Cable, 6
foot, 2-Pack
|
AF612A |
HP USB Server Console Cable, 6
foot, 2-Pack
NOTE: required for supporting USB
peripherals. |
AF613A |
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
|
HP
Serial Console Server Options |
HP 16 Port
Serial Console Server (worldwide)
|
|
HP 48 Port
Serial Console Server (worldwide)
|
|
Serial
Adapter, RJ45-DB9 DCE Female, 1 Pack
|
|
Serial
Adapter, RJ45-DB9 DCE Female, 8 Pack
|
AF110A
|
NOTE: Cat5e
cables are required to connect Serial Adapters to Serial Console Servers.
Additional Serial Adapters and Cat5e cables can be found at the following
URL: https://www.hp.com/go/kvm. |
|
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: https://www.hp.com/go/kvm. |
|
|
Service and Support Offerings
(HP Care Pack Services) |
Support Plus |
|
Support Plus, 1 Year |
HA109A1
|
Support Plus, 3 Years |
HA109A3
|
Support Plus 24, 1 Year
|
HA110A1
|
Support Plus 24, 3 Years
|
HA110A3
|
HP Proactive Service
|
|
HP Proactive Service, 24
Hour, 1 Year |
HA111A1
|
HP Proactive Service, 24
Hour, 3 Year |
HA111A3
|
HP Critical Service
|
|
Hardware Only, Critical
Service, 7-Day x 24 Hour, 1 Year |
HA112A1
|
Hardware Only, Critical
Service, 7-Day x 24 Hour, 3 Years |
HA112A3
|
Installation Services
|
|
Hardware Installation and
Network Configuration, 1 Year |
HA113A1
|
NOTE: For
more information please see the following URL:
https://www.hp.com/services/bladesystemservices |
|
|
Memory
HP Integrity BL60p Server Blade (2P Models)
|
DIMM installation Rules:
- All DIMMs must be PC2100 DDR 133-MHz SDRAM
DIMMS.
- Both DIMM slots in a memory bank must be
populated.
- Both DIMM slots in a memory bank must be
identical.
- Processor 1 memory bank 1 must always be populated.
NOTE: Two-way memory interleaving is
enabled when an identical pair of DIMMs is installed.
NOTE: Chip Sparing is automatically enabled with 4 DIMMs of the
same size/density installed.
Standard Memory
4096 MB PC2100 DDR SDRAM DIMM installed (4 x 1024 MB DIMM) running at
133-MHz
Standard Memory Replaced with Optional Memory
Up to 8192 MB of PC2100 DDR SCRAM DIMM memory is available with the removal
of standard memory and the installation of optional PC2100 DDR SDRAM DIMM
memory expansion modules/kits.
|
BL60p G1 Memory |
Slot | |
1 | 2 |
3 | 4 |
Standard |
4096 MB | 1024 MB |
1024 MB | 1024
MB | 1024 MB |
Maximum | 8192
MB | 2048 MB |
2048 MB | 2048
MB | 2048 MB |
|
Following are memory options
available from HP: |
|
- HP Integrity 1 GB PC2100 DDR SDRAM Memory Module Kit (2 x 512 MB)
|
AD195A |
- HP Integrity 2 GB PC2100 DDR SDRAM
Memory Module
K it (2 x 1 GB)
|
AD196A |
- HP Integrity 4 GB PC2100 DDR SDRAM
Memory Module
Kit (2 x 2 GB)
|
AD197A
|
Quickspecs
System Unit |
Dimensions (HxWxD)
|
1.69 x 10.29 x 28.00
in (4.29 x 26.14 x 71.1 cm) |
Weight (maximum)
|
9.43 kg (20.8 lb) |
|
Temperature Range*
|
Operating
|
50° to 95° F (10° to
35° C) |
Shipping
|
-40° to 140° F (-40°
to 60° C) |
Storage
|
-4 to 140° F (-20° to 60°
C) |
Relative Humidity**
(non-condensing)
|
Operating
|
10% to 90% |
Shipping
|
10% to 90% |
|
Storage
|
10% to 95% |
Wet Bulb Temperature
|
Maximum |
86° F (30° C) |
*NOTE:
All temperature ratings shown are for sea level. An altitude derating of
1° C per 304.8 m (1.8° F per 1,000 ft) to 3048 m (10,000 ft) is
applicable. No direct sunlight allowed. Upper operating limit is 3,048m
(10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000
ft) or 30.3 KPa/4.4 psia.
**NOTE: Storage maximum humidity of 95% is based on a maximum temperature
of 45° C (113° F). Altitude maximum for storage corresponds to a
pressure minimum of 70 KPa. |
|
Hot Pluggable Ultra320
SCSI Hard Drive |
36.4 GB 15K
286776-B22 |
Capacity
|
36419.2 MB |
Height
|
1.0 in (2.54 cm) |
Width
|
4.0 in (10.16 cm) |
Interface
|
Ultra320 SCSI |
Transfer Rate Synchronous (Maximum) |
320 MB/s |
Seek Time
(typical reads, including settling)
|
Single Track |
0.4 ms |
Average |
3.8 ms |
Full-Stroke |
8.0 ms |
Rotational Speed |
15,000 rpm |
Physical Configuration
|
Bytes/Sector
|
512 |
Logical Blocks |
71,132,000 |
Operating Temperature |
50° to 95° F
(10° to 35° C) |
|
Environment-friendly Products
and Approach |
End-of-life Management and Recycling |
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go
to https://www.hp.com/go/green.
To recycle your product, please go to: https://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will
be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: https://www.hp.com/go/green.
These instructions may be used by recyclers and other WEEE treatment facilities
as well as HP OEM customers who integrate and re-sell HP equipment.
|
|
|
