   Proliant ML330 G6 QuickSpecs  US QuickSpecs
  ML330 G6 Hard Drives   ML330 G6 Processors   ML330 G6 Memory
  ML330 G6 Controllers   ML330 G6 Networking   ML330 G6 Power Supplies
  ML330 G6 Quickspecs   ML330 G6 Quickspecs-Options   ML330 G6 Options
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Proliant ML330 G6 Overview

HP ProLiant ML330 Generation 6 (G6)


The HP ProLiant ML330 G6 is a dual processor tower platform which is built on the latest Intel Xeon processors with QPI technology to create a unique system architecture. This unique architecture allows the businesses to scale their businesses as needed so they can optimize their IT spending dollars. The HP ProLiant ML330 G6 delivers to businesses the industry's most powerful embedded management technology with the HP Integrated Lights-Out 2 (iLO 2), which allows them to manage the servers anytime and from anywhere.

Proliant ML330 G6 Front View: Proliant ML330 G6 Rear View:
1. Power supply 1. Power supply 1
2. Expansion slots 2. Optional power supply for redundancy
3. First processor socket 3. Expansion slots
4. Nine DIMM slots (for 1st processor) 4. UID button/LED
5. Video port 5. Video ports
6. Hard drive bays 5-8 6. USB ports (4)
7. Hard drive bays 1-4 7. PS/2 keyboard port
8. LED indicators and power button 8. PS/2 mouse port
9. USB connectors (2) 9. Network port 1 (shared iLO management port)
10. Removable media bays (2) 10. Network port 2
11. Optical drive bay 11. Serial port
12. Front system fans (2) 12. Dedicated iLO2 management port (optional)
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Six-Core Processors
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W)
Intel® Xeon® Processor E5649 (2.53 GHz, 12MB L3 Cache, 80W)
Intel® Xeon® Processor E5645 (2.40 GHz, 12MB L3 Cache, 80W)
Quad-Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W)
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W)
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W)
Intel® Xeon® Processor E5607 (2.26 GHz, 8MB L3 Cache, 80W)
Intel® Xeon® Processor E5606 (2.13 GHz, 8MB L3 Cache, 80W)
Intel® Xeon® Processor E5603 (1.60 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W)
Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor W3540 (2.93 GHz, 8MB L3 Cache, 130W)
Intel® Xeon® Processor W3520 (2.66 GHz, 8MB L3 Cache, 130W)
Dual-Core Processors
Intel® Xeon® Processor E5503 (2.00 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W)
Intel® Xeon® Processor W3505 (2.53 GHz, 4MB L3 Cache, 130W)
Intel® Xeon® Processor W3503 (2.40 GHz, 4MB L3 Cache, 130W)
NOTE: For the Intel 5500 and 5600 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

Cache Memory
One of the following depending on Model
12MB (1x 12MB) level 3 cache
NOTE: For X5600 and E5600 series processors.
8MB (1 x 8MB) Level 3 cache
NOTE: For E5606/E5607/E5540/E5530/E5520/W3540/W3520 processors.
4MB (1 x 4MB) Level 3 cache
NOTE: For E5603/E5507/E5506/E5504/E5503/E5502/W3505/W3503 processors.

Chipset Intel® 5500 Chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

Upgradeability Upgradeable to 2 processors (2, 4, or 6 core)

Memory Protection Mirroring
Lock-step mode
Advanced ECC
Online Spare (Requires X5600 or E5600 processor family)
NOTE: Xeon W3500 processor family does not support any of above advanced features.

Memory
One of the following depending on model
Type DDR3 Registered (RDIMM) and Unbuffered (UDIMM)
Standard (Performance Model) 6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Base Models) 4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
4GB (2 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
Standard (Entry Models) 2GB (1 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
2GB (1 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
Maximum (RDIMM) 192GB (12 DIMM slots x16GB) for Registered Memory configurations
Maximum (UDIMM) 48GB (12 DIMM slots x 4GB) for Unbuffered Memory configurations
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
NOTE: If only one processor is installed, only half the DIMM slots are available

Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter

Expansion Slots
NOTE: Four total expansion slots. One (1) PCI-Express x8 Gen1 (x1 speed); One (1) PCI-Express x16 Gen2 (x16 speed); Two (2) PCI-Express x8 Gen2 (x4 speed). Optional PCI-X Expander provides additional two (2) 64-bit/100-MHz PCI-X slots by using a single PCI Express slot (only on slot 5).
  Expansion
Slot #
Technology Bus Width** Connector Width Bus Number* Form Factor Notes
6 PCI Express Gen2 x4 x8 4 Standard Height/ Half Length
5 PCI Express Gen2 x4 x8 10 Standard Height/ Half Length
4 PCI Express Gen2 x16 x16 13 Standard Height/Length
3 PCI Express Gen1 x1 x8 7 Standard Height/Length
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.

Storage Controller Entry Models Non hot plug SATA model with HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
Base Models Hot plug SAS model with integrated HP Smart Array P410/Zero memory SAS Controller (RAID 0/1/1+0)
Hot plug SATA model with integrated HP Smart Array B110i SATA RAID controller and hot plug advanced key
Performance Models Hot plug SATA model with integrated HP Smart Array B110i SATA RAID controller and hot plug advanced key
Available upgrades: 256MB, 512MB with BBWC, 512MB with FBWC, 1G with FBWC, Battery kit upgrade (for the 256MB cache), and Smart Array Advanced Pack (SAAP)

Internal Storage Devices Diskette Drive
None
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Hard Drives
One of the following depending on Model
Hot Plug Model: None ship standard
Non-Hot Plug Model: HP 250GB 3G SATA 7.2K NHP 3.5" ETY HDD

Maximum Internal Storage Hot Plug LFF SATA 16TB 8 x 2TB
Hot Plug LFF SAS 16TB 8 x 2TB

Interfaces Serial 1
Network RJ-45
3 (1 dedicated for HP Integrated Lights-Out 2 (iLO 2)
Keyboard
1
Pointing Device (Mouse)
1
Graphics 1
SD Slot 1 (internal)
USB 2.0 Ports 8 (2 front, 4 rear, 2 internal)
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-
support.html
.

Industry Standard Compliance

ACPI V2.0 Compliant

PCI-Express Gen2
PXE Support
WOL Support
PCI-X 1.0a Compliant
Microsoft® Logo certifications
USB 2.0

Server Power Cords

NOTE: If customers require a power cord, they can check the power cord matrix for the appropriate sku. Please see the following power cord matrix for details: http://www.hp.com/go/powercordmatrix


Common Slot Power Supplies

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your need. The HP Power Advisor is located at www.hp.com/go/hppoweradvisor

HP has a new design for ProLiant power supplies. The new Common Slot (CS) Power Supply provides the customer with commonality in power supplies across multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers come with or are compatible with high-efficiency HP CS Power Supplies. These power supplies are designed to provide high-efficiency power without degrading performance of the ProLiant server. HP CS Power Supplies options for this server have efficiency ratings up to 92%. There are three Right Size power options available, depending on the configuration of your server. To make sure you select the correct power supply to meet your configuration, we suggest that you use the HP Power Advisor to decide the "Right-Size" for your configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and Redundant.

HP's ProLiant CS Power supplies meet multiple Energy Efficiency Initiatives, including Climate Savers Computing Initiative GOLD, ECOS Consulting 80PLUS GOLD and they meet the standard specifications for Energy Star for Servers Power Supply requirements.


System Fans

3 fans ship standard. System supports a total of 4 fans.
NOTE: Does not include power supply or processor heat sink fans. Processor heat sink fans are packed in the processor option kit.
NOTE: If customer orders the standalone redundant fan option kit, he/she will receive two (2) fans in a two-fan packaged box. Only one (1) fan is required for system redundancy. The other one can be saved as a spare part. If customer orders the redundant fan kit along with the server, he/she will not be receiving the extra fan.


Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware
Citrix Essentials for XenServer

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/ML330G6.

Graphics

Integrated ATI RN50, 64MB video standard

  • 16 bit color: maximum resolution of 1600 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via HP Integrated Lights-Out 2 (iLO 2) remote console is 1280 x 1024.


Form Factor

Tower (5U)

NOTE: Rack mounting available via HP Tower to Rack Conversion Tray, Universal Kit. Please see the options section in this QuickSpecs:

  • Square or round hole racks 24"- 36" deep, including HP Rack System /E and HP Systems
  • Telco racks with 3rd part option kit from Rack Solutions www.hp.com/go/rackandpower

HP Insight management software HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.

The foundation pack includes:

  • HP SmartStart
  • HP Management DVD
  • HP ProLiant Smart Update Firmware DVD

SmartStart version supported (minimum): SmartStart 8.25
http://www.hp.com/servers/smartstart

NOTE: In an effort to support reducing our environmental impact, the HP ProLiant Essentials Foundation Pack media will be available as a selectable option for this server at time of order of a Factory Integrated Model. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out 2 (iLO 2)

HP Integrated Lights-Out 2 (iLO 2) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP iLO 2 functions without additional software and can be accessed from any location via a web browser. HP iLO 2 works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: www.hp.com/go/iLO


Intelligent Manageability

HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)
Dynamic power capping (with 750W PSU)


Security Power-on password
Setup password
Serial interface control
Power switch security
Front bezel/side access panel Lock
Padlock and Kensington lock available
Keyboard/Mouse/USB port lock

Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Optional Features

HP Insight management software HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is advanced infrastructure management software that enables IT staff to instantly adjust their environments to meet dynamic business demands by provisioning, optimizing and protecting complex infrastructure in minutes. It's a powerful toolkit, integrated-by-design, that accelerates complex technology projects and simplifies daily operations, transforming data center economics. With Insight Dynamics IT professionals can plan capacity and power continuously, balance workloads across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Enterprise Configurator The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs:.

HP Technology Services meets business challenges with services offered in three packages - Optimized Care Package, Standard Care Package, and Basic Care Package - available for each product group. Such packaged solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support packages for servers, storage, networking and software.


Optimized Care Optimized Care Package: Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP Critical Advantage
Provides end-to-end infrastructure support solution for business critical applications running on virtualized/x86 infrastructures, enabling the customers to cost effectively build, operate, and continuously improve their IT environment
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW

Additional Services
: Microsoft or Linux or VMware education courses + Facility & technology environmental assessment services + Energy Efficiency Design, Factory Express

Standard Care Standard Care Package: Package that maintains high level of server availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 hours of the initial service request to the HP Global Solution Center
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services
: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up, and Software Support; Install and Startup Services for Insight Control; Microsoft or Linux or VMware education courses; +30 Proactive Select Credits, Factory Express

Basic Care

Basic Care Package: delivers minimum recommended support service level

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

HP Installation and Startup for Insight Control Software
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series servers or HP BladeSystem servers
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); +10 Proactive Select Credits, Factory Express


Insight Remote Support

The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable 24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all warranty, HP Care Pack Service, and service agreement customers.


For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
Entry Models

Quad-Core Models
HP ProLiant ML330 G6 E5504 1P 2GB-R Non-hot Plug SATA 250GB 460W PS Entry Server

504055-001

Processor(s)

(1) Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W)

Cache Memory 4MB (1 x 4MB) Level 3 cache
Memory 2 GB (1 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/0+1)
Hard Drive One (1) 250GB 3G SATA 7.2K NHP 3.5" ETY HDD
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Quad-Core Models
HP ProLiant ML330 G6 E5603 1P 2GB-U B110i Non-hot Plug SATA 250GB 460W PS Server

637079-001

Processor(s)

(1) Intel® Xeon® Processor E5603 (1.60 GHz, 4MB L3 Cache, 80W)

Cache Memory 4MB (1 x 4MB) Level 3 cache
Memory 2 GB (1 x 2 GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
NOTE: 12 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/0+1)
Hard Drive One (1) 250GB 3G SATA 7.2K NHP 3.5" ETY HDD
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply 460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Base Models

Quad-Core Models
HP ProLiant ML330 G6 E5506 1P 4GB-R P410/ZM Hot Plug SAS/SATA 460W PS Base Svr

504056-001

Processor(s)

(1) Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W)

Cache Memory 4MB (1 x 4MB) Level 3 cache
Memory 4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller HP Smart Array P410/Zero memory Controller (RAID 0/1/0+1)
Hard Drive None ship standard
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Quad-Core Models
HP ProLiant ML330 G6 E5507 1P 4GB-R B110i Hot Plug SATA LFF 460W PS Base Server

600910-001

Processor(s)

(1) Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W)

Cache Memory 4MB (1 x 4MB) Level 3 cache
Memory 4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced key (RAID 0/1/0+1)
Hard Drive None ship standard
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Quad-Core Models
HP ProLiant ML330 G6 E5606 1P 4GB-U B110i 460W PS Server

637080-001

Processor(s)

(1) Intel® Xeon® Processor E5606 (2.13 GHz, 8MB L3 Cache, 80W)

Cache Memory 8MB (1 x 8MB) Level 3 cache
Memory 4 GB (2 x 2 GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
NOTE: 12 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced key (RAID 0/1/0+1)
Hard Drive None ship standard
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Performance Model

Quad-Core Models
HP ProLiant ML330 G6 E5620 1P 6GB-R B110i Hot Plug SATA LFF 460W PS Perf Server

600911-001

Processor(s)

(1) Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W)

Cache Memory 12MB (1 x 12MB) Level 3 cache
Memory 6 GB (3 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.
Network Controller Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced key (RAID 0/1/0+1)
Hard Drive None ship standard
Internal Storage 8TB LFF SAS
8TB LFF SATA
Optical Drive HP Half-Height SATA DVD-ROM Optical Drive
Power Supply 460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Smart Buys

The ProLiant Smart Buy program offers a collection of promotional server and option products that are configured with SMB in mind, offered at discounted prices, and positioned for quick delivery. Smart Buy server offers are available for a limited time only.

S-Buy ML330G6 E5504 HP 250GB SATA Server
517609-005

Processor(s)

(1) Intel® Xeon® Processor E5504 (2.00 GHz, 80W, DDR3-800)

Cache Memory 4MB Level 3 cache

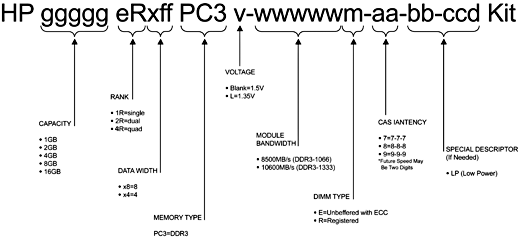

Memory 2 GB (2Rx8 PC3-10600R-9)
Network Controller Embedded NC326i PCl Express Dual Port Gigabit Server Adapter
Storage Controller Smart Array P410i/ZM Controller (RAID 0/1/1+0)
Hard Drive (1) HP 250GB 3G SATA 7.2K 3.5" MDL HDD included
Internal Storage Up to 4 standard, up to 8 with addition of second HP drive cage
Optical Drive Half-Height SATA DVD-ROM Drive
PCI-Express Slots Four expansion slots (three PCI-Express Gen2, one PCI-Express Gen1)
Power Supply (1) HP 750W CS HE Power Supply Kit (RPS enablement kit included)
Fans 3 fans ship standard, 4 fans total supported (optional (1) redundant fan)
Form Factor Tower (5U)

S-Buy ML330G6 E5506 HP 146GB SAS Server
517610-005

Processor(s)

(1) Intel® Xeon® Processor E5506 (2.13 GHz, 80W, DDR3-800)

Cache Memory 4MB Level 3 cache
Memory 2 GB (2Rx8 PC3-10600R-9)
Network Controller Embedded NC326i PCl Express Dual Port Gigabit Server Adapter
Storage Controller Smart Array P410i/ZM Controller (RAID 0/1/1+0)
Hard Drive (1) HP 146GB 3G 15K 3.5" DP SAS ENT HDD included
Internal Storage Up to 4 standard, up to 8 with addition of second HP drive cage
Optical Drive Half-Height SATA DVD-ROM Drive
PCI-Express Slots Four expansion slots (three PCI-Express Gen2, one PCI-Express Gen1)
Power Supply (1) HP 750W CS HE Power Supply Kit (RPS enablement kit included)
Fans 3 fans ship standard, 4 fans total supported (optional (1) redundant fan)
Form Factor Tower (5U)

S-Buy ML330G6 E5520 HP 2x250GB SATA SBS 2008 Server
517611-005

Processor(s)

(1) Intel® Xeon® Processor E5520 (2.26 GHz, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

Cache Memory 8MB Level 3 Cache
Memory 4GB (2x2GB 2Rx8 PC3-10600R-9)
Network Controller Embedded NC326i PCl Express Dual Port Gigabit Server Adapter
Storage Controller Smart Array P410i/ZM Controller (RAID 0/1/1+0)
Hard Drive (2) HP 250GB 3G SATA 7.2K 3.5" MDL HDD included
Internal Storage Up to 4 standard, up to 8 with addition of second HP drive cage
Optical Drive Half-Height SATA DVD-ROM Drive
PCI-Express Slots Four expansion slots (three PCI-Express Gen2, one PCI-Express Gen1)
Power Supply (1) HP 750W CS HE Power Supply Kit (RPS enablement kit included)
Fans 3 fans ship standard, 4 fans total supported (optional (1) redundant fan)
Form Factor Tower (5U)
Operating System Windows Small Business Server 2008

S-Buy ML330G6 E5506 HP 1x250GB SATA Server
601565-005

Processor(s)

(1) Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)

Cache Memory

4MB Level 3 Cache

Memory

2GB (1x2GB 2Rx8 PC3-10600R-9)

Network Controller

Embedded NC326i PCl Express Dual Port Gigabit Server Adapter

Storage Controller

Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced key (RAID 0/1/0+1)

Hard Drive

(1) HP 250GB 3G SATA 7.2K 3.5" MDL HDD included

Internal Storage

8TB LFF SAS
8TB LFF SATA

Optical Drive

Half-Height SATA DVD-RW Drive

Power Supply (1) 460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard, 4 fans total supported (optional (1) redundant fan)
Form Factor Tower (5U)

S-Buy ML330G6 E5507 HP 1x146GB SAS Server
601566-005

Processor(s)

(1) Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W, DDR3-800)

Cache Memory

4MB (1 x 4MB) Level 3 cache

Memory

2GB (1 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.

Network Controller

Embedded NC326i PCI Express Dual Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410 Controller

Hard Drive

(1) HP 146GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

Internal Storage

8TB LFF SAS
8TB LFF SATA

Optical Drive

HP Half-Height SATA DVD-ROM Optical Drive

Power Supply (1) 460 Watt power supply (NHP, Non Redundant)
Fans 3 fans ship standard
Form Factor Tower (5U)
Warranty

Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

S-Buy ML330G6 E5620 HP 2x250GB SATA SBS 08 Server
601567-005

Processor(s)

(1) Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066)

Cache Memory

12MB (1 x 12MB) Level 3 cache

Memory

4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
NOTE: 18 DIMM slots.

Network Controller

Embedded NC326i PCI Express Dual Port Gigabit Server Adapter

Storage Controller

Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced key (RAID 0/1/0+1)

Hard Drive

(2) HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

Internal Storage

8TB LFF SAS
8TB LFF SATA

Optical Drive

HP Half-Height SATA DVD-ROM Optical Drive

Power Supply

(1) HP 750W CS HE Power Supply with HP Redundant Power Supply Enablement Kit

Fans 3 fans ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
Operating System Windows Small Business Server 2008

S-Buy ML330 G6
E5606 HotPlug Server

654077-S01

Processor(s)

(1) Intel® Xeon® Processor E5606 (2.13 GHz, 8MB L3 Cache, 80W)

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

4 GB (1 x 4 GB) PC3-10600R (DDR3-1333) Registered DIMMs

Network Controller

Embedded NC326i PCI Express Dual Port Gigabit Server Adapter

Storage Controller

Embedded HP Smart Array B110i SATA RAID Controller Hot plug advanced pack (RAID 0/1/0+1)

Hard Drive

None ship standard, HP HotPlug HDD Drive Cage Kit, LFF

Optical Drive

HP Half-Height SATA DVD-RW Optical Drive

Power Supply

460 Watt power supply (NHP, Non Redundant)

Fans 3 fans ship standard
Accessories PS/2 Keyboard and Mouse ship standard
Form Factor Tower (5U)
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Configure-to-order (CTO) servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration (choose one of the following configurable models)
HP Models HP ProLiant ML330 G6 Configure-to-order Tower Server 504271-B21
Includes:
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Integrated Smart Array B110i SATA RAID Controller
Four (4) PCIe slots
Eight (8) USB ports
Tower Form Factor
PS/2 Keyboard and Mouse (selection required)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors Six-Core Processors
HP ML330 G6 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) FIO Processor Kit 637700-B21
HP ML330 G6 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) FIO Processor Kit 637701-B21
Quad-Core Processors
HP ML330 G6 Intel® Xeon® E5620 (2.40GHz/4-core/12MB/80W) FIO Processor Kit 601052-B21
HP ML330 G6 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) FIO Processor Kit 637702-B21
HP ML330 G6 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) FIO Processor Kit 637703-B21
HP ML330 G6 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) FIO Processor Kit 637704-B21
HP ML330 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) FIO Processor Kit 535585-B21
HP ML330 G6 Intel® Xeon® E5507 (2.26GHz/4-core/4MB/80W) FIO Processor Kit 601051-B21
HP ML330 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit 535582-B21
HP ML330 G6 Intel® Xeon® E5504 (2.0GHz/4-core/4MB/80W) FIO Processor Kit 535581-B21
Dual-Core Processors
HP ML330 G6 Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) FIO Processor Kit 601050-B21
NOTE: Xeon E5500 DP family supports both Registered DIMMs and Unbuffered DIMMs. Xeon W3500 UP family supports only Unbuffered DIMMs.
HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.

HP Drive Cage Options Non-Hot Plug HDD Model
HP SATA 5U G6 Module FIO Kit 500448-B21
Hot Plug HDD Model
HP Hot Plug HDD Drive Cage Kit 487737-B21
NOTE: Hot Plug SATA/SAS model and Non-hot plug SAS model requires a HP SATA or SAS RAID Controller.
NOTE: Non-hot plug model supports up to 4 drives only and at least one NHP hard drive is required.
NOTE: Embedded B110i controller can be enabled with hot plug functionality with the purchase of Smart Array Hot Plug Advance Pack (TC421A) and at least 1 hot plug HDD.
NOTE: For 8 LFF Drive maximum support, 2 Hot Plug HDD Drive Cages and Smart Array controller 8 ports or 2x 4 ports.

HP Hard Drives

NOTE: Hard drive is ONLY required if HP SATA 5U G6 Module FIO Kit (P/N: 500448-B21) is selected above.
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard Drives are only Required if Non-Hot Plug Drive Cage Option (P/N: 500448-B21) is selected.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.


SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516830-B21 516830-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516826-B21 516826-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516824-B21
NOTE: Non-hot plug SAS drives require the Non-hot plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 507772-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
HP Power supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 460W Factory Integrated Power Supply Kit 500447-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit
NOTE: The HP 750W power supply requires purchasing the Redundant Power Supply Enablement Kit (P/N 508544-B21).
512327-B21 512327-B21
Power Options
HP 5U G6 Redundant Power Supply Enablement Kit
NOTE: The Redundant Power Supply Enablement kit does not integrate any power supply. Two (2) units of 750W power supply are required to achieve redundancy.
508544-B21

Step 3: Choose Additional Factory Integratable Options
HP Storage Controllers NOTE: SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
NOTE: HP NHP Internal SAS/SATA 4 Port Cable Kit (487734-B21) is required when adding Smart Array P410 Controller on Non-Hot Plug SATA/SAS server models.

HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller 491191-B21 491191-B21
HP Smart Array P410/ZM 2-ports Int PCIe x8 FIO SAS Controller
HP Smart Array P410/256 2-ports Int PCIe x8 FIO SAS Controller 491195-B21 491195-B21
HP Smart Array P411/256 2-ports Ext PCIe x8 FIO SAS Controller
NOTE: SAS Controller supports RAID 0/1/1+0/5.
491193-B21 491193-B21
HP Insight Software HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License 582765-B21
HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License TC203A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" or "Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

ML330 G6 Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Processors Six-Core Processors
HP ML330 G6 Intel® Xeon® X5650 (2.66GHz/6-core/95W/12MB) Processor Kit 603978-B21
HP ML330 G6 Intel® Xeon® E5649 (2.53GHz/6-core/12MB/80W) Processor Kit 637705-B21
HP ML330 G6 Intel® Xeon® E5645 (2.40GHz/6-core/12MB/80W) Processor Kit 637706-B21
Quad-Core Processors
HP ML330 G6 Intel® Xeon® E5640 (2.66GHz/4-core/80W/12MB) Processor Kit 607122-B21
HP ML330 G6 Intel® Xeon® E5630 (2.53GHz/4-core/80W/12MB) Processor Kit 603977-B21
HP ML330 G6 Intel® Xeon® E5620 (2.40GHz/4-core/80W/12MB) Processor Kit 603976-B21
HP ML330 G6 Intel® Xeon® E5607 (2.26GHz/4-core/8MB/80W) Processor Kit 637707-B21
HP ML330 G6 Intel® Xeon® E5606 (2.13GHz/4-core/8MB/80W) Processor Kit 637708-B21
HP ML330 G6 Intel® Xeon® E5603 (1.60GHz/4-core/4MB/80W) Processor Kit 637709-B21
HP ML330 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit 512716-B21
HP ML330 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit 512715-B21
HP ML330 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit 512714-B21
HP ML330 G6 Intel® Xeon® E5507 (2.26 GHz/4-core/80W/4MB) Processor Kit 603975-B21
HP ML330 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit 512713-B21
HP ML330 G6 Intel® Xeon® E5504 (2.0GHz/4-core/4MB/80W) Processor Kit 512712-B21
Dual-Core Processors
HP ML330 G6 Intel® Xeon® E5503 (2.0GHz/2-core/80W/4MB) Processor Kit 603974-B21
HP ML330 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) Processor Kit 512711-B21
NOTE: Each processor kit includes (1) processor/(1) heatsink/ (1) Processor board. The processor board is integrated with (1) processor socket and (9) DIMM slots.
NOTE: When two (2) Xeon E5500 processors are installed, the system QPI will be locked at 4.8 GT/s.
NOTE: Xeon E5500 DP family supports both Registered DIMMs and Unbuffered DIMMs. Xeon W3500 UP family supports only Unbuffered DIMMs.


HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-S21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
HP S-Buy 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-S21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP S-Buy 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-S21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP S-Buy 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-S21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
HP S-Buy 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-S21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP S-Buy 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-S21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP S-Buy 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-S21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
HP S-Buy 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500672-S21

NOTE: For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.


HP Optical Drives HP Half-Height SATA DVD-ROM Optical Drive
447326-B21
HP Half-Height SATA DVD RW Optical Drive
447328-B21

HP Drive Cage Options HP 5U Hot Plug HDD Drive Cage Kit
487737-B21
NOTE: To reach maximum 8 LFF Drive support, it is required to purchase 2 Hot Plug HDD Drive Cages and Smart Array controller 8 ports or 2x 4 ports.

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: SAS Non-Hot Plug and SAS Hot Plug Models require HP SAS Smart Array Controller.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 516814-B21 516814-B21
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516830-B21 516830-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516826-B21 516826-B21
HP 300GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive 516824-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507616-B21 507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507614-B21 507614-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 507632-B21 507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 454146-B21 454146-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive S-Buy 454146-S21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 458928-B21 458928-B21
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507774-B21 507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 507772-B21 507772-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive 458941-B21 458941-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 571230-B21 571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 458945-B21 458945-B21
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 571232-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1yr Warranty Hard Drive 458947-B21 458947-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

HP Networking Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter 435508-B21 435508-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21 593722-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter 394793-B21 394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter 394791-B21 394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter 538696-B21 538696-B21
HP NC382T PCIe Dual Port Multifunction Gigabit Server Adapter 458492-B21 458492-B21
10 Gigabit Ethernet Adapters
NOTE: No more than two 10GbE I/O devices are supported in a single ProLiant server.
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC522SFP Dual Port 10GbE Server Adapter 468332-B21 468332-B21
HP NC523SFP 10Gb 2-port Server Adapter 593717-B21
HP NC550SFP Dual Port 10GbE Server Adapter 581201-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs

HP I/O Expansion Options HP Dedicated iLO Management Port Option
514206-B21
HP Non-Hot Plug Internal SAS/SATA 4 Port Cable Kit
NOTE: SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
487734-B21
HP PCI-X Expander Kit (2 x 64-bit 100MHz PCI-X slots) 488413-B21

HP Power Supplies NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.
HP 750W Common Slot Gold Hot Plug Power Supply Kit
NOTE: The HP 750W power supply requires purchasing the Redundant Power Supply Enablement Kit (P/N 508544-B21).
512327-B21 512327-B21
Power Options
HP 5U G6 Redundant Power Supply Enablement Kit
NOTE: The Redundant Power Supply Enablement kit does not integrate any power supply. Two (2) units of 750W power supply are required to achieve redundancy.
508544-B21

HP Cooling Options HP 5U G6 Redundant fan kit
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC cables.
513927-B21
NOTE: If customer orders the standalone redundant fan option kit, he/she will receive two (2) fans in a two-fan packaged box. Only one (1) fan is required for system redundancy. The other one can be saved as a spare part.
If customer orders the redundant fan kit along with the server, he/she will not be receiving the extra fan.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License T9074BAE
HP Smart Buy Insight Control suite, No Media, Electronic License including 1 year of 24x7 Technical Support and Updates T9074ASE
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License TC278AAE
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License
452148-B22
HP Smart Buy Insight Control including 1yr 24x7 Technical Support and Updates Single Server License 452148-S22
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License TC275A
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains HP Systems Insight Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for Microsoft System Center, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.
436222-B21
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License TC213AAE
HP Smart Buy Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic TC213ASE
HP Insight Control for Linux including 1yr 24x7 Support Single Server License TC209A
HP Insight Control for Linux Media Kit
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_na/13019_na.html

HP Integrated Lights-Out (iLO) Advanced
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License TA850AAE
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License 512485-B21
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_na/12362_na.html

HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License 452151-B21
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html


HP Security - TPM HP Trusted Platform Module Option Kit 488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLockerô Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or loosing the key could result in data loss.

HP Storage Controllers SAS Controllers
NOTE: SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
Smart Array P800 Controller
HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller 381513-B21 381513-B21
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462828-B21 462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller 462834-B21 462834-B21
Smart Array P410 Controller
NOTE: HP NHP Internal SAS/SATA 4 Port Cable Kit (487734-B21) is required when adding Smart Array P410 Controller on Non-Hot Plug SATA/SAS server models.

HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller 462862-B21 462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller 462864-B21 462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller 578230-B21 578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller 572532-B21 572532-B21
Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller 462830-B21 462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller 462832-B21 462832-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller 578229-B21 578229-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller 572531-B21 572531-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller 487204-B21 487204-B21
Upgrade Options
HP Mini SAS to Mini SAS 33in Cable Assembly
NOTE: This cable option kit is needed to upgrade from hot plug SATA to hot plug SAS.
496014-B21

HP Hot Plug Internal SATA to Mini SAS Cable Kit
NOTE: This cable needed when upgrade from non-hot plug SATA to hot plug SATA.
600732-B21
HP 256MB P-series Cache Upgrade
NOTE: Supported on HP Smart Array P212 and P410/ZM Controllers only.
462968-B21 462968-B21
HP 512MB P-Series Battery Backed Write Cache Upgrade 462967-B21 462967-B21
HP 650 mAh P-Series Battery
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212, P410, and P411 Controllers only.
462969-B21
HP 8484 to Mini SAS 33in Cable Assembly
NOTE: Cable used to connect the Smart Array P800 Controller to internal hard disk drives on selected HP ProLiant G6 Servers.
591734-B21
HP 512MB Flash Backed Write Cache 534916-B21 534916-B21
HP 1GB Flash Backed Cache 534562-B21 534562-B21
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License
NOTE: This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.
516471-B21
HP Smart Array Hot Plug Advance Pack for B110i w/1y 24x7 Supp Physical 1 Svr LTU TC421A
NOTE: Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12616_na/12616_na.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_na/13203_na.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_na/13201_na.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_na/13202_na.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_na/13558_na.html
(Smart Array P812 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_na/13200_na.html
(Smart Array Advanced Pack)
http://h18000.www1.hp.com/products/quickspecs/13495_na/13495_na.html
(Smart Array Hot Plug Advance Pack for B110i)

SAS HBA
HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter 488765-B21 488765-B21
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA
NOTE: This is only approved for the HP StorageWorks P2000 G3 SAS Modular Smart Array.
614988-B21 614988-B21
NOTE: Please see the HBA QuickSpecs for additional information: http://h18004.www1.hp.com/products/quickspecs/13082_na/13082_na.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/13651_na/13651_na.html
(SC08e 6Gb HBA)

SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE: Recommended for SCSI tape drive connection.
412911-B21 412911-B21
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)


HP Backup & Recovery Software Data Protector Express
HP Data Protector Express V5.0 for 1 Server E-LTU
TC330AAE
HP Data Protector Express V5.0 for 3 Servers E-LTU
TC331AAE
HP Data Protector Express V5.0 for 10 Servers E-LTU TC332AAE
HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU TC333AAE
NOTE: One of these Data Protector Express base products is required. To see available options: http://www.hp.com/go/dataprotectorexpress

Tape Backup NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP StorageWorks tape backup products see: http://www.hp.com/go/connect.
Rack-Mount Tape Solutions
HP StorageWorks DAT 160 SCSI Internal Tape Drive Q1573A
HP StorageWorks DAT 160 USB Internal Tape Drive Q1580A
HP StorageWorks DAT 320 USB Internal Tape Drive AJ825A
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation.
AK377A
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
AJ830A
HP StorageWorks Ultrium 448 SAS Internal Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
DW085A
HP StorageWorks Ultrium 920 SAS Internal Tape Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
EH847A
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal WW Tape Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
EH919A
HP StorageWorks LTO-4 Ultrium 1840 SAS External WW Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
EH861A
HP StorageWorks LTO-5 Ultrium 3000 SAS Internal Tape Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
EH957A
HP StorageWorks LTO-5 Ultrium 3000 SAS External Tape Drive
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
EH958A
HP StorageWorks 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader
NOTE: Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21)
for connection.
BL536A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library AK378A
HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
BL537A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library AK380A
HP StorageWorks MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library
NOTE: Recommended to use HP P212 SAS Smart Array Controller (462828-B21 462828-B21) for connection.
BL538A

Disk Backup NOTE: For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk backup products see: http://www.hp.com/go/connect.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE: 1.5TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ001B
HP StorageWorks D2D2504i Backup System
NOTE: 3.0TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.
EJ002B
HP StorageWorks D2D4112 Backup System
NOTE: 9.0TB (expandable to 18.0TB) of useable network disk backup capacity. Fibre Channel SAN connected appliance. Direct server attach is not supported, requires connection via SAN fabric.
EH993B
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX160 Internal Removable Disk Backup System
NOTE: 160GB of disk capacity per data cartridge.
AJ765A
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 320GB of disk capacity per data cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.
AJ934A
HP StorageWorks RDX 1TB Internal Removable Disk Backup System
NOTE: For installation into 1U USB Rack-Mount Kit (A8007A A8007A). No peripheral bay available for drive installation into the server. 1 TB of disk capacity per data cartridge.
BV847A

HP StorageWorks Options StorageWorks SCSI HBA
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A AH627A

HP Disk Storage Systems MSA SAN Storage Arrays

HP StorageWorks 60 Modular Smart Array
418408-B21 418408-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12627_na/12627_na.html
HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12652_na/12652_na.html
Disk Enclosures

HP StorageWorks D2600 Disk Enclosure
AJ940A
HP StorageWorks D2700 Disk Enclosure
AJ941A
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html

HP Uninterruptible Power Systems HP Tower UPS
HP T1000 G3 UPS Models
HP T1000 G3 1000VA Tower Uninterruptible Power System AF448A
HP T1500 G3 UPS Models
HP T1500 G3 1400VA Tower Uninterruptible Power System AF450A
HP T1500 G3 UPS S-Buy AF450S
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_na/13160_na.html

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/products/ups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.


HP Rack Series HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
HP 10642 G2 Pallet Universal Rack AF001A AF001A
HP 10642 G2 Shock Universal Rack AF002A AF002A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_na/12402_na.html

NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.
NOTE: The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

HP Rack Options HP Server Console Switches
HP Server console switch 0x2x8 AF616A
HP Server console switch 0x2x16 AF617A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html

HP Server Console Switch G2 with Virtual Media & CAC
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html

HP IP Console Switch G2 with Virtual Media & CAC
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html

Rack Kit
HP Tower to Rack Conversion Tray Universal Kit 417705-B21

HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP USB 04 Standard Keyboard DT528A#ABA
HP 4GB Secure Digital Flash Media Kit
NOTE: Blank SD media device is supported for use with VMware and Citrix. SD media must be installed in the internal slot of the ProLiant server. Learn more at: http://www.hp.com/go/proliantvirtualization.
580387-B21
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21

HP Care Pack Services Hardware Services
Next Day Service, 3 Year
UM870E
4-Hour Service, 5-Day x 13-Hour Coverage, 3 Years UM872E
4-Hour Service, 7-Day x 24-Hour Coverage, 3Years UM874E
6-Hour Call to Repair, Service, 7-Day x 24-Hour Coverage, 3 Year UM876E
Other Services
4-Hour Service, 5-Day x 13-Hour Coverage, 4 Years UM880E
4-Hour Service, 7-Day x 24-Hour Coverage, 4Years UM882E
4-Hour Service, 5-Day x 13-Hour Coverage, 5 Years UM888E
4-Hour Service, 7-Day x 24-Hour Coverage, 5Years UM890E
Support Plus
Support Plus, MS, 3Years UM894E
Smart Buy Care Packs S-Buy 4-Hour Onsite Response, 13-Hour x 5-Day Coverage, 3 years
US357E
S-Buy 4-Hour Onsite Response, 24-Hour x 7-Day Coverage, 3 years
US358E
S-Buy 6-Hour Call to Repair, 24-Hour x 7-Day Coverage, 3 years US359E
NOTE: Smart Buy Care Packs can only be attached to Smart Buy SKUs
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

  • For servers with eighteen (18) memory slots:
    • There are three (3) channels per processor; six (6) channels per server
    • There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
    • Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
    • Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
  • DIMM slots that are white should be populated first
  • Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
  • Do not install DIMMs if the corresponding processor is not installed
  • If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
  • To maximize performance, balance the total memory capacity between all installed processors
  • It is not required, but it is recommended to load the channels similarly if possible
  • If any Quad rank DIMMs are installed, all channels are limited to only 2 DIMMs per channel.
  • You can only install two quad-rank DIMMs per channel
  • You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
  • Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
  • Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
  • For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
  • For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
  • Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors
  • If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of supporting 1.5V operations
DIMM slot/capacity/populated speed table
DIMM Type Registered DIMMS
(RDIMMs)
Unbuffered with ECC DIMMs
(UDIMMs)
DIMM Rank Single Rank (1R) Dual Rank (2R) Quad Rank (4R) Single Rank (1R) Dual Rank (2R)
DIMM Capacity 4GB 2GB 4GB 8GB 8GB 4GB 16GB 1GB 2GB 4GB
DIMM Native Speed (MHz) 1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
Voltage LV/Reg Reg Reg Reg LV/Reg Reg Reg Reg Reg Reg

  SLOTS THAT CAN BE POPULATED
18 slot servers 18 18 18 18 18 12 12 12 12 12

  MAXIMUM CAPACITY (GB)
  72 36 72 144 144 48 192 12 24 48

  POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
2 DIMM Per Channel 1333* 1333* 1333* 1066 1333* 800 800 1333 1333 1333*
3 DIMM Per Channel 800 800 800 800 800 n/a n/a n/a n/a n/a

NOTES:

  • PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz
  • Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
  • If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor
  • If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, the maximum speed will be 1066MHz
  • If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz
  • If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
  • Maximum memory speed will also depend on the processor installed. References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

DIMM slot and configuration diagrams

Basic memory slot & population diagram

  • Population order; start with "A" first, "B" second, "C" third, etc.
18 DIMM SLOTS (9 per CPU node)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 0 1 G 1 G Chnl 0
2 D 2 D
3 A 3 A

Chnl 1 4 H 4 H Chnl 1
5 E 5 E
6 B 6 B

Chnl 2 7 I 7 I Chnl 2
8 F 8 F
9 C 9 C


Standard memory configuration (1 CPU model)

  • 4GB, consisting of two (2) 2GB dual-rank PC3-10600 RDIMMs (Base model)
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; empty 1 G; empty Chnl 1
2 D; empty 2 D; empty
3 A; 2GB DIMM 3 A; empty

Chnl 2 4 H; empty 4 H; empty Chnl 2
5 E; empty 5 E; empty
6 B; 2GB DIMM 6 B; empty

Chnl 3 7 I; empty 7 I; empty Chnl 3
8 F; empty 8 F; empty
9 C; empty 9 C; empty


Standard memory plus optional memory (1 CPU model)

  • 60GB, consisting of two (2) 2GB RDIMMs plus seven (7) 8GB RDIMMs
    • 2x 2GB dual-rank PC3-10600 RDIMMs
    • 7x 8GB dual-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; 8GB DIMM 1 G; empty Chnl 1
2 D; 8GB DIMM 2 D; empty
3 A; 2GB DIMM 3 A; empty

Chnl 2 4 H; 8GB DIMM 4 H; empty Chnl 2
5 E; 8GB DIMM 5 E; empty
6 B; 2GB DIMM 6 B; empty

Chnl 3 7 I; 8GB DIMM 7 I; empty Chnl 3
8 F; 8GB DIMM 8 F; empty
9 C; 8GB DIMM 9 C; empty


Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration

  • 96GB, consisting of six (6) 16GB dual-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; empty 1 G; empty Chnl 1
2 D; 16GB DIMM 2 D; empty
3 A; 16GB DIMM 3 A; empty

Chnl 2 4 H; empty 4 H; empty Chnl 2
5 E; 16GB DIMM 5 E; empty
6 B; 16GB DIMM 6 B; empty

Chnl 3 7
I; empty 7 I; empty Chnl 3
8 F; 16GB DIMM 8 F; empty
9 C; 16GB DIMM 9 C; empty


UDIMM maximum configuration (1 CPU model)

  • 24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; empty 1 G; empty Chnl 1
2 D; 4GB DIMM 2 D; empty
3 A; 4GB DIMM 3 A; empty

Chnl 2 4 H; empty 4 H; empty Chnl 2
5 E; 4GB DIMM 5 E; empty
6 B; 4GB DIMM 6 B; empty

Chnl 3 7 I; empty 7 I; empty Chnl 3
8 F; 4GB DIMM 8 F; empty
9 C; 4GB DIMM 9 C; empty


Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration

  • 192GB, consisting of eighteen (12) 16GB dual-rank PC3-8500 RDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; empty 1 G; empty Chnl 1
2 D; 16GB DIMM 2 D; 16GB DIMM
3 A; 16GB DIMM 3 A; 16GB DIMM

Chnl 2 4 H; empty 4 H; empty Chnl 2
5 E; 16GB DIMM 5 E; 16GB DIMM
6 B; 16GB DIMM 6 B; 16GB DIMM

Chnl 3 7 I; empty 7 I; empty Chnl 3
8 F; 16GB DIMM 8 F; 16GB DIMM
9 C; 16GB DIMM 9 C; 16GB DIMM


UDIMM maximum configuration (2 CPU model)

  • 48GB, consisting of twelve (12) 4GB dual-rank PC3-10600 UDIMMs
  CPU1 CPU2
  slot # population order slot # population order
Chnl 1 1 G; empty 1 G; empty Chnl 1
2 D; 4GB DIMM 2 D; 4GB DIMM
3 A; 4GB DIMM 3 A; 4GB DIMM

Chnl 2 4 H; empty 4 H; empty Chnl 2
5 E; 4GB DIMM 5 E; 4GB DIMM
6 B; 4GB DIMM 6 B; 4GB DIMM

Chnl 3 7 I; empty 7 I; empty Chnl 3
8 F; 4GB DIMM 8 F; 4GB DIMM
9 C; 4GB DIMM 9 C; 4GB DIMM


NOTE: Capacity references are rounded to the common Gigabyte values.

  • 1GB = 1024MB
  • 2GB = 2048MB
  • 4GB = 4096MB
  • 8GB = 8192MB
DDR3 memory options part number decoder
Following are memory options available from HP:
HP Memory Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500656-B21 500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-B21 500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593339-B21 593339-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604504-B21 604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power Memory Kit
NOTE: Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors.
604506-B21 604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit 500666-B21 500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500668-B21 500668-B21
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500670-B21 500670-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit 500672-B21 500672-B21
NOTE: For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Storage

A
Optical Drive
B,C Removable Media Bays (2)- 1 full-height drive or 2 half-height drives
1-4 4 x 3.5" (LFF) Hot plug or Non hot-plug SATA/SAS hard drive bays (Standard)
5-8 4 x 3.5" (LFF) Hot plug SATA/SAS hard drive bays (Optional)
Drive Support


Quantity
Supported
Position
Supported
Controller
Removable Media

SATA DVD-ROM Optical Drive Up to 2 A, B Integrated SAS Controller
SATA DVD RW Optical Drive Up to 2 A, B Integrated SATA Controller

ML330 G6 Hard Drives
NOTE: Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to the HBA or Controller technical specifications for details.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Supports up to Eight (8) SAS/SATA hard drives via 2nd Hot plug Hard Disk Drive module option kit and HP Smart Array P410 Controller.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
300GB 6G SAS 15K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K DP
1TB 6G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
NOTE: Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to the HBA or Controller technical specifications for details.

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
HP Smart Array Hot Plug Advance Pack for B110i

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
500GB 3G SATA 15K
Up to 4
1-4
Embedded Smart Array B110i SATA RAID Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 15K
160GB 3G SATA 15K
Up to 4
1-4
Embedded Smart Array B110i SATA RAID Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P410/512 MB FBWC Controller
HP Smart Array P410/1G FBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller

NOTE: To support 8 drives, the purchase of the optional HP HDD cage and possibly purchase a second SATA/SAS controller are required.
NOTE: SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
NOTE: Hot Plug SATA/SAS model and Non-hot plug SAS model requires A HP SAS Controller.

Maximum Storage Capacity - SAS Models
Internal 16.0TB (8 x 2TB SAS hard drives)
Total 16.0TB (8 x 2TB SAS hard drives)
Maximum Storage Capacity - SATA Models
Internal 16.0TB (8 x 2TB SATA drives)
Total 16.0TB (8 x 2TB SATA drives)

External Storage



Quantity
Supported

Position
Supported

Host Controller or Adapter

D2700 Disk Enclosure Up to 2 External HP Smart Array P212/ 256 MB Controller
Up to 4 HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P411/512 MB FBWC Controller
HP Smart Array P411/1G FBWC Controller

Tape and Disk Backup

NOTE: For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see: http://www.hp.com/go/tape. For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: http://www.hp.com/go/connect.
  Position
Supported
Controller Controller/HBA Option Kit Part Number
HP StorageWorks SCSI Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
Internal or External HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 412911-B21
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter AH627A AH627A
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SCSI Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 412911-B21

HP StorageWorks USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or External USB 2.0 Port N/A

HP StorageWorks USB Rack Mount Kits
1U USB Rack-Mount Kit
External USB 2.0 Port N/A

HP StorageWorks SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
Internal or External HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter 416096-B21 416096-B21
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SAS Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter 416096-B21 416096-B21
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SCSI Tape Autoloaders, External
DAT 72x10 Autoloader
1/8 G2 Autoloader
External HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 412911-B21
HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter AH627A AH627A
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SCSI Tape Libraries, External
MSL2024
MSL4048
MSL8096
MSL6000
External HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter AH627A AH627A
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks SAS Tape Autoloaders and Libraries, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External HP Modular Smart Array SC44Ge 1-ports Int/1-ports Ext PCIe x8 SAS Host Bus Adapter 416096-B21 416096-B21
NOTE: Please check the full compatibility information at: http://www.hp.com/go/connect

HP StorageWorks Fibre Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for connectivity information and the supported Fibre Channel HBAs shown in this QuickSpec.

HP StorageWorks USB RDX Removable Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
Internal or External USB 2.0 port N/A

HP StorageWorks D2D Backup Systems, iSCSI
D2D2500i
D2D4000i
External Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

HP StorageWorks D2D Backup Systems, Fibre Channel
D2D4000fc
External Direct server attach is not supported, requires connection via SAN fabric. See: http://www.hp.com/go/connect
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Power Specifications

HP 460W Factory Integrated Power Supply Kit 500447-B21
Operational Input Voltage Range (Vrms) 90 to 135
Frequency Range (Nominal) (Hz) 47 to 66 Hz
Nominal Input Voltage (Vrms) 100 115 208 220 230 240
Max Rated Output Wattage Rating 460 460 460 460 460 460
Nominal Input Current (A rms) 10 10 5 5 5 5
Max Rated Input Wattage Rating (Watts) 760 760 700 700 700 700
Max. Rated VA (Volt-Amp) 850 850 830 830 830 830
Efficiency (%) 65 65 65 65 65 65
Power Factor 0.9 0.9 0.9 0.9 0.9 0.9
Leakage Current (mA) 3.5 3.5 3.5 3.5 3.5 3.5
Maximum Inrush Current (A peak) 450 450 450 450 450 450
Maximum Inrush Current duration (mS)



HP 750W Common Slot Gold Hot Plug Power Supply Kit
Part Number 512327-B21 512327-B21
Input Voltage Range ( V rms ) 100 to 240
Frequency Range (Nominal) ( Hz ) 50/60
Nominal Input Voltage ( Vrms ) 100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating 750 750 750 750 750 750 750
Nominal Input Current ( A rms ) 8.9 7.4 4.3 4.1 3.9 3.7 3.6
Maximum Rated Input Wattage Rating ( Watts ) 857 847 824 824 820 820 820
Maximum Rated VA ( Volt-Amp ) 894 884 859 854 854 854
Efficiency ( % ) 87.5 88.5 91 91 91.5 91.5 91.5
Power Factor 0.97
Leakage Current ( mA ) 0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak ) 30
Maximum Inrush Current duration ( mS ) 20
Maximum British Thermal Unit Rating ( BTU-Hr ) 2925 2892 2812 2812 2797 2797 2797


NOTE: It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your need.
The HP Power Advisor is located at: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      ML330 G6 Core Options      Additional Options      ML330 G6 Memory      Storage      Power Specifications      ML330 G6 QuickSpecs images/line.gif (50 bytes)

Quickspecs

System Unit Dimensions
(H x W x D)
(W/O foot stand)
7.87 x 16.81 x 24.13 in (200 x 427 x 613 mm)
Weight
(approximate)
Maximum:
(All hard drives, power supplies and processors installed)
66.14 lb (30 kg)
Minimum:
(One hard drive, power supply and processor installed)
35.27 lb (16 kg)
Input Requirements
(per power supply)
Rated Line Voltage 100 to 240 VAC
Rated Input Current 7.1 Amps (at 120VAC) to 3.5 Amps (at 240 VAC)
Rated Input Frequency 50 to 60 Hz
Rated Input Power 852 W
BTU Rating Maximum 460W - 1773 BTU / hr (at 120 VAC), 1715 (at 240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at 240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at 240 VAC)
Power Specifications

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: ML330 G6
- Follow the instructions of the next screens.

Power Supply Output
(per power supply)

Rated Steady-State Power

460 (750) W (at 100 VAC),
460 (750) W (at 200 VAC)

Maximum Peak Power 460 (750) W (at 100 VAC),
460 (750) W (at 200 VAC)
NOTE: See Power Supply Specifications tables for complete details on 460W PSU and optional 750W.
System Inlet Temperature Operating 50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per 1,000 ft (1.0° C per every 305 m) above seal level to a maximum of 10,000 ft (3050 m) no direct sustained sunlight . Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 86°F (30°C).
Non-Operating -22° to 140° F (-30° to 60° C)
Relative Humidity
(non-condensing)
Operating 10% to 90% relative humidity (Rh), 82.4°F (28°C) maximum wet bulb temperature, non-condensing.
Non-operating** 10% to 95% relative humidity (Rh), 101.7°F (38.7°C) maximum wet bulb temperature, non-condensing.
Altitude Operating 10,000 ft (3000m). Maximum allowable altitude change rate is 1°C per 300m.
Non-Operating 30,000 ft (9144m). Maximum allowable altitude change rate is 1°C per 300m.
Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle
(Fixed Disk Drives Spinning)

L WAd (BELS) 460W SPS (w/ non-redundant fan): 4.9B
460W SPS (w/ redundant fan): 5.1B
750W RPS (w/ non-redundant fan): 5.1B
750W RPS (w/ redundant fan): 5.3B
L-pAm 460W SPS (w/ non-redundant fan): 31.4 dBA
460W SPS (w/ redundant fan): 33.7 dBA
750W RPS (w/ non-redundant fan): 33.4 dBA
750W RPS (w/ redundant fan): 33.8 dBA
Operating
(Random Seeks to Fixed Disks)

L WAd (BELS) 460W SPS (w/ non-redundant fan): 4.9B
460W SPS (w/ redundant fan): 5.2B
750W RPS (w/ non-redundant fan): 5.3B
750W RPS (w/ redundant fan): 5.4B
L WAd (BELS) 460W SPS (w/ non-redundant fan): 31.4 dBA
460W SPS (w/ redundant fan): 33.9 dBA
750W RPS (w/ non-redundant fan): 34.6 dBA
750W RPS (w/ redundant fan): 35.2 dBA
NOTE: The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.
Emissions Classification (EMC) FCC Rating Class B
Normative Standards CISPR 22; EN55022; EN55024; 47 CFR, FCC Rules and Regulations Part 15 Subpart B;VCCI Class B ITE; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3.
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Smart Array B110i SATA RAID Controller (RAID 0,1,10) Dimensions N/A (embedded)
Disk Drive and Enclosure Protocol Support
Architecture
3.0 Gbps SATA
64-bit
SAS Connectors 4 internal x1 SATA connectors
Software Upgradeable Firmware Yes. HP Smart Array hot plug Advanced Pack No Media 1-Server license including 1yr 24x7 Technical Support
Maximum Capacity 2TB
Memory Addressing 6GB (maximum)
Logical Drives Supported 2 (maximum)
RAID Support RAID 1 (Mirroring)
RAID 0 (Striping)
RAID 10

HP 250GB 3G SATA 7.2K NHP 3.5" ETY HDD Capacity 250,059MB
Height 1.028 in (26.1 mm)
Width 4.00 in (101.6 mm)
Depth 5.787 in (147.0 mm)
Interface Serial ATA
Transfer Rate
(Maximum)
3Gb/s
Native Command Queuing Supported
Seek Time
(typical reads, including settling)
Single Track 2.0 ms
Average 11 ms
Full-Stroke 21.0 ms
Rotational Speed 7,200 rpm
Physical Configuration Bytes/Sector 512
Logical Blocks 488,397,168
Operating Temperature
(system inlet air temperature)
50° to 95° F (10° to 35° C)

Embedded NC326i PCI Express Dual Port Gigabit Server Adapter Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Controller BCM5715C
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
