Overview

HP ProLiant DL360e Generation 8 (Gen8)


Essential features packed in a 1U footprint to deliver the key elements for file and print and single application workloads. Value, performance, flexible storage, enhanced management and superior serviceability makes the DL360e the 2P system right-sized for both SMB and enterprise customers.

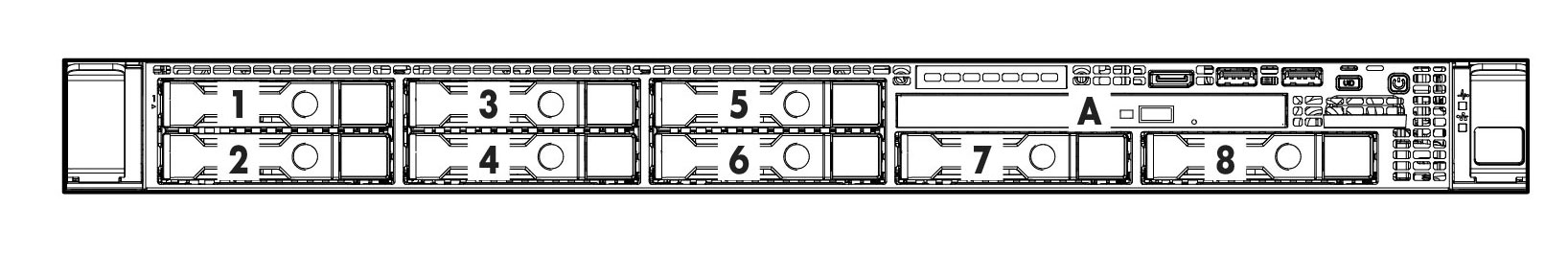

Front View: Rear View:
1. Access Panel 1. PCIe 3.0 Full-height/half -length (250mm) x16 expansion slot
2. Redundant Hot Plug Power Supplies (upgradeable option) 2. PCIe 2.0 Low Profile x8 expansion slot
3. Removable Riser Cage assembly for 1 x PCIe 3.0 x16 + 1 x PCIe 2.0 x8 3. Power supply bay 1 (Primary Power Supply)
4. 12 DIMM slots: DDR3 Registered (RDIMM), Load Reduced (LRDIMM) or Unbuffered (UDIMM) memory 4. Power supply bay 2 (Shown populated: Optional)
5. Removable hot-plug fan modules for easy serviceability 5. Unit ID LED/button
6. Optical Disk Drive Bay 6.

HP Ethernet 1Gb 4-port 366i Adapter

7.

Video connector

7. Serial connector
8.

USB Connectors

8.

Video connector

9.

Unit ID LED/button

9.

USB connectors

10.

Health LED

10. iLO connector
11. NIC activity LED 11. USB connectors
12. Power On/Standby button
13. Drive Bays
14. Up to two Intel® E5-2400 Series processors
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Quad-Core Processors
NOTE: All support up to 1066MHz DDR3 memory speeds.
Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT)
Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT)
Six-Core Processors
NOTE: All support up to1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo
Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo
Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo
Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo
Eight -Core Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+
Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8) Turbo+
Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/8GT-s QPI/70W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5) Turbo+
NOTE: Up to 2 processors supported. Performance/Energy Star Model configurations include two processors with 8 fans.
NOTE: HT indicates that the processor model supports Intel® /Hyper-Threading Technology
NOTE: Turbo 2 indicates the maximum potential bin increments when using Intel® Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed (options for 1600, 1333, 1066MHz).
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
NOTE: For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v#(not yet designated) = version number.

Cache Memory
One of the following depending on Model
20MB (1x20MB) Level 3
NOTE: For Eight-core processors.
15MB (1x15MB) Level 3
NOTE: For Six-core processors.
10MB (1x10MB) Level 3
NOTE: For Quad-core processors.
NOTE: All processor models above list the L3 Cache associated with that particular processor.

Chipset Intel® C600 Series Chipset
Intel® E5-2400 Processor Family
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

Upgradeability Upgradeable to two processors (16 Cores)
Up to 12 DIMM slots
NOTE: To take advantage of DIMMs 7-12, a second processor must be installed
10 Gigabit networking options via standup card
Up to 8 SFF Hard Drive Bays; Or 4 LFF Hard Drive Bays
Redundant Power Supply
Redundant Fan
Optical Drive Bay (8 SFF/4 LFF)

On System Management Processor HP iLO (Firmware: HP iLO 4)
NOTE: For more information, visit: http://www.hp.com/go/ilo.

Memory Protection Advanced ECC
Online Spare
Lock-step

Memory
One of the following depending on Model
Type

HP SmartMemory

DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available

12 (6 DIMM slots per processor, 3 channels per processor, 2 DIMMs per channel)

Standard (Entry Models - SAS)

4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)

Standard (Entry Models - SATA)

4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)

Standard (Base Models)

8GB (2 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)

Standard (Performance Models) 24GB (6 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)
Maximum Capacity (LRDIMM)

384GB (12 x 32GB LRDIMM @1333MHz)

Maximum Capacity (RDIMM)

192GB (12 x 16GB RDIMM @1600MHz or 1333MHz)

Maximum Capacity (UDIMM) 96GB (12 x 8GB UDIMM @1333MHz)
NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant DL360e Gen8 Server.
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: If only one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.

Network Controller HP Ethernet 1Gb 4-port 366i Adapter

Expansion Slots Expansion
Slots #
Technology Bus
Width*
Connector Width Form Factor Notes
1 PCIe 3.0 x16 x16 Full-height, half-length slot (250mm)
2 PCIe 2.0 x4 x8 Low profile slot
*Indicates the number of physical electrical lanes running to the connector.

HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HP's ProLiant ROM is used to configure the following:
  • Processor and chipset status registers
  • System memory, memory map, and memory initialization
  • System hardware configuration (Integrated PCI devices and optional PCIe cards).
  • Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide: www.hp.com/support/rbsu.


Storage Controller
One of the following depending on Model
Entry Model - SAS HP Dynamic Smart Array B320i Controller
NOTE: Provides support for up to 8 SAS or SATA drives and includes SAS license key.
Entry Model - SATA HP Dynamic Smart Array B120i Controller
NOTE: Provides data transmission speeds up to 3Gb/s.
Base Models HP Dynamic Smart Array B320i/512MB FBWC Controller
NOTE: Provides support for up to 8 SAS or SATA drives and includes SAS license key.
Performance Models HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0)

Internal Storage Devices Diskette Drive None
Optical Drive Optional
DVD-ROM, DVD-RW
NOTE: This option available with all 8SFF or 4LFF drive bay models.
Hard Drives None ship standard
Hard Drive Bays
One of the following depending on Model

8 SFF drive bays total with Optical drive bay

4 LFF drive bays total with Optical drive bay.
NOTE: HP ProLiant DL360e Gen8 server offers both SFF and LFF versions in CTO. The Optical Drive bay is available with both models.
NOTE: Drive cage changes are not supported.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.

Maximum Internal Storage Hot Plug SFF SAS 9.6TB
8 x 1.2TB
Hot Plug SFF SATA 8.0TB
8 x 1TB
Hot Plug LFF SAS 12.0TB
4 x 3TB
Hot Plug LFF SATA 16.0TB
4 x 4TB
Hot Plug SFF SAS SSD 6.4TB
8 x 800GB
Hot Plug SFF SATA SSD 6.4TB
8 x 800GB
Hot Plug LFF SATA SSD 3.2TB 4 x 800GB

Interfaces Serial 1
Video 1 Front Mini-Video connector/ 1 Rear standard video (not active simultaneously)
NOTE: Mini-video connector requires Front Video Adapter Kit (PN 655915-B21).
HP iLO Remote Management Network Port 1Gb Dedicated
SD slot 1 Internal secure
NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.
USB 2.0 Ports 7 total: 4 rear, 2 front, 1 internal (secure)
Network Ports 4x1GbE ports

Industry Standard Compliance ACPI 2.0b Compliant
PCIe 3.0
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0 Compliant

Server Power Cords All Pre-configured Models servers ship with a high voltage server to PDU power cord.
NOTE: HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cord that connects to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to power distribution units (PDUs) in data center racks and now ship standard with a PDU 6-foot C-14 to C13 power cord (A0K02A). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the 6-foot NEMA 5-15 to C13 power cord must be ordered separately (AF556A). See Power Cords section for Worldwide Power Cord options.


Power Specifications To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL: www.hp.com/go/hppoweradvisor.

NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

Common Slot Power Supply

NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.

HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

HP CS Platinum Plus power supplies are required when enabling HP's Power Discovery Services, a solution that creates an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on HP's Power Discovery Services, go to: www.hp.com/go/ipd.

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP Power Advisor can be accessed at: www.hp.com/go/hppoweradvisor.

NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on www.80Plus.org.

Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html


System Fans
One of the following depending on Model
4 Hot-Plug Non-redundant Fans ship standard in 1P Models
  • 1P: 4 fans - non-redundancy
  • 1P: 5 fans - redundancy
8 Hot-Plug Redundant Fans ship standard in 2P Models
NOTE: Customers may separately purchase a redundant fan with the 661530-B21 option kit. Additional fans to support redundancy are also included in -B21 processor option kits when upgrading from a one processor to a two processor model.

Required Cabling For required cabling information, refer to the Web site at:
www.hp.com/servers/DL360e-gen8

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/DL360eGen8.

Graphics Integrated Matrox G200 video standard
  • 1280 x 1024 (32 bpp)
  • 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

  • 16 MB Flash
  • 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor
One of the following depending on Model
1U Rack form factor
8 SFF Drive Bay Version:
1.7" (4.32cm) Height x 17.1" (43.46cm) Width x 27.5" (69.9cm) Length
4 LFF Drive Bay Version:
1.7" (4.32cm) Height x 17.1" (43.46cm) Width x 29.5" (75cm) Length

On System Management HP iLO Management Engine

HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:

  • HP iLO: The HP iLO (Integrated Lights-Out) management processor is the core foundation for the HP iLO Management Engine
  • HP Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
  • HP Active Health System: Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.
  • HP Intelligent Provisioning: Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed.
    • To start Intelligent Provisioning:
      • Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST).
      • Please go to the Intelligent Provisioning website at www.hp.com/go/intelligentprovisioning for additional information and to view usage videos.
      • Use the Service Pack for ProLiant (SPP) at www.hp.com/go/spp to get firmware and software updates.
  • HP iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: www.hp.com/go/ilo/mobileapp

NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper


HP Insight Management HP Service Pack for ProLiant (SPP)

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) version 5 provide a new, comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling all firmware to be updated online and integrating firmware and system software updates in one operation HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support on each Service Pack for ProLiant.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM version 5 and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application has been re-written to provide a more straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP will recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

NOTE: The Service Pack for ProLiant (which includes HP SUM 5) can be downloaded from www.hp.com/go/spp/download. More information can be found: www.hp.com/go/spp and http://www.hp.com/go/hpsum


Security Power-on password
Serial interface control
Administrator's password

Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Optional Features

HP Insight Management HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see http://www.hp.com/go/insightcontrol.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight.

HP iLO Essentials
HP iLO Essentials license ideal for small and medium business customers. The specially created HP iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HP iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see: http://www.hp.com/go/iLO/essentials
HP iLO Advanced HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance
HP Matrix Operating Environment The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

NOTE:
For more information, visit: http://www.hp.com/go/matrixoe

High Performance Clusters HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters.

HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster Management Utility HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported option to HP Insight CMU, bundle for the development and deployment of applications on HPC Cluster Platforms. Value Pack includes the Platform LSF workload scheduler and Platform Application Center, as well as the HP-MPI parallelization library. HP HPC Linux Value Pack

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

  • Data Protection and Recovery Software
    Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
  • Data Archive and Migration Software
    HP's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
  • Storage Resource Management Software (SRM)
    HP's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
  • Data Replication Software
    HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
  • Storage Device Management Software
    Maximize your investment in HP storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
  • HP StoreVirtual VSA
    With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE: For more information available Storage Software including QuickSpecs, please see: www.hp.com/go/storage/software.


HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. www.hp.com/go/insightonline


HP Proactive Insight experiencePrevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.


HP Simple ConfiguratorSCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Service and Support

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. Foundation Care services deliver scalable support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for their business needs. New to this portfolio is HP Collaborative Support. If you are running business critical environments, HP offers Proactive Care or Critical Advantage. These services help deliver high levels of application availability through proactive service management and advanced technical response

You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs.

HP Technology Services meets business challenges with services offered in three support recommendations - Optimized Care, Standard Care, and Basic Care - available for each product group. Such support solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support recommendations for servers, storage, networking and software designed to meet your specific needs.

All three service recommendations include support services from the broader portfolio of Foundation Care and Proactive Care services.


Optimized Care

Optimized Care: Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM
Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 24x7 4 hour Response, Proactive Care
Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your call and end to end until resolved, delivering a single point of contact for you. Helping you to resolve your hardware and software issues and minimizing downtime in your business critical environment.

Additional Services: Factory Express, Education Services, Proactive Select - 30 Credit Package


Standard Care

Standard Care: Service recommendation that maintains high level of server availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM
Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servers http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 24x7 4 hour Response, Collaborative Support
Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8232ENW.pdf

Additional Services: Software support service with 24X7 availability with a 2 hour response, Training courses on Microsoft, Linux (Red Hat and SUSE), VMware, and HP Insight Software, 10 Proactive Select Credit package, Factory Express
http://www8.hp.com/us/en/business-services/it-services.html?compURI=1078865


Basic Care

Basic Care: delivers minimum recommended support service level

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides you with rapid remote support and if required an HP authorized technical engineer will be on site 24X7 begin hardware maintenance service within 4 hours of the service request being logged
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

3-Year , HP 24x7 Software Support for Insight Control
Provides remote 3-year software support service that delivers comprehensive software services, including access to HP technical resources and software updates http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services: Factory Express, Education Services, Proactive Select - 10 Credits


Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more http://www.hp.com/go/insightremotesupport


HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

*HP' Support Center Mobile App is subject to local availability


Warranty / Service Coverage

For ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.


For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Pre-configured Models

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
NOTE: Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.
NOTE: HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.
NOTE: If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.
NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.
NOTE: When the SAS FIO riser kit (PN 661387-B21) which includes HP Dynamic Smart Array B320i controller is installed in the server, the embedded Smart Array B120i controller is automatically disabled. In the absence of another storage controller or an expander backplane, drives operate in ACHI or Legacy mode. In these two modes, the drives are not part of a hardware RAID or a member of a logical drive. The Locate, Drive status, and Do not remove LEDs in the drive carrier are disabled.
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.

Entry Models - SAS

HP ProLiant DL360e Gen8 E5-2403 1P 4GB-R Hot Plug 8 SFF 460W PS Entry Server
668813-xx1
Processor(s) (1) Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W, DDR3-1066, HT Turbo) Processor
Cache Memory 10MB (1x10MB) Level 3
Memory 4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)
NOTE: Memory runs at 1066MHz speed due to processor.
Network Controller HP Ethernet 1Gb 4-port 366i Adapter
Storage Controller HP Dynamic Smart Array B320i Controller
NOTE: Provides support for up to 8 SAS or SATA drives and includes SAS license key (PN BC393A).
Hard Drive None ship standard; includes 7 SFF hard drive blanks
Internal Storage 8 SFF HDD Bays
Optical Drive Bay 1; (Optional: DVD-ROM, DVD-RW)
PCI-Express Slots 2 standard (1-FH/HL (250mm), 1-LP)
Power Supply (1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient)
Fans 4 Hot-Plug Non-redundant Fans
Management HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control
Form Factor Rack (1U)
NOTE: Includes Rack Mounting Gen8 non-telescoping Friction Rail Kit which does not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Entry Models - SATA

HP ProLiant DL360e Gen8 E5-2403 1P 4GB-R Hot Plug 4 LFF 460W PS Entry Svr
668812-xx1
Processor(s) (1) Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W, DDR3-1066, HT Turbo) Processor
Cache Memory 10MB (1x10MB) Level 3
Memory 4GB (1 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)
NOTE: Memory runs at 1066MHz speed due to processor.
Network Controller HP Ethernet 1Gb 4-port 366i Adapter
Storage Controller HP Dynamic Smart Array B120i Controller
NOTE: Provides data transmission speeds up to 3Gb/s
Hard Drive None ship standard; includes 3 LFF hard drive blanks
Internal Storage 4 LFF HDD Bays
Optical Drive Bay 1; (Optional: DVD-ROM, DVD-RW)
PCI-Express Slots 2 standard (1-FH/HL (250mm), 1-LP)
Power Supply (1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient)
Fans 4 Hot-Plug Non-redundant Fans
Management HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control
Form Factor Rack (1U)
NOTE: Includes Rack Mounting Gen8 non-telescoping Friction Rail Kit which does not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Base Models

Quad-Core Models
HP ProLiant DL360e Gen8 E5-2407 1P 8GB-R Hot Plug 8 SFF 460W PS Base Server

668814-xx1
Processor(s) (1) Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/6.4GT-s QPI/80W, DDR3-1066, HT)
Cache Memory 10MB (1x10MB) Level 3
Memory 8GB (2 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)
Network Controller HP Ethernet 1Gb 4-port 366i Adapter
Storage Controller HP Dynamic Smart Array B320i/512 MB FBWC Controller
NOTE: Provides support for up to 8 SAS or SATA drives and includes SAS license key (PN BC393A).
Hard Drive None ship standard; includes 7 SFF hard drive blanks
Internal Storage Standard: 8 SFF HDD Bays
Optical Drive Bay 1; (Optional: DVD-ROM, DVD-RW)
PCI-Express Slots 2 standard (1-FH/HL (250mm), 1-LP)
Power Supply (1) HP 460W CS Gold Plus Hot Plug Power Supply (92% Efficient)
Fans 4 Hot-Plug Non-redundant Fans
Management HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control
Form Factor Rack (1U)
NOTE: Includes Rack Mounting Gen8 telescoping SFF Ball Bearing Rail Kit which does allow for in rack serviceability. Due to the size and weight of the server two people are required to install the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.

Performance Models
NOTE: These Models are Energy Star Certified.

Six-Core Model
HP ProLiant DL360e Gen8 E5-2430 2P 24GB-R P420 Hot Plug 8SFF 2x460W PS Perf Svr

668815-xx1
Processor(s) (2) Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5) Turbo
Cache Memory 20MB (1x20MB) Level 3
Memory 24GB (6 x 4GB) Registered DIMMs PC3L-10600R (1333MHz)
Network Controller HP Ethernet 1Gb 4-port 366i Adapter
Storage Controller HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0)
Hard Drive None ship standard; includes 7 SFF hard drive blanks
Internal Storage Standard: 8 SFF HDD Bays
Optical Drive Bay 1; (Optional: DVD-ROM, DVD-RW)
PCI-Express Slots 2 standard (1-FH/HL (250mm), 1-LP)
Power Supply (2) HP 460W CS Gold Plus Hot Plug Power Supplies (92% Efficient)
Fans 8 Hot-Plug Redundant Fans
Management HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star Meets Energy Star requirements
Form Factor Rack (1U)
NOTE: Includes Rack Mounting Gen8 telescoping SFF Ball Bearing Rail Kit which does allow for in rack serviceability. Due to the size and weight of the server two people required to install the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
Warranty Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response

Country Code Key xx = 00 U.S.
xx = 20 Brazil
xx = 29 Japan
xx = 37 APD
xx = 42 Europe
xx = AA PRC
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with a CTO Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)
NOTE: Rail kits and cable management solutions are optional in CTO. See "Step 3: Choose Additional Factory Integratable Options" for details on ordering.
NOTE: The DL360e ships standard with the HP Dynamic Smart Array B120i Controller which provides support for up to 6 SATA drives (greater than 4 drives requires additional cable, PN 675856-B21) and data transmission speeds up to 3Gb/s. Customers requiring SAS support or greater than 6 drives should select either a Smart Array family controller or the SAS Riser FIO kit (PN 661387-B21) that includes HP Dynamic Smart Array B320i Controller Up to 8 SAS drives can be supported with HP Dynamic Smart Array B320i controller.
NOTE: When the SAS-enabled riser board with the Smart Array B320i controller is installed in the server, the embedded Smart Array B120i controller is automatically disabled. In the absence of another storage controller or an expander backplane, drives operate in ACHI or Legacy mode. In these two modes, the drives are not part of a hardware RAID or a member of a logical drive. The Locate, Drive status, and Do not remove LEDs in the drive carrier are disabled.
NOTE: Power Supply not included - choose from Power Options section.
NOTE: HP Smart Array P222 Controller and HP H222 Host Bus Adapter can be selected with only 4LFF models.
NOTE: HP Smart Array P822 Controller and HP H220 Host Bus Adapter can be selected with only 8SFF models
HP Models HP ProLiant DL360e Gen8 8 SFF Configure-to-order Server
661189-B21
Factory Integrated Model ships with:
2 x HP Smart Socket Guides for fast processor installation
Drive Cage - 8-Small Form Factor
12 DIMM slots for RDIMM, LRDIMM and UDIMM SmartMemory installation
HP Ethernet 1Gb 4-port 366i Adapter
HP Dynamic Smart Array B120i Controller (Cache connection for 512MB FBWC options)
I/O slots - 2 Slots come standard:
  • Slot 1 - Full-Height/Half-Length (250mm) x 16 PCIe 3.0
  • Slot 2 - Low Profile x 8 PCIe 2.0

System Fans - 4 (4 additional fans included with second processor kit)
USB - 4 Rear, 2 Front, 1 Internal
1 Internal SD slot
HP iLO Management Engine (standard)


NOTE: New options are available for Rack Rail Kits; these options are no longer standard on-board with this Model Part Number. Please see HP Rack Options below for optional required options.
HP ProLiant DL360e Gen8 4 LFF Configure-to-order Server 661190-B21
Factory Integrated Model ships with:
2 x HP Smart Socket Guides for fast processor installation
Drive Cage - 4-Large Form Factor
12 DIMM slots for RDIMM, LRDIMM and UDIMM SmartMemory installation
HP Ethernet 1Gb 4-port 366i Adapter
HP Dynamic Smart Array B120i Controller (Cache connection for 512MB FBWC options)
I/O slots - 2 Slots come standard:
  • Slot 1 - Full-Height/Half-Length (250mm) x 16 PCIe 3.0
  • Slot 2 - Low Profile x 8 PCIe 2.0

System Fans - 4 (4 additional fans included with second processor)
USB - 4 Rear, 2 Front, 1 Internal
1 Internal SD slot
HP iLO Management Engine (standard)


NOTE: New options are available for Rack Rail Kits; these options are no longer standard on-board with this Model Part Number. Please see HP Rack Options below for optional required options.

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP ProcessorsNOTE: If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.
Quad- Core Processors
NOTE: All support up to 1066MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) FIO Processor Kit660664-L21
HP DL360e Gen8 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) FIO Processor Kit660666-L21
Six-Core Processors
NOTE: All support up to 1333MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) FIO Processor Kit660656-L21
HP DL360e Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) FIO Processor Kit660658-L21
HP DL360e Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) FIO Processor Kit660660-L21
HP DL360e Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) FIO Processor Kit660670-L21
Eight -Core Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) FIO Processor Kit660650-L21
HP DL360e Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) FIO Processor Kit660652-L21
HP DL360e Gen8 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) FIO Processor Kit660668-L21
NOTE: Up to 2 processors supported.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo 2 indicates the maximum potential bin increments when using Intel® Turbo Boost Technology, with 8, 7,6,5,4,3,2 and 1 cores active DDR3 speed is the maximum memory speed of the processor.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed (options for 1600, 1333, 1066MHz)
NOTE: For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v#(not yet designated) = version number.

HP MemoryNOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with new Active Health features on the Gen8 Server.
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit647903-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at www.hp.com/go/ddr3memory-configurator.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document.
NOTE: For more information on ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient
NOTE: PC3L is a low voltage memory.

HP Power Supplies

NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.
NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor.


HP Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit656364-B21
HP Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer up to 92% efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

HP Common Slot -48VDC Power Supplies
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE: The HP 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.
636673-B21
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html
HP I/O Expansion OptionsHP DL360e Gen8 CPU1 with SAS Support FIO Riser Kit
NOTE: Includes HP Dynamic Smart Array B320i controller
NOTE: SAS license key (PN BC393A) is selected by default when this riser kit is selected. If SAS support is not needed, SAS license key (PN BC393A) can be deselected. SAS license key is mandatory for SAS support. Supports up to 8 drives.

661387-B21
HP DL360e Gen8 CPU1 with SATA Support FIO Riser Kit
NOTE: If no other storage controller is selected, embedded HP Dynamic Smart Array B120i controller (SATA only) is the primary controller.
661388-B21

Step 3: Choose Additional Factory Integratable Options
HP Rack Kits NOTE: Gen8 rail kits have changed significantly from prior generation rail kits. Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen8 server.
NOTE: Includes Rack Mounting Gen8 non-telescoping Friction Rail Kit which does not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
Caution: HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 1U Friction Gen8 FIO Rail Kit
NOTE: Kit contains non-telescoping friction rails which do not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
663200-B21

HP Insight Software HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License C6N36A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Processors NOTE: If two processors are desired, select the second from the xxxxxx-B21 below.
Quad-Core Processors
NOTE: All support up to 1066MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor Kit 660664-B21
HP DL360e Gen8 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor Kit 660666-B21
Six-Core Processors
NOTE: All support up to1333MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor Kit 660656-B21
HP DL360e Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor Kit 660658-B21
HP DL360e Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor Kit 660660-B21
HP DL360e Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor Kit 660670-B21
Eight -Core Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.

HP DL360e Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor Kit 660650-B21
HP DL360e Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor Kit 660652-B21
HP DL360e Gen8 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor Kit 660668-B21
NOTE: Up to 2 processors supported.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo 2 indicates the maximum potential bin increments when using Intel® Turbo Boost Technology, with 8, 7,6,5,4,3,2 and 1 cores active DDR3 speed is the maximum memory speed of the processor.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed (options for 1600, 1333, 1066MHz)
NOTE: For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v#(not yet designated) = version number.


HP Memory

NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.

Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit 647903-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.


HP Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Optical Drive
652238-B21
HP 9.5mm SATA DVD-RW JackBlack Optical Drive 652241-B21

HP Hard Drives NOTE: The HP ProLiant Gen8 Smart Storage solutions are equipped with entirely re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HP Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove".
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 697574-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652589-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652583-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652572-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652564-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652611-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652605-B21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652749-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652745-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive 652620-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive 652615-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 652766-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 652757-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 652753-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 655708-B21
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 655710-B21
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 693687-B21
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 628061-B21
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 658079-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 657750-B21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive 658071-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html (Worldwide)

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691868-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691866-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691864-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691862-B21
6G SATA ME Hot Plug SFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691860-B21
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 691856-B21
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 691854-B21
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 691852-B21
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
690829-B21
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
690827-B21
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690825-B21

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives


HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653082-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653078-B21
3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive

653120-B21

HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653118-B21
HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653112-B21
3G SATA MLC Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 400GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive

653126-B21

HP 200GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive

653124-B21

HP 100GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid State Drive 653122-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html (Worldwide)


HP Networking Gigabit Ethernet Adapters
HP NC112T PCI Express Gigabit Server Adapter 503746-B21
HP NC365T 4-port Ethernet Server Adapter 593722-B21
HP Ethernet 10Gb 2-port 530T Adapter 656596-B21
HP Ethernet 1Gb 2-port 361T Adapter 652497-B21
HP Ethernet 1Gb 4-port 331T Adapter 647594-B21
HP Ethernet 1Gb 2-port 332T Adapter 615732-B21
10 Gigabit Ethernet Adapters
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. See cables/options below.

HP NC552SFP 10Gb 2-port Ethernet Server Adapter 614203-B21
HP NC523SFP 10Gb 2-port Server Adapter 593717-B21
HP Ethernet 10Gb 2-port 530SFP Adapter 652503-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter 665249-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs.

HP InfiniBand QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA 583211-B21
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA 592520-B21
HP InfiniBand FDR/EN 10/40Gb Dual Port 544QSFP Adapter 649281-B21
NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP Power SuppliesNOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.
NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at: www.hp.com/go/hppoweradvisor

HP Common Slot Platinum Plus Power Supply Kits
NOTE: The following Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit656364-B21
HP Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% Efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

HP Common Slot -48VDC Power Supplies
NOTE: The following Power Supplies offer 92% Efficiency.

HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE: NOTE: The HP 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.
636673-B21
NOTE: Option Kits for AC power supplies include the power supply and one PDU IEC cable.
NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords
NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

HP Cooling Options HP DL360e Gen8 Redundant Fan Kit
NOTE: The kit contains one fan to be added to a server with one processor installed to make the fans redundant.
661530-B21

HP Graphic Options

HP DL360 Gen8 Front Video Adapter Kit
NOTE: Required to enable the front video port.
655915-B21
HP Graphic Card Power Adapter Kit
NOTE: NOTE: The adapter kit is used to provide power to high-wattage cards
(example: graphics cards) that require up to 225W of power.
661389-B21
NVIDIA Quadro 4000 2GB PCI-E Adapter
NOTE: Only following OS types are supported: 64-bit Only: Red Hat Enterprise Linux 5.x, Red Hat Enterprise Linux 6.x, SUSE Linux Enterprise Server 11 SPx. 64-bit Only: Windows Server 2008 R2 SPx
655933-B21
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License
C6N27A
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License C6N28AAE
HP Insight Control Server Provisioning Media Kit
BD883A
HP Insight Management Media Kit
C6N31A
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License
C6N36AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License
452151-B21
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.

NOTE: For additional license options please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Integrated Lights-Out (iLO)



HP Integrated Lights-Out (iLO) Advanced for ProLiant



HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

TA850AAE

HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates

BD506AAE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A
HP iLO Essentials

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates E-LTU

BD774AAE

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates Single Svr License

BD774A

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates E-LTU

BD775AAE

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates Single Svr License

BD775A
NOTE: For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html

NOTE: For more information, visit: http://www.hp.com/go/ilo.

High Performance Clusters HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.
BD476A
HP Insight Cluster Management Utility Media BD477A
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html.
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License for ProLiant Servers
NOTE: This part number can be used to purchase one certificate for multiple licenses with a single activation key. Each license is for one socket (a.k.a. processor). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html.
TC293B
HP High Performance Computing Linux Value Pack Media Kit for ProLiant Servers
NOTE: This part number can be used to purchase media including software and documentation, which will be delivered to the customer.
TC294A

HP I/O Accelerator Options

Second Generation Accelerators
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673642-B21
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673644-B21
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers 673646-B21
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers 673648-B21
HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers 721458-B21
First Generation Accelerators
HP 160GB Single Level Cell PCIe ioDrive for ProLiant Servers
NOTE: A low-profile PCI bracket is included for use in low-profile slots.
600278-B21
HP 320GB Single Level Cell PCIe ioDrive Duo for ProLiant Servers 600281-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html
(Worldwide)


HP Security

HP Trusted Platform Module Option
488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker? Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HP 1U Security Gen8 Bezel Kit 664918-B21

HP Storage Controllers SAS Controllers
Smart Array P222 Controller
HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller
NOTE: Supported on LFF models only.
631667-B21
Smart Array P420 Controller
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller

631670-B21

HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller

631671-B21

Smart Array P421 Controller
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller

631674-B21

Smart Array P822 Controller
HP Smart Array P822/2GB FBWC 2-ports Int/4-ports Ext SAS Controller
NOTE:
Supported on SFF models only.
615418-B21
Optional Upgrades
HP 2GB P-series Smart Array Flash Backed Write Cache 631681-B21
HP 512MB B-series 36 inch Dynamic Smart Array Flash Backed Write Cache for ML/DL
NOTE: This kit includes a cable and cache module that is used in conjunction with the B320i and B120i controller.
631922-B21
HP 1U Gen8 Smart Array Cable Kit
NOTE: This cable kit is required when using the P222, P420, P822 Smart Array controllers, and H222, H220 HBAs.
NOTE: If P420 is installed in Slot 1 of 8SFF model, this cable is not required.
672242-B21
HP Gen8 2-port SATA Cable Kit
NOTE: Required for 6SFF configurations with B120i
675856-B21
HP SAS License Key No Media 1 Single Server License for B320i
NOTE: Required for SAS support if HP Dynamic Smart Array B320i (PN: 661387-B21) is the primary controller.
BC393A
HP Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software
NOTE: Required for SAS support if HP Dynamic Smart Array B320i (PN: 661387-B21) is the primary controller.
BC377A
HP Smart Array Advanced Pack 2.0 No Media Flexible Qty 1yr 24x7 Support Software BC390A
HP Smart Array Advanced Pack 2.0 No Media Electronic Lic 1yr 24x7 Support Software BC390AAE
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14227_div/14227_div.html
(Smart Array P222 Controller)
http://h18000.www1.hp.com/products/quickspecs/14228_div/14228_div.html
(Smart Array P420 Controller)
http://h18000.www1.hp.com/products/quickspecs/14229_div/14229_div.html
(Smart Array P421 Controller)
http://h18000.www1.hp.com/products/quickspecs/14341_div/14341_div.html
(Smart Array P822 Controller)
http://h18000.www1.hp.com/products/quickspecs/14343_div/14343_div.html
(Dynamic Smart Array Controllers)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)

Host Bus Adapter
HP H220 Host Bus Adapter
NOTE:
Supported on SFF models only.
650933-B21
HP H221 Host Bus Adapter
NOTE: This is a 2 x4 External Port HBA.
650931-B21
HP H222 Host Bus Adapter
NOTE: Supported on LFF models only.
650926-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18004.www1.hp.com/products/quickspecs/14336_div/14336_div.html
(HBA 220)
http://h18004.www1.hp.com/products/quickspecs/14222_div/14222_div.html
(HBA 221)
http://h18004.www1.hp.com/products/quickspecs/14337_div/14337_div.html
(HBA 222)

SCSI HBA

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
412911-B21
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)


HP Cable Options HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable AJ837A
HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable AP818A
HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable AJ834A
HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable AJ838A
HP B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable AP819A
HP C-Series SFP+ to SFP+ Copper 3.0m Direct Attach Cable AP784A
HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable AJ839A
HP B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable AP820A
HP C-Series SFP+ to SFP+ Copper 5.0m Direct Attach Cable AP785A
HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable AJ833A
HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable AJ836A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable QK735A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable QK732A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable QK733A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable QK736A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable QK737A
HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable QK734A

HP Tape Backup NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and www.hp.com/go/ebs.
NOTE: For Internal drives to be connected to DL servers please make sure that you order rack mount kit as well.

HP StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive
EH958B
HP StoreEver LTO-5 Ultrium 3280 SAS External Tape Drive
EH900B
HP StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive
EH920B
HP StoreEver LTO-4 Ultrium 1760 SCSI External Tape Drive
EH922B
HP StoreEver LTO-4 Ultrium 1840 SAS External Tape Drive
EH861B
HP StoreEver LTO-4 Ultrium 1840 SCSI External WW Tape Drive EH854B
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit
C0L99A
HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive
EH963A
HP StoreEver LTO-6 Ultrium 6650 External Tape Drive
EH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive
EH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive EH970A

HP Storage Options Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter
QR558A
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter QR559A
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter
QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter QW972A
Converged Network Adapter
HP CN1100E Dual Port Converged Network Adapter BK835A
HP CN1000Q Dual Port Converged Network Adapter BS668A

HP Uninterruptible Power Systems

HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U INTL Uninterruptible Power System AF471A
HP R1.5kVA G3 1U JP/TW Uninterruptible Power System AF470A
HP R1.5kVA G3 1U NA Uninterruptible Power System AF469A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html (Worldwide)

HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System AF468A
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System AF466A
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System AF467A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html (Worldwide)

R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System AF461A
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System AF460A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html (Worldwide)

R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System AF462A
HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System AF463A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html (Worldwide)

NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.
NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.


HP Power Distribution Units

Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 8.6kVA 24A Single Input Three Phase NA/JP Monitored Power Distribution Unit AF504A
HP 8.3kVA 40A Single Input Single Phase NA/JP Monitored Power Distribution Unit AF506A
HP 11kVA 16A Single Input Three Phase INTL Monitored Power Distribution Unit AF508A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9kVA 24A Single Input Single Phase NA/JP Monitored Power Distribution Unit AF914A
HP 7.3kVA 32A Single Input Single Phase INTL Monitored Power Distribution Unit AF915A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
Modular PDUs 1U/0U
NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks).

HP 2.8kVA 24A Low Voltage NA/JP Modular Power Distribution Unit 252663-D71
HP 3.6kVA 16A High Voltage INTL Modular Power Distribution Unit 252663-B24
HP 4.9kVA 24A High Voltage NA/JP Modular Power Distribution Unit 252663-D72
HP 7.3kVA 32A High Voltage INTL Modular Power Distribution Unit 252663-B31
NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.
NOTE: Please see the following QuickSpecs for additional options including shorter jumper cables and country specific power cords:
http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html (Worldwide)

NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.

HP Intelligent Power Distribution Units (iPDU) iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit AF520A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit AF522A
HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit AF525A
HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit AF526A
iPDU Extension Bars
HP 5xC13 Intelligent PDU Extension Bar G2 Kit
AF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar AF528A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)


HP Rack Series HP Intelligent Series Rack
HP 636 1075mm Pallet Intelligent Series Rack
BW895A
HP 636 1075mm Shock Intelligent Series Rack
BW896A
HP 642 1075mm Pallet Intelligent Series Rack
BW903A
HP 642 1075mm Shock Intelligent Series Rack
BW904A
HP 647 1075mm Pallet Intelligent Series Rack
BW911A
HP 647 1075mm Shock Intelligent Series Rack
BW912A
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/14223_div/14223_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.


HP Rack Options HP Location Discovery Services

HP 36U Location Discovery Kit
BW945A
HP 42U Location Discovery Kit
BW946A
HP 47U Location Discovery Kit
BW947A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14429_div/14429_div.html (Worldwide)

HP USB Keyboard and Mouse
HP USB BFR with PVC Free US Keyboard/Mouse Kit 631341-B21
HP USB BFR with PVC Free UK Keyboard/Mouse Kit 631344-B21
HP USB BFR with PVC Free FR Keyboard/Mouse Kit 631346-B21
HP USB BFR with PVC Free ES Keyboard/Mouse Kit 631348-B21
HP USB BFR with PVC Free DE Keyboard/Mouse Kit 631358-B21
HP USB BFR with PVC Free JP Keyboard/Mouse Kit 631360-B21
HP USB BFR with PVC Free IT Keyboard/Mouse Kit 631362-B21
HP USB BFR with PVC Free CN Keyboard/Mouse Kit 631364-B21
HP USB BFR with PVC Free AE Keyboard/Mouse Kit 638212-B21
HP USB BFR with PVC Free RU Keyboard/Mouse Kit 638214-B21
HP USB BFR with PVC Free IN Keyboard/Mouse Kit 672097-D63
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit 672097-373
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit 672097-B33
HP USB BFR with PVC Free PT Keyboard/Mouse Kit 672097-133
HP USB BFR with PVC Free TR Keyboard/Mouse Kit 672097-143
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit 672097-223
HP USB BFR with PVC Free FI Keyboard/Mouse Kit 672097-353
HP USB BFR with PVC Free SE Keyboard/Mouse Kit 672097-103
HP USB BFR with PVC Free CH Keyboard/Mouse Kit 672097-113
HP USB BFR with PVC Free KR Keyboard/Mouse Kit 672097-KD3
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html (Worldwide)

HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)

HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor
AZ871A
HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor
AZ872A
HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor
AZ873A
HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor
AZ874A
HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor
AZ875A
HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor
AZ876A
HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor
AZ877A
HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor
AZ878A
HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor AZ879A
HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor
AZ880A
HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor
AZ881A
HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor
AZ882A
HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor
AZ883A
HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor
AZ884A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor AZ885A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html (Worldwide)

HP Server Console Switches
HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch

AF626A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html (Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM CAT5 1-pack USB Interface Adapter 336047-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html (Worldwide)

HP 1x4 USB/PS2 KVM Console Switch
HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software AF622A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)

Rail Kits
NOTE: The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 1U Small Form Factor Ball Bearing Gen8 Rail Kit
NOTE: For SFF models.
NOTE: Includes Rack Mounting Gen8 telescoping SFF Ball Bearing Rail Kit which does allow for in rack serviceability. Due to the size and weight of the server two people are required to insall the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative. Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
663201-B21
HP 1U Gen8 Cable Management Arm
NOTE: Supports Ball Bearing rail kit only.
663203-B21
HP Rack Cable Management Velcro Clips 379820-B21
HP 1U Large Form Factor Ball Bearing Gen8 Rail Kit
NOTE: For LFF models.
NOTE: Includes Rack Mounting Gen8 telescoping LFF Ball Bearing Rail Kit which does allow for in rack serviceability. Due to the size and weight of the server two people are required to install the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative. Caution: HP recommends that a minimum of two people is required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.
663202-B21

HP USB and SD Options HP 4GB SD Enterprise Performance Flash Media Kit
NOTE: Blank SD media device is supported for use with VMware and Citrix. SD media must be installed in the internal slot of the ProLiant server. Learn more at: http://www.hp.com/go/proliantvirtualization.
580387-B21
HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 32GB SD Enterprise Mainstream Flash Media Kit 700136-B21

HP Care Pack Services Proactive Care
NOTE: Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.

HP 3 year 4 hour 24x7 ProLiant DL360e Proactive Care Service
U6D63E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL360e Proactive Care Service
U6D64E
HP 3 year 6 hour Call to Repair 24x7 ProLiant DL360e Proactive Care Service
U6D69E
HP 3 year 6 hour Call to Repair 24x7 w/ Defective Media Retention ProLiant DL360e Proactive Care SVC
U6D70E
HP 3 year 4 hour 24x7 ProLiant DL360e with Insight Control Proactive Care Service
U6G82E
HP 3 year 4 hour 24x7 w/Defective Media Retention DL360e with Insight Control Proactive Care Service
U6G83E
HP 3 year 6 hour Call to Repair 24x7 ProLiant DL360e with Insight Control Proactive Care Service
U6G84E
HP 3 year 6 hour CTR 24x7 w/Defective Media Retention DL360e w/Insight Control Proactive Care SVC
U6G85E
Collaborative Support
NOTE: Hardware break/fix plus 24x7 software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors from the software vendors directly and deploying them on HP ProLiant servers.



HP 3 year 4 hour 24x7 ProLiant DL360e Collaborative Support

U6D61E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL360e Collaborative Support

U6D62E

HP 3 year 6 hour Call to Repair 24x7 ProLiant DL360e Collaborative Support

U6D67E

HP 3 year 6 hour Call to Repair 24x7 w/ Defective Media Retention ProLiant DL360e Collaborative Sup

U6D68E

Proactive Care Personalized Support Option
NOTE: To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advices for the customer's environment.

HP 3yr Provides annual personalized proactive supp for existing Proactive Care ISS centric environment

U6W98E

Installation Services
NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business.

HP Install ProLiant DL360e Service
U6E11E
HP Startup ProLiant DL360e Service U6E13E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Memory

HP SmartMemory

New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture
Each Intel® Xeon® E5-2400 family processor socket contains three memory channels that support two DIMMs
each for a total of six (6) DIMM per installed processor or a grand total of twelve (12) DIMMs for the
server. Up to 32GB capacity DIMMs are supported for 384GB of max memory .


Memory population guidelines

General Memory Population Rules and Guidelines:
  • White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
  • A minimum of one DIMM is required per server
  • Install DIMMs only if the corresponding processor is installed
  • If only one processor is installed in a two processor system, only half of the DIMM slots are available
  • To maximize performance, it is recommended to balance the total memory capacity between all installed
    processors and to load the channels similarly whenever possible
  • When two processors are installed, balance the DIMMs across the two processors.
  • Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load
    (DIMM with most ranks) within a channel goes furthest from the processor
  • Do not mix UDIMMs, RDIMMs or LRDIMMs.
  • RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the
    higher voltage
  • DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed
  • The maximum memory speed is a function of the memory type, memory configuration, and processor model
  • The maximum memory capacity is a function of the memory type and number of installed processors
  • HP memory from previous generation servers is not compatible with the DL360e Gen8 Server. Certain HP
    SmartMemory features such as memory authentication and enhanced performance may not be supported.
  • To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For
    additional information, please see the HP SmartMemory QuickSpecs at:
    http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
  • For memory population rules and additional memory guidelines, please see the DL360e Gen8 user guide at
    http://www.hp.com/support
  • There are three (3) Memory channels per processor; six (6) channels per 2 processor server
  • There are two (2) DIMM slots for each memory channel; twelve (12) total slots for 2 processor server

For Servers with 12 DIMM slots available (DL360e Gen8 Server)
Gen8 Supported Memory Bandwidth and Capacity
DIMM Type Registered DIMMS
(RDIMMs)
Load Reduced (LRDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank Single Rank (1R) Dual Rank (2R) Quad Rank (4R) Single Rank (1R) Dual Rank (2R)
DIMM Capacity 4GB 4GB 8GB 8GB 16GB 16GB 32GB 2GB 4GB 8GB
DIMM Native Speed (MHz) 1333 1600 1600 1333 1333 1600 1333 1333 1333 1333
Voltage LV Std Std LV LV Std LV LV LV LV

SLOTS THAT CAN BE POPULATED
12 slot servers 12 12 12 12 12 12 12 12 12 12

MAXIMUM CAPACITY (GB)*
12 slot servers 48 48 96 96 192 192 384 24 48 96

POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1600 1600 1333 1333 1600 1333** 1333 1333 1333
2 DIMM Per Channel 1333 1600 1600 1333 1333 1600 1333** 1333*** 1333*** 1333***
NOTE: To realize the performance memory capabilities listed above HP SmartMemory is required.
*Maximum capacity will vary based on individual server platform qualification schedule
**LRDIMM enables 2 DIMMs per channel. HP SmartMemory supports up to 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V.
*** For UDIMMs, HP SmartMemory supports 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V.

Memory Speed by Processor Model
Processor Models Supported Memory Speeds
E5-2470, E5-2450, E5-2450L 1600/1333/1066MHz
E5-2440, E5-2430, E5-2420, E5-2430L 1333/1066MHz
E5-2407, E5-2403 1066MHz

Standard and Maximum Memory Capacity (Pre-configured Models)
Pre Configured Models Standard Memory Maximum Memory Plus Optional Memory Standard Memory Replaced with Optional Memory
Intel Xeon E5-2430 24GB (6x 4GB) 120GB (6x 16GB, 6x 4GB) 384GB (12x 32GB)
Intel Xeon E5-2407 8GB (2x 4GB) 168GB (10x 16GB, 2x 4GB) 384GB (12x 32GB)
Intel Xeon E5-2403 4GB (1x 4GB) 180GB (11x 16GB, 1x 4GB) 384GB (12x 32GB)

DIMM slot and configuration diagrams
Basic memory slot & population diagram
  • Population order; looking from the front of your server CPU#1 is on right side and CPU#2 is on the left. See the population order by alphabetic and numeric progression below.
CPU #1 IS PROCESSOR ON RIGHT - LOOKING FROM FRONT OF SERVER
  Channel 1 Channel 2 Channel 3 CPU #1

slot #

1 2 3 4 5 6
population order A D B E C F
In Order 1 4 2 5 3 6 -
CPU #2 IS PROCESSOR ON LEFT - LOOKING FROM FRONT OF SERVER
  Channel 1 Channel 2 Channel 3 CPU #2

slot #

1 2 3 4 5 6
population order A D B E C F
In Order 1 4 2 5 3 6 -

DDR3 memory options part number decoder

Following are memory options available from HP:
HP Memory NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with the DL360e Gen8 Server.
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit 647903-B21
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: PC3L is a low voltage memory.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Storage

A
Optional DVD-ROM/DVD-RW
1-8 8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

A Optional DVD-ROM/DVD-RW
1-4 4 x LFF SATA/SAS/SSD Hot Pluggable Hard Drives Bays

External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
D2600 Disk Enclosure Up to 4 External HP Smart Array P222/512MB FBWC Controller
Up to 8 External HP Smart Array P421/1GB FBWC Controller
HP Smart Array P421/2GB FBWC Controller
D2700 Disk Enclosure Up to 2 External HP Smart Array P222/512MB FBWC Controller
Up to 4 External HP Smart Array P421/1GB FBWC Controller
HP Smart Array P421/2GB FBWC Controller
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Configuration Information - Factory Integrated Models      Core Options      Additional Options      Memory      Storage      Technical Specifications line.gif (50 bytes)

Technical Specifications

System Unit Dimensions (H x W x D) 8 SFF 1.7 x 17.1 x 27.5 inches (4.32 x 43.46 x 69.9 cm)
4 LFF 1.7 x 17.1 x 29.5 inches (4.32 x 43.46 x 75.0 cm)
Weight (approximate) Maximum
(all hard drives, power supply, and processor installed)
8 SFF (17.14 kg)
4 LFF (17.40 kg)
Minimum
(one hard drive, power supply, and processor installed)
8 SFF (13.20kg)
4 LFF (13.65kg)
Input Requirements
(for Standard 460W PSU, see power specifications tables for detail on 460W, 750W and 1200W power supplies)
Rated Line Voltage 100 to 120 VAC
200 to 240 VAC
Rated Input Current 4.5 Amps (at 120VAC) to 2.2 Amps (at 240 VAC)
Rated Input Frequency 50 to 60 Hz
BTU Rating Maximum 1773 BTU / hr (at 120 VAC), 1715 (at 240 VAC)
Power Supply Output
(per power supply)
Rated Steady-State Power



460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)

750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
Maximum Peak Power



460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)

750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
System Inlet Temperature Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude Operating 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle (1P non-redundant)
LWAd
4.7 B Average Bystander
LpAm
33dBA
Operating
LWAd
4.7 B Average Bystander
LpAm
33 dBA
Idle (2P redundant)
LWAd
5.0B Average Bystander
LpAm
35 dBA
Operating
LWAd
5.0 B Average Bystander
  LpAm
35 dBA
NOTE: Values are subject to change without notification and are for reference only.
NOTE: Performance of system, options, and ancillary equipment will vary depending on the system configuration.
NOTE: Levels presented do not account for non-Hewlett-Packard installed hardware.
Emissions Classification (EMC) FCC Rating
Class A
Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Dynamic Smart Array B120i Controller

Dimensions Embedded
Disk Drive Interface - Transfer rate Up to 6Gb/s SATA (Serial ATA)
SATA Connectors 6 internal connectors w/hot plug support
Server Interface Intel® C600 Series Chipset integrated SATA controller
SATA Speed 3Gb/s SATA links
Cache Memory optional 40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)
Logical Drives Supported Zero Memory, Up to 2 logical volumes (6 physical drives)
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
Hot Plug Support Yes
RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)

RAID 1+0 (Striping & Mirroring)
RAID 5 with optional 512MB FBWC
NOTE: 512 MB cache is required to enable RAID 5 support

HP Dynamic Smart Array B320i Controller

DimensionsEmbedded
Disk Drive Interface - Transfer rateUp to 6Gb/s SAS (Serial Attached SCSI)
Up to 6Gb/s SATA (Serial ATA)
Connectors2 internal 4X connectors
Server Interfacex4 PCIe 2.0 provides 4GB/s maximum bandwidth
Speed8 x 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Logical Drives SupportedZero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
Hot Plug SupportYes
RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)

RAID 1+0 (Striping & Mirroring)
RAID 5 with optional 512MB FBWC

NOTE: 512 MB cache is required to enable RAID 5 support.
NOTE: NO SAS supported.


HP Smart Array P420Controller

Dimensions Low Profile PCIe Form Factor
Disk Drive and Enclosure Interface - transfer rate 6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors 2 internal 4X connectors
Cache Memory Speed DDR2-800MHz with 40 or 72-bit wide bus
Server Interface x4 PCIe 2.0 provides 2GB/s maximum bandwidth
SAS Speed 8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory Zero Memory RAID has no cache memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Zero Memory, Up to 2 logical volumes (8 physical drives)
Logical Drives Supported Up to 64 logical drives with cache
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID Support RAID 6, 6+0 (Advanced Data Guarding)
NOTE: RAID 6, 6+0 can be enabled with one of the following combinations:
  • 256 MB cache, Battery kit and Smart Array Advanced Pack License key option upgrades
  • 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades
  • 1G FBWC and Smart Array Advanced Pack License key option upgrades
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: A minimum or 256 MB cache is required to enable RAID 5, 5+0 support
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)

HP Ethernet 1Gb 4-port 366i Adapter Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 1588, IEEE 802.1AS
IEEE 802.3az - Energy Efficient Ethernet (EEE)
Data Transfer Method PCI Express v 2.0, 5.0 GT/s with x4 links widths (Lanes)
Controller Intel I350 Powerville
Number of Ports 4
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s per port, 40 Mb/s Combined
10Base-T (Full-Duplex) 20 Mb/s per port, 80 Mb/S Combined
100Base-TX (Half-Duplex) 100 Mb/s per port, 400 Mb/s Combined
100Base-TX (Full-Duplex) 200 Mb/s per port, 800 Mb/s Combined
1000Base-TX (Half and Full-Duplex) 1000Mb/s per port, 4000 Mb/s Combined
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP; up to 328 ft (100 m)

Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
