   Proliant BL420c G8 QuickSpecs  US QuickSpecs
  BL420c G8 Hard Drives   BL420c G8 Processors   BL420c G8 Memory
  BL420c G8 Controllers   BL420c G8 Networking   BL420c G8 Power Supplies
  BL420c G8 Quickspecs   BL420c G8 Quickspecs-Options   BL420c G8 Options
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Proliant BL420c G8 Overview

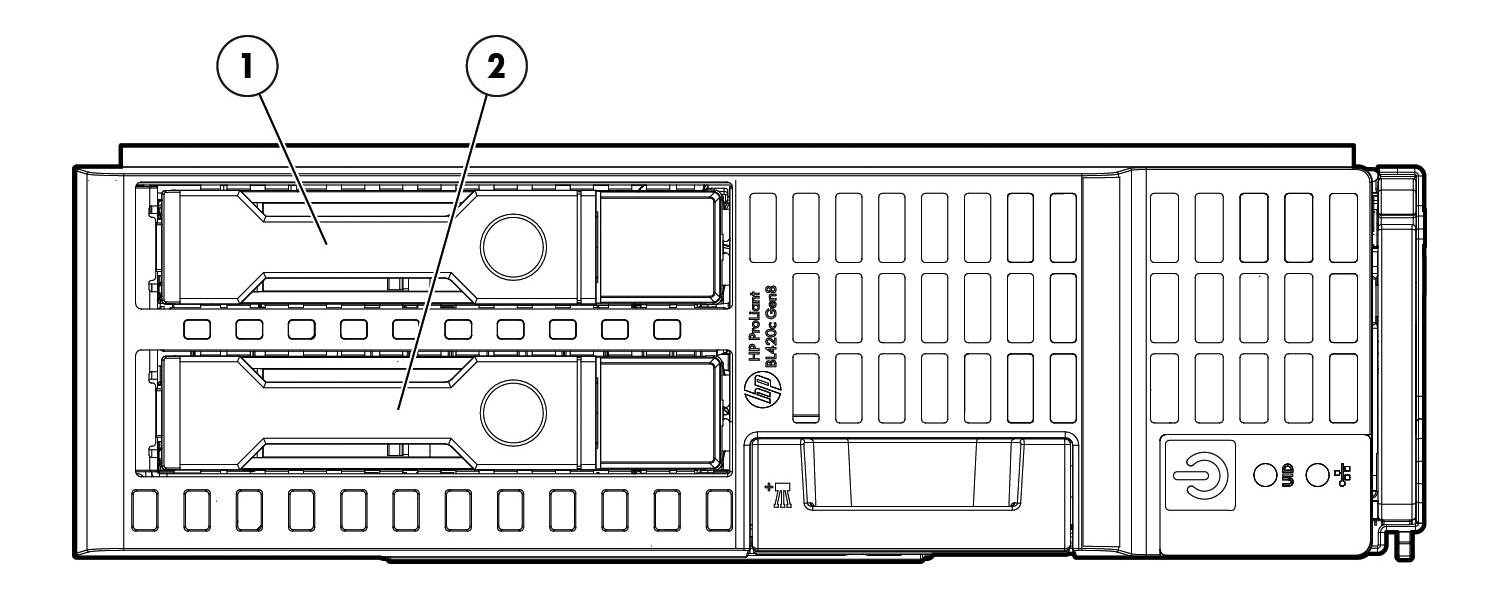

HP ProLiant BL420c Generation 8 (Gen8) Server Blade

Redefining the term "entry-level" in the blade market, the BL420c Gen8 provides breakthrough server blade economics for essential enterprise workloads.
1.
Access panel
7.
Up to two (2) Intel® Xeon® E5-2400 series processors
2.
Cache module connector
8.
Internal USB 2.0 connector and Trusted Platform Module (TPM) connectors
3.
Two (2) PCIe 3.0 mezzanine I/O expansion slots 9. HP c-Class Blade SUV (Serial, USB, VGA) connector
4.
FlexibleLOM Adapter 10. Two (2) small form factor (SFF) hot-plug drive bays
5.
MicroSDHC card connector 11. SAS controller
6.
FlexibleLOM connectors (2) supporting one (1) FlexibleLOM Adapter 12. Twelve (12) DDR3 DIMM memory slots (6 per processor)

What's New
  • Support for HP 6G SATA Solid State drives
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Standard Features

NOTE: This document covers the HP ProLiant BL420c Gen8 server blade only. For information on HP BladeSystems c-Class Platinum Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HP BladeSystem c-Class Enclosures QuickSpecs:

NOTE: For proper BladeSystem operation, the minimum required versions of HP Onboard Administrator and HP Virtual Connect are required and available via the HP Service Pack for ProLiant, please see http://www.hp.com/go/spp/download.


NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
Eight-Core Processors
Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor
Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor
Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor
Six-Core Processors
Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor
Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor
Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor
Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor
Quad-Core Processors
Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor
Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor

Cache Memory
One of the following depending on Model
20MB shared L3 cache
NOTE: For Eight-core processors.
15MB shared L3 cache
NOTE: For Six-core processors.
10MB shared L3 cache
NOTE: For Quad-core processors.

Chipset Intel® C600 Series Chipset
Intel® E5-2400 Processor Family
NOTE: For more information regarding Intel chipsets, please see the following: http://www.intel.com/products/server/chipsets/.

Upgradeability Upgradeable to two (2) processors

On System Management Chipset HP iLO (Firmware: HP iLO 4)
NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection Advanced ECC
Memory Online Spare Mode (Rank Spare Mode)
Memory Lockstep Mode

Memory
One of the following depending on Model
Type HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC (UDIMM)
Standard (Pre-configured Models) 12GB (3 x 4GB) DDR3 1333MHz RDIMMs at 1.35V
24GB (6 x 4GB) DDR3 1600MHz RDIMMs at 1.5V
Maximum (LRDIMM) 384GB (12 x 32GB) up to 1333MHz at 1.35V
Maximum (RDIMM) 192GB (12 x 16GB) up to 1600MHz at 1.5V
192GB (12 x 16GB) up to 1333MHz at 1.35V
Maximum (UDIMM) 96GB (12 x 8GB) UDIMMs up to 1333MHz at 1.35V
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required.
NOTE: Please see QuickSpecs for technical specifications and additional information at
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html.
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.

Network Controller
One of the following depending on Model
NOTE: Supports one of the following FlexibleLOMs and iLO Management.

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
NOTE: Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. Fibre Channel over Ethernet (FCoE) is supported with the HP 10GbE Pass-Thru Module, HP 6120XG Blade Switch with the CEE license installed, HP Cisco B22HP Fabric Extender and HP Cisco B22HP Fabric Extender with 16 FET for BladeSystem c-Class. Learn more at www.hp.com/go/virtualconnect.

One (1) HP Flex-10 10Gb 2-port 530FLB FlexibleLOM
One (1) HP Ethernet 10Gb 2-port 560FLB FlexibleLOM
One (1) HP Ethernet 1Gb 2-port 361FLB FlexibleLOM
NOTE: FlexibleLOMs are not compatible with prior generation c-Class server blades

Standard iLO Network Controller:
One (1) 10/100 Mbps port for the HP iLO 4 On System Management Chipset
One (1) 10/100 Mbps port for the HP iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps.


Expansion Slots Two (2) I/O expansion mezzanine slots:
  • x8 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
    NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.
  • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
    NOTE: This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.
    NOTE: A second processor must be installed (in processor slot 2) to have access to the second expansion slot (expansion slot 2).

Mezzanine card options include:

  • Dual-port 10Gb FlexFabric,10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
  • Dual-port 8Gb Fibre Channel HBA for SAN connectivity
  • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
  • I/O accelerator mezzanine options for high transaction rate local storage

HP Server ROM HP ROM (read only memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HP's ProLiant ROM is used to configure the following:
  • Processor and chipset status registers
  • System memory, memory map, and memory initialization
  • System hardware configuration (integrated PCI devices and optional PCIe cards).
  • Customer-specific BIOS configuration using the HP ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide: www.hp.com/support/rbsu


Storage Controller One of the following depending on Model One (1) HP Smart Array P220i Controller with 512MB FBWC, (RAID 0 and 1)
NOTE: Upgradeable firmware with recovery ROM.
NOTE: The HP Smart Array P220i supports two (2) small form factor (SFF) hot plug drive bays.
One (1) HP Dynamic Smart Array B320i Controller (SATA RAID 0 and 1 standard; SAS RAID 0 and 1 standard on preconfigured models and optional with SAS License Key upgrade on Configure-to-Order models)
NOTE: HP Dynamic Smart Array B320i supports two (2) small form factor (SFF) hot plug drive bays.
NOTE: The server supports up to a combined total of two (2) FBWC supercap options.
Available Options: Smart Array Advanced Pack Software for enhanced performance, reliability, availability, and security of system data, SAS License Key (RAID 0 and 1) and HP 512MB FBWC for B-Series Smart Array.

Maximum Internal Storage Hot Plug SFF SAS 2.0TB 2 x 1.0TB
Hot Plug SFF SATA 2.0TB 2 x 1.0TB
Hot Plug SFF SAS SSD 1.6TB 2 x 800GB
Hot Plug SFF SATA SSD 1.6TB 2 x 800GB
NOTE: The ProLiant BL420c Gen8 server includes the new HP hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the ProLiant BL420c Gen8 drive bays.

Interfaces Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port One (1) internal USB 2.0 connector for USB flash media drive keys
NOTE: The above options are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability.

Industry Standard Compliance

ACPI 2.0
Microsoft® Logo certifications
USB 2.0 Support
IPMI 2.0
Secure Digital 2.0
TPM 1.2 Support
IEEE (specific IEEE standards dependant on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0


Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page http://www.hp.com/support/BL420cGen8

Enclosures HP offers two different c-Class server blade enclosures to meet your individual needs:
  • The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL420c Gen8 servers plugged vertically.
  • The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL420c Gen8 servers plugged horizontally.
  • Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE: For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html


Graphics Integrated Matrox G200 video standard
  • 1280 x 1024 (32 bpp)
  • 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

  • 16 MB Flash
  • 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

HP ProLiant BL420c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures.


On System Management

HP iLO Management Engine

HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:

  • HP iLO : The HP iLO (Integrated Lights-Out) management processor is the core foundation for the HP iLO Management Engine.
  • HP Agentless Management: Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.
  • HP Active Health System Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.
  • HP Intelligent Provisioning: lets customers provision and configure a single server without any separate media. No more SmartStart CDs or firmware DVD are needed.

    • To start Intelligent Provisioning:
      • Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST).
      • Please go to the Intelligent Provisioning website at www.hp.com/go/intelligentprovisioning for additional information and to view usage videos.
      • Use the Service Pack for ProLiant (SPP) at www.hp.com/go/spp to get firmware and software updates.
  • HP iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: www.hp.com/go/ilo/mobileapp

NOTE: For more information, visit: http://www.hp.com/go/ilo or HP iLO Management Engine technologies whitepaper


HP Insight management software

HP Service Pack for ProLiant (SPP) HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

NOTE: The Service Pack for ProLiant (which includes HP SUM) can be downloaded from www.hp.com/go/spp/download. More information can be found: http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp and http://www.hp.com/go/hpsum

Security
  • Power-on password
  • Administrator's password
  • Keyboard password (QuickLock)
  • HP iLO 4 On System Management Chipset with:
    • SSL encryption
    • Secure Shell version 2
    • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface
    • AES and RC4 encryption of video
  • External USB port enable/disable
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option
  • Advanced Encryption Standard (AES)
  • Intel® Advanced Encryption Standard-New Instructions (AES-NI)

Availability Memory
  • Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lockstep mode).
  • Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank.
  • Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in each paired memory channel must have identical HP part numbers.
  • Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing the likelihood of unplanned downtime.
  • Failed DIMM isolation improves the service time thus improving the overall system availability.
  • Address parity protection available on RDIMMs and LRDIMMs detects address bit errors improving service time and overall system availability.

Mezzanine options and I/O

  • Support for one (1) FlexibleLOM, providing two (2) (i.e. redundant) Ethernet ports
    Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each supporting multiple data paths routed to redundant interconnect modules.
  • Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing.

Storage

  • Two (2) Small Form Factor hot-plug SAS/SATA/SSD drive bays.
  • Choice of SAS controller:
    • HP Smart Array P220i Controller with 512MB FBWC, RAID 0 and 1 support, and upgradeable firmware with recovery ROM capability.
    • HP Dynamic Smart Array B320i controller with optional 512MB FBWC upgrade and/or SAS license upgrade for RAID 0 and 1 support (SAS license comes standard on pre-configured models and comes as an upgrade option when selecting Configure-to-Order models).
  • Optional HP D2200sb Storage Blade for direct attached and shared storage within the c-Class enclosure.
  • Optional dual-port Fibre Channel mezzanine cards for redundant SAN connections.

Processor/Chipset

  • Processor internal sensors & thermal control protection against over-temperature conditions.
  • Cache parity/ECC protects cache data from accidental data corruption.
  • Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, memory ECC, parity, and cache, and improves service time.
  • Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.
  • Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon subsequent boot.

Server Blade Enclosure Infrastructure

  • Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency, enclosure-based power supplies (configuration dependant).
  • Up to ten (10) redundant enclosure-based hot-plug HP Active Cool fans that scale to meet future demands and optimize airflow, reduce power draw, and improve acoustic performance.
  • Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
  • HP Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time and automatically adjusted with changes in demand for improved efficiency and reliability.
  • HP Dynamic Power Capping safely limits power usage without impacting performance by capping peak instead of average power usage, removes risk to electrical infrastructure with fast-acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling power limits based on workload demand.
  • Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, iSCSI, etc.
  • Enclosure crosslinks between adjacent to provide interconnect module-to-module connections or as Virtual Connect module stacking links.
  • Optional enclosure redundant Onboard Administrator system management module.

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Optional Features

Fibre Channel Support Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HP ProLiant BL420c Gen8.

Compatible SAN HP ProLiant BL420c Gen8 server blades are optimized for HP MSA, EVA and XP.

HP ProLiant BL420c Gen8 server blades are compatible with select 3rd party SANs. Please see blade storage page for more details at:
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html.

HP Virtual Connect HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HP Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console to administer network connections and workloads for thousands of servers. For more information on Virtual Connect Enterprise Manager, see http://www.hp.com/go/vcem. For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options, see http://www.hp.com/go/virtualconnect.

HP Insight management software

HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information about this service, see http://www.hp.com/services/insight.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
HP Matrix Operating Environment The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS). For more information, see http://www.hp.com/go/matrixoe.
HP iLO Scale-Out

The HP iLO Scale-Out license ideal for web/hosting/cloud service providers and High Performance Computing environments. This license is a specific subset of iLO Advanced functionality, provides fast remote access through Text Console via SSH, lower operational cost with Dynamic power capping, and faster time to resolution through Email-based Alerting and proactive notifications. With this newly designed HP iLO Scale-Out HPC customers now have a server management package solely design and priced for their massive data environments. HP iLO Scale-Out is available on all HP ProLiant Gen8 BL and SL platforms. For more information, see: http://www.hp.com/go/iLO/scale-out

HP iLO Advanced HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance

High Performance Clusters

HP Cluster Platforms HP Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster Management Utility HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

HP Insight Online HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime. http://www.hp.com/go/insightonline

HP Proactive Insight experience Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience

Expansion Blade Support Supports one (1) optional storage, tape, or PCI expansion blade.

Factory Express Portfolio for Servers and Storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.html

HP Simple Configurator SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Service and Support

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services
HP Care Pack services offer complete care and support expertise with committed response choices designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HP Proactive Care delivers high levels of system availability through proactive service management and advanced technical response.


Recommended HP Care Pack Services for your HP product
Optimized Care

3-Year HP 6 hour Call to Repair Response, Proactive Care
Combined reactive and proactive support for hardware and software helping optimize your systems and delivering high levels of availability through proactive service management and advanced technical response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the initial service request. A Technical Account Manager, as your single point of contact, will own your call or issue end to end until resolved.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service
This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed smoothly, efficiently, and with minimal disruption of your IT and business operations.


Standard Care

3-Year HP 24x7 4 hour response, Proactive Care Service
This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from HP's vast global resources.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service
This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed smoothly, efficiently, and with minimal disruption of your IT and business operations.


Related Services

HP Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best practices from across the industry plus extra technical skills to your IT team. This option is only available as an add-on to HP Proactive Care Support.

HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HP Care Pack services can be found at:
http://www.hp.com/go/cpc


Insight Online/Insight Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote Support http://www.hp.com/go/insightremotesupport and Insight Online http://www.hp.com/go/insightonline

NOTE: Insight Remote Support is a prerequisite for Proactive Care. All blades within a single HP BladeSystem enclosure must be at the same service level.


HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

NOTE: HP Support Center Mobile App is subject to local availability.


Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.


For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized ServiceOne Channel Partner. Or visit: www.hp.com/services/bladesystem

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Models

NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.

HP ProLiant BL420c Gen8 E5-2450 2P 24GB-R P220i SFF Server
668356-B21

Processor(s)

(2) Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W)

Cache Memory 20MB L3 Cache
Memory 24GB (6 x 4GB-R DDR3-1600)
NOTE: Total of 12 DIMM slots.
Network Controller One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
Storage Controller HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
Hard Drive None Ship Standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
Internal Storage SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB
Optical Drive Bay None
Expansion Slots 2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards.
Management HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
Warranty Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support.

HP ProLiant BL420c Gen8 E5-2450L 1P 12GB-R B320i SFF Server
668358-B21

Processor(s)

(1) Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W)

Cache Memory 20MB Level 3 cache
Memory 12GB (3 x 4GB-R DDR3-1333)
NOTE: Total of 12 DIMM slots.
Network Controller One (1) HP Ethernet 1Gb 2-port 361FLB FlexibleLOM
Storage Controller HP Dynamic Smart Array B320i Controller with SAS license key RAID 0,1
Hard Drive None Ship Standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
Internal Storage SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB
Optical Drive Bay None
Expansion Slots 2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards.
Management HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
Warranty Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support.

HP ProLiant BL420c Gen8 E5-2430 1P 12GB-R B320i SFF Server
668357-B21

Processor(s)

(1) Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W)

Cache Memory 15MB Level 3 cache
Memory 12GB (3 x 4GB-R DDR3-1333)
NOTE: Total of 12 DIMM slots.
Network Controller One (1) HP Ethernet 1Gb 2-port 361FLB FlexibleLOM
Storage Controller HP Dynamic Smart Array B320i Controller with SAS license key RAID 0,1
Hard Drive None Ship Standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
Internal Storage SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB
Optical Drive Bay None
Expansion Slots 2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards.
Management HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
Warranty Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support.

HP ProLiant BL420c Gen8 E5-2403 1P 12GB-R B320i SFF Server
668359-B21

Processor(s)

(1) Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W)

Cache Memory 10MB Level 3 cache
Memory 12GB (3 x 4GB-R DDR3-1333)
NOTE: Total of 12 DIMM slots.
Network Controller One (1) HP Ethernet 1Gb 2-port 361FLB FlexibleLOM
Storage Controller HP Dynamic Smart Array B320i Controller with SAS license key RAID 0,1
Hard Drive None Ship Standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
Internal Storage SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB
Optical Drive Bay None
Expansion Slots 2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A and Type B mezzanine cards.
Management HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control
Form Factor Up to eight (8) half-height blades supported in the HP BladeSystem c3000 Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000 Enclosure
Warranty Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order server blades must start with a CTO Blade Server.
NOTE: FIO indicates that this option is only available as a factory installable option.

Step 1: Base Server Blade Configuration (Select a configurable Blade)
HP Models HP ProLiant BL420c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server
640996-B21
Configurable Model ships with:
One (1) FlexibleLOM connector providing a choice of one (1) of the supported 10Gb FlexibleLOMs (see Step 2)
One (1) SAS controller connector providing a choice of one (1) of the supported SAS controllers (see step 2)
Two (2) HP small form factor hot-plug SAS/SATA/SSD hard drive bays
One (1) x8 PCIe 3.0 I/O expansion slot (Type A)
One (1) x16 PCIe 3.0 I/O expansion slot (Type B)
One (1) integrated USB connector and one (1) Micro SDHC connector
One (1) TPM connector
HP iLO Management Engine (standard)

HP ProLiant BL420c Gen8 1Gb FlexibleLOM Configure-to-order Blade Server 690142-B21
Configurable Model ships with:
One (1) FlexibleLOM connector providing a choice of one (1) of the supported 1Gb FlexibleLOMs (see Step 2)
One (1) SAS controller connector providing a choice of one (1) of the supported SAS controllers (see step 2)
Two (2) HP small form factor hot-plug SAS/SATA/SSD hard drive bays
One (1) x8 PCIe 3.0 I/O expansion slot (Type A)
One (1) x16 PCIe 3.0 I/O expansion slot (Type B)
One (1) integrated USB connector and one (1) Micro SDHC connector
One (1) TPM connector
HP iLO Management Engine (standard)


Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
HP Processors For single processor configuration choose:
Core Processor Option Kits
NOTE: The BL420c Gen8 supports one or two processors.
NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one xxxxxx-B21 in Step 3.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: the letter "L" preceding the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

Eight-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) FIO Processor Kit 667372-L21
HP BL420c Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) FIO Processor Kit 667373-L21
HP BL420c Gen8 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) FIO Processor Kit 667423-L21
Six-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) FIO Processor Kit 667374-L21
HP BL420c Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) FIO Processor Kit 667375-L21
HP BL420c Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) FIO Processor Kit 667424-L21
HP BL420c Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) FIO Processor Kit 667376-L21
Quad-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) FIO Processor Kit 667421-L21
HP BL420c Gen8 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) FIO Processor Kit 667422-L21

HP Memory NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.
NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document.
HP SmartMemory
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit
647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit 647903-B21
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: www.hp.com/go/ddr3memory-configurator.

HP Networking FlexibleLOM Adapters
NOTE: The server requires one (1) FlexibleLOM that is installed in the FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2.

10Gb FlexibleLOM Adapters
HP Ethernet 10Gb 2-port 560FLB FIO Adapter 684214-B21
HP FlexFabric 10Gb 2-port 554FLB FIO Adapter 684212-B21
HP FlexFabric 10Gb 2-port 534FLB FIO Adapter 700742-B21
HP Flex-10 10Gb 2-port 530FLB FIO Adapter 684211-B21
NOTE: HP ProLiant BL420c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server (640996-B21) must be selected in order to select one of the 10Gb FlexibleLOM Adapters
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
1Gb FlexibleLOM Adapters

HP Ethernet 1Gb 2-port 361FLB FIO Adapter
NOTE: HP ProLiant BL420c Gen8 1Gb FlexibleLOM Configure-to-order Blade Server (690142-B21) must be selected in order to select the 1Gb FlexibleLOM Adapter.
684216-B21

HP Storage Controller HP Dynamic Smart Array B320i FIO Adapter for BL420c Gen8
NOTE: B320i controller requires SAS License Key for SAS RAID 0,1 (see "HP Storage Controllers - Optional Upgrades" below in the section labeled "Core Options").
651732-B21
HP Smart Array P220i Controller FIO Kit
NOTE: P220i Controller comes standard with 512MB FBWC.
690164-B21

Step 3: Choose Additional Factory Integration Options
HP Insight Software HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License C6N36A

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Core Options

HP Networking NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.
NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when connected to an interconnect module with 10Gb Ethernet downlinks.
NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to an interconnect module with 1Gb Ethernet downlinks.
NOTE: The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP BladeSystem c3000 Enclosure).

10 Gigabit Ethernet Mezzanines
HP Ethernet 10Gb 2-port 560M Adapter 665246-B21
HP FlexFabric 10Gb 2-port 554M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14221_na/14221_na.html.
647590-B21
HP Flex-10 10Gb 2-port 552M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14218_na/14218_na.html.
674764-B21
HP FlexFabric 10Gb 2-port 534M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14617_na/14617_na.html
700748-B21
HP Flex-10 10Gb 2-port 530M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14217_na/14217_na.html.
631884-B21
1 Gigabit Ethernet Mezzanines
HP Ethernet 1Gb 4-port 366M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14335_na/14335_na.html
615729-B21
FlexibleLOM Adapters
NOTE: The server supports one (1) FlexibleLOM that is installed in the FlexibleLOM connectors and is already included in the pre-configured models. However, it must be added in Step 2 for Configure-to-order Models. The FlexibleLOM options below are used to change these original FlexibleLOMs.

10 Gigabit Ethernet FlexibleLOM Adapters
HP Ethernet 10Gb 2-port 560FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14331_na/14331_na.html
655639-B21
HP FlexFabric 10Gb 2-port 554FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14219_na/14219_na.html
647586-B21
HP FlexFabric 10Gb 2-port 534FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14617_na/14617_na.html
700741-B21
HP Flex-10 10Gb 2-port 530FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14216_na/14216_na.html
656590-B21
1Gb FlexibleLOM Adapters

HP Ethernet 1Gb 2-port 361FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14333_na/14333_na.html
652500-B21

HP Fibre Channel HP LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class 659818-B21
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14338_na/14338_na.html
HP QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
651281-B21
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14230_na/14230_na.html

HP Processors NOTE: The BL420c Gen8 supports one or two processors.
NOTE: The BL420c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: the letter "L" preceding the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

Eight-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor Kit 667372-B21
HP BL420c Gen8 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor Kit 667373-B21
HP BL420c Gen8 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor Kit 667423-B21
Six-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor Kit 667374-B21
HP BL420c Gen8 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor Kit 667375-B21
HP BL420c Gen8 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor Kit 667424-B21
HP BL420c Gen8 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor Kit 667376-B21
Quad-Core Processors
HP BL420c Gen8 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor Kit 667421-B21
HP BL420c Gen8 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor Kit 667422-B21

HP Memory NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html (Worldwide)
NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.
NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document.
HP SmartMemory
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit 647903-B21
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: www.hp.com/go/ddr3memory-configurator.

HP Hard Drives NOTE: The ProLiant BL420c Gen8 server includes the new HP hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the BL420c Gen8 drive bays.
NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
NOTE: HP hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: The hard drive options are not required when configuring a drive-less model.

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 655710-B21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 655708-B21
NOTE: Please see the QuickSpecs for technical specifications and additional information at:
http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652589-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652583-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652572-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652564-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652611-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 652605-B21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652749-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652745-B21
NOTE: Please see QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html.
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
690829-B21
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
690827-B21
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 690825-B21
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653082-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive 653078-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
NOTE: These drives support Gen8 servers only.
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive 717965-B21
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive 734360-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives
NOTE: These drives support Gen8 servers only.
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive 717973-B21
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive 717971-B21
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive 717969-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691868-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691866-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive
691864-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive 691862-B21
NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
NOTE: HP Dynamic Smart Array B320i Controller requires a SAS license key for RAID 0 and 1 functionality for SAS drives when selecting a Configure-to-Order server. The SAS RAID license comes standard with preconfigured servers. SATA RAID 0/1 standard.

NOTE: Please see the QuickSpecs for technical specifications and information at:
http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html.

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Additional Options

HP Insight software

HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License C6N27A
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License C6N28ABE

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License

C6N36ABE

HP Insight Control Server Provisioning Media Kit BD883A
HP Insight Management Media Kit
NOTE: HP Insight Management Media Kit contains DVDs without licenses. Contains HP Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.
C6N31A
NOTE: HP Insight Control 7.2 introduces Insight Control server provisioning, a new capability ideal for multi-server OS and firmware provisioning to ProLiant and BladeSystem servers. Insight Control server provisioning is included and licensed as part of HP Insight Control. A media kit, "HP Insight Control server provisioning USB media kit" (# BD883A), including a USB, is available for customers who require a physical copy of the media loaded with Insight Control server provisioning software. Please note that this media kit is separate and in addition to the "HP Insight Management DVD media kit" (#C6N31A).
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: Licenses ship without media. The HP Insight Management Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license kits, please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License 452151-B21
NOTE: Licenses ship without media. The HP Insight Management Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html.


HP iLO Advanced HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management

HP iLO Advanced for BladeSystem including 1yr 24x7 Tech Support and Updates Electronic License E6U60ABE
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License 512488-B21
HP iLO Advanced Blade including 3yr 24x7 Tech Support and Updates Electronic License E6U63ABE
HP iLO Advanced Blade 1 Server License with 3yr 24x7 Tech Support and Updates BD502A
HP Integrated Lights-Out (iLO)

HP iLO Scale Out
HP Integrated Lights-Out Scale-Out 3yr 24x7 Tech Support and Updates Flex Quantity License
BD776A
HP Integrated Lights-Out Scale-Out 1yr 24x7 Tech Support and Updates Flex Quantity License BD778A
HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU
BD776AAE
HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU
BD778AAE
HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Tracking License
BD777A
HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Tracking License BD779A
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the iLO QuickSpecs at http://www.hp.com/go/iLO


High Performance Clusters

HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.
BD476A
HP Insight Cluster Management Utility Media
NOTE: For additional license kits please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html.
BD477A

HP I/O Accelerator Options

HP 1.2TB Multi Level Cell IO Accelerator for BladeSystem c-Class
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
QK763A
HP 785GB Multi Level Cell IO Accelerator for BladeSystem c-Class
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
QK762A
HP 365GB Multi Level Cell IO Accelerator for BladeSystem c-Class
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
QK761A

HP Security

HP Trusted Platform Module Option 488069-B21
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.


HP Storage Controllers HP Smart Array P731m/2G Controller
HP Smart Array P731m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller 698535-B21
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information at:
http://h18000.www1.hp.com/products/quickspecs/14626_na/14626_na.html.
(Smart Array P731m Controller)

HP Smart Array P721m Controller
HP Smart Array P721m/2G FBWC 4-ports Ext Mezzanine SAS Controller
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
650072-B21
HP Smart Array P721m/512 4-ports Ext Mezzanine SAS Controller
NOTE: This option is a Type B mezzanine and only supported on mezzanine 2, which requires the second processor to be installed for functionality.
655636-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/14404_na/14404_na.html.
(Smart Array P721m Controller)

HP Dynamic Smart Array B320i Specific Options:
NOTE: The following storage controller options below are not supported on the HP Smart Array P220i controller.
HP 512MB B-series Dynamic Smart Array Flash Backed Write Cache with 24 inch Cable 676473-B21
HP SAS License Key No Media 1 Single Server License for B320i BC393A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information at:
http://h18000.www1.hp.com/products/quickspecs/13200_na/13200_na.html
(Smart Array Advanced Pack)


HP InfiniBand Mezzanines

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active.
NOTE: InfiniBand QDR and FDR speeds are only supported on the HP BladeSystem c7000 Enclosure. For additional information, please see the HP BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/12586_na/12586_na.html
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html

HP Infiniband QDR/Ethernet 10Gb 2-port 544M Adapter 644160-B21
NOTE: The QDR InfiniBand adapter may be installed in any mezzanine slot of the server.
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544M Adapter
NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode.
644161-B22

HP Ultrium Tape Blades

HP StoreEver LTO-4 Ultrium SB1760c Tape Blade
NOTE: LTO-4 Ultrium tape technology.
AQ697B
HP StoreEver LTO-5 Ultrium SB3000c Tape Blade
NOTE: LTO-5 Ultrium tape technology.
BS580B
NOTE: For the above Ultrium tape drives, please see the QuickSpecs for technical specifications and additional information at: http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html

HP Storage Blades HP D2200sb PCIe Storage Blade
NOTE: Please see the QuickSpecs for technical specifications and additional information at: http://h18006.www1.hp.com/storage/bladesystem/index.html.
AP880A

HP Expansion Blade

HP BLc PCI Expansion Blade
NOTE: The PCI Expansion Blade provides PCI card slots for an adjacent c-Class Server Blade. Order one PCI expansion Blade for each server blade needing standard PCI-X or PCIe expansion slots.
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect board which requires installation.
NOTE: Please see the QuickSpecs for technical specifications and additional information at http://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html
448018-B21

HP USB and SD Options HP 32GB microSD Enterprise Mainstream Flash Media Kit 700139-B21
HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 4GB microSD Enterprise Performance Flash Media Kit
NOTE: The USB flash media and Secure Digital cards are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability. Learn more at http://h18004.www1.hp.com/products/servers/options/flash_drives.html.
647444-B21

HP Care Pack Services Proactive Care - Collaborative Support plus Proactive services delivered by the on shore/near shore Advanced Solution Center (ASC) and backed by the global delivery organization, end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.
HP 3 year 4 hour 24x7 ProLiant BL4xxc Proactive Care Service U3B14E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant BL4xxc Proactive Care Service
U3B17E
HP 3 year 6 hour Call To Repair 24x7 ProLiant BL4xxc Proactive Care Service U3B20E
HP 3 year 6hr Call To Repair 24x7 with Defective Media Retention ProLiant BL4xxc Proactive Care SVC U3B23E
Proactive Care Personalized Support Environmental Option - to add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advice for the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Installation Services - reduce the time required to get your system up and running and help minimize disruptions to your business.

HP Install c-Class Server Blade Service UE493E
HP Hardware Installation during Non Standard Hours c-Class Enclosure and Server Blade Service UG869E
Additional HP Care Pack services can be found at:
http://www.hp.com/go/cpc

contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Memory

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture
Each Intel® Xeon® E5-2400 family processor socket contains three memory channels that support two DIMMs each for a total of six (6) DIMMs per installed processor or a grand total of twelve (12) DIMMs for the server. Up to 32GB capacity DIMMs are supported for 384GB of memory (12 DIMM slots x 32GB per DIMM).

Memory Population Rules and Guidelines:

  • A minimum of one DIMM is required per server.
  • Install DIMMs only if the corresponding processor is installed.
  • If only one processor is installed in a two processor system, only half of the DIMM slots are available.
  • To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
  • RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
  • RDIMMs, LRDIMMs, and UDIMMs cannot be mixed.
  • DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
  • The maximum memory speed is a function of the memory type, memory configuration, and processor model.
  • The maximum memory capacity is a function of the memory type and number of installed processors.
  • HP memory from previous generation servers is not compatible with the BL420c Gen8 Server Blade.
  • To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html.
  • For memory population rules and additional memory guidelines, please see the BL420c Gen8 user guide at http://www.hp.com/support.

BL420c Gen8 Supported Memory Bandwidth
DIMM Type Registered DIMMS (RDIMMs) Load Reduced (LRDIMMs) Unbuffered with ECC DIMMs (UDIMMs)
DIMM Rank Single Rank (1R) Dual Rank (2R) Single Rank (1R) Dual
Rank (2R)
Dual
Rank (2R)
Quad
Rank
(4R)
Single
Rank
(1R)
Dual
Rank
(2R)
DIMM Capacity 4GB 4GB 8GB 8GB 8GB 16GB 16GB 32GB 2GB 2GB 4GB 4GB 8GB 8GB
DIMM Native Speed (MHz) 1333 1600 1333 1600 1600 1333 1600 1333 1333 1600 1333 1600 1600 1333
Voltage 1 LV Std LV Std Std LV Std LV LV Std LV Std Std LV
1 LV= low voltage at 1.35V; Std = standard voltage at 1.5V.

SLOTS THAT CAN BE POPULATED
12 slot servers 12 12 12 12 12 12 12 12 12 12 12 12 12 12

MAXIMUM CAPACITY (GB) 2
12 slot servers 48 48 96 96 96 192 192 384 24 24 48 48 96 96

POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel 1333 1600 1333 1600 1600 1333 1600 1333 3 1333 1600 1333 1600 1600 1333
2 DIMM Per Channel 1333 1600 1333 1600 1600 1333 1600 1333 3 1333 4 1600 1333 4 1600 1600 1333 4
2 Maximum capacity will vary based on individual server platform qualification schedule
3 Using HP SmartMemory, 1333MHz LRDIMM operate at 1.35V for 2 DIMMs per channel (2DPC). Third party 1333MHz LRDIMM memory may only support 1.5V at 2DPC.
4 Using HP SmartMemory, UDIMMs at 2DPC are supported up to 1333MHz. Third party UDIMMs at 2DPC may only support up to 1066MHz.
NOTE: Maximum memory speed is a function of the processor QPI bus speed; see the table below "Memory Speed by Processor Model".

Memory Speed by Processor Model
Processor Models Supported Memory Speeds
E5-2450, E5-2450L, E5-2470 1600/1333/1066MHz
E5-2420, E5-2430, E5-2430L, E5-2440 1333/1066MHz
E5-2403, E5-2407 1066MHz



Standard and Maximum Memory Capacity (Pre-configured Models)
Pre-Configured Models Standard Memory Maximum Memory Plus Optional Memory Standard Memory Replaced with Optional Memory
E5-2450 (6x4GB 1600) 24GB
(6x 4GB)
120GB
(6x4GB + 6x 16GB)
384GB
(12x 32GB LRDIMM)
E5-2450L, E5-2430, E5-2403 (3x4GB 1333) 12GB
(3x 4GB)
156GB
(3x 4GB + 9x 16GB)
384GB
(12x 32GB LRDIMM)

NOTE: Capacity references are rounded to the common gigabyte (GB) values.
  • 2GB = 2,048MB
  • 4GB = 4,096MB
  • 8GB = 8,192MB
  • 16GB = 16,384MB
  • 32GB = 32,768MB

Memory options part number decoder

Following are memory options available from HP:
HP Memory HP SmartMemory
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit 647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit 672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit 669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit 647909-B21
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit 647903-B21
NOTE: Depending on the memory configuration and processor model, 1600MHz and 1333MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at: www.hp.com/go/ddr3memory-configurator.
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Storage

1-2
2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD hard drives

Maximum Internal Storage
Hot Plug SFF SAS
2.0TB
2 x 1.0TB
Hot Plug SFF SATA 2.0TB 2 x 1.0TB
Hot Plug SFF SAS SSD 1.6TB 2 x 800GB
Hot Plug SFF SATA SSD 1.6TB 2 x 800GB
contents
 Overview      Standard Features      Optional Features      Service and Support      Pre-configured Models      Smart Buys      Configuration Information - Factory Integrated Models      BL420c G8 Core Options      Additional Options      BL420c G8 Memory      Storage      Technical Specifications      BL420c G8 QuickSpecs images/line.gif (50 bytes)

Technical Specifications

System Unit Dimensions (H x W x D)
(with bezel)
7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)
Weight
(approximate)
Maximum: all processors, 12 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed) 14.00 lb (6.33 kg)
Minimum: one processor and 2 DIMMs installed 10.50 lb (4.75 kg)
Power Specifications For power specifications including input requirements, BTU rating, and power supply output, please see the:

To review typical system power ratings use the HP Power Advisor which is available via the online tool located at: www.hp.com/go/hppoweradvisor.

System Inlet Temperature Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating -30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating 10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating 5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating 3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).
Non-operating 9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html

HP Smart Array P220i Controller Disk Drive Interface 6Gb/s SAS (Serial Attached SCSI)
Server Interface x4 PCI Express host interface
Cache Memory 512MB flash backed write cache (FBWC) cache standard
Logical Drives Supported 64 (with included 512MB cache)
Host Memory Addressing 64-bit, supporting servers memory space greater than 4GB
RAID Support RAID 1 (mirroring) and RAID 0 (striping)
Other Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HP Dynamic Smart Array B320i Controller

Dimensions

Embedded
Disk Drive Interface - Transfer rate Up to 6Gb/s SAS (Serial Attached SCSI)
Up to 6Gb/s SATA (Serial ATA)

Connectors

2 internal 4X connectors
Server Interface x8 PCIe 3.0 provides 8GB/s maximum bandwidth

Speed

8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

Zero Memory RAID has no cache memory
optional 40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)

Logical Drives Supported

Zero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space
Hot Plug Support Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)
RAID 1+0 (Striping & Mirroring)
RAID 5 with optional 512MB FBWC
NOTE: 512 MB cache is required to enable RAID 5 support

HP FlexFabric 10Gb
2-port 554FLB FlexibleLOM
Type Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)
Network Processor Emulex BE3
Data Transfer Method x8 PCIe 2.0
Network Transfer Rate Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the 554FLB adapter transmits from the server at 20Gbps (theoretical) full duplex.
IEEE Compliance 802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x
Standard Features ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Hardware-based accelerated iSCSI
iSCSI boot
Flex-10 capability
Fibre Channel over Ethernet (FCoE)
TCP/IP offload engine (stateless TCP/IP)
Autosensing 1Gb/10Gb Ethernet

HP Ethernet 1Gb
2-port 361FLB Adapter
Type Dual port 1Gb Ethernet FlexibleLOM
Network Processor Intel I350 Ethernet Controller
Data Transfer Method x4 PCIe 2.0
Network Transfer Rate Two ports, each at 1000 Mbps full duplex (theoretical maximum)
NOTE: The 361FLB adapter transmits from the server at only 1 Gbps full duplex per port.
IEEE Compliance 802.1p, 802.1Q, 802.3, 802.3ad, and 802.3x, IEEE1588, 802.1AS
Standard Features ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing
TCP/IP checksum offloading
large send offloading
Wake-on-LAN
jumbo frames
PXE
VLAN tagging
Virtualization
IEEE 1588, DMA Coalescing
HP Sea of Sensors 3-D Technology

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Toll Free: 866.252.9743            Ph: 613.599.1287            Fax: 613.599.8120
Servers | Blades | All Hard Drives | U320 Drives | SAS/SATA Drives | Memory | Controllers | Processors | Tape Drives | Power Supplies | Misc
Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account | Add to favorites

 Controllers                        LegalPrivacy | | Backup SiteContact us | Site Problem?  |  Controllers           Controllers           Controllers
Controllers Hard Drives SAS Hard Drives u320 Hard Drives u320 Hard Drives2 processors processors2 memory tape drives Misc ipphones servers blades power supplies
