 HPE  Proliant DL185 G5 QuickSpecs Flag US QuickSpecs
Folder-Closed DL185 G5 HDD SSD Folder-Closed DL185 G5 Processors Folder-Closed DL185 G5 Memory
Folder-Closed DL185 G5 Controllers Folder-Closed DL185 G5 Networking Folder-Closed DL185 G5 Power
Folder-Closed DL185 G5 Quickspecs Folder-Closed DL185 G5 Quickspecs Folder-Closed DL185 G5 Options New  Refurb
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Proliant DL185 G5 Overview

HP ProLiant DL185 Generation 5 (G5)

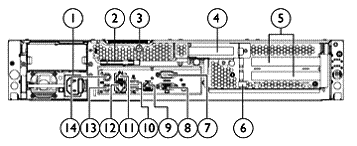

Proliant DL185 G5 Front View:Proliant DL185 G5 Rear View:
1.Access panel
1.
Power Supply Cable Socket
2.Front LED Indicators
2.
T10/T15 Wrench
3.Power on/off
3.
Thumbscrew For Top DL185 G5 Cover
4.Optional DVD-RW or DVD-ROM drive
4.
Low Profile Card Slot
5.Front USB Ports (2)
5.
PCI Expansion Card Slot (top is slot 2, bottom is slot 1)
6.Non-Hot Plug Non redundant fans (4 fans)
6.
Thumbscrew For PCI Cage
7.Air Baffle
7.
Serial Port
8.PCI Cage
8.
VGA Port
9.System Board
9.
Management LAN Port

10.
Two USB 2.0 Ports
11.
GbE LAN Port For NIC2
12.
GbE LAN Port For NIC1
13.
PS/2 Keyboard Port (purple)
14.
PS/2 Mouse Port (green)

What's New
  • Support for SATA Hot Plug 3.5" Midline (MDL) Hard Drives
  • Support for Smart Array Controller with BBWC

At A Glance

The new HP ProLiant DL185 G5 is a 2U, dual processor server designed for quality, performance, and flexible deployments to meet the needs of the emerging markets, SMB market, and Corporate scale out.

  • Processors:
    • Supports up to two Quad-Core AMD Opteron™ 2300 sequence processors
  • DL185 G5 Memory:
    • Supports up to 32 GB PC2-6400 DIMMs (DDR2-800) with Advanced ECC
    • Supports up to 64 GB PC2-5300 DIMMs (DDR2-667) with Advanced ECC
  • Internal Drive Support:
    • Internal storage capacity (up to 14 hard drives via CTO or up to 12 hard drives via BTO)
      • 8 hard drive models:
        • SAS/SATA Capacity: Supports up to 16.0TB (8 x 2TB)
      • 12 hard drive models:
        • SAS/SATA Capacity: Supports up to 24.0TB (12 x 2TB)
      • Optional 14 drive support available with Rear 2 Hard Drive Kit
        NOTE: Available via CTO only
        • SAS/SATA Capacity: 24.0TB (14 x 2TB)
  • Network Controller:
    • o Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
  • Storage Controllers:
    • 8 hard drive models
      • HP Smart Array E200/128 BBWC Controller
    • 12 hard drive models
      • HP Smart Array P400/256MB Controller
  • Expansion Slots:
    • Standard Riser: (1) x4 PCI-E (LP), (2) x8 PCI-E (FL/FH)
      • Option 1: (1) x4 PCI-E (LP), (2) 100MHz PCI-X 64-bit
      • Option 2: Rear DVD optional riser, (2) x8 PCI-e FL/FH slots (12HDD model only, replaces LP PCI-e slot)
      • Option 3: (1)x4 PCI-E (LP), Rear dual HDDs (12HDD model only, replaces all FL/FH PCI-e slots)
  • Infrastructure Management:
    • HP ProLiant Lights Out 100i Remote Management support (IPMI 2.0 and SMASH support
    • Virtual Media plus Virtual KVM support with LO100i Advanced license
    • HP Insight Control for Linux, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control for Linux supports Linux-based central management servers.
  • USB Ports:
    • Five USB ports (2) up front, (2) rear, (1) internal (optional)
  • Optical Drive:
    • Support for one (optional): Multi-bay DVD
      • NOTE: For 12 hard drive models, optical drive support is available via rear DVD cage kit (P/N 513168-B21). DVD Drive not included.
    • Optional Floppy (USB only, USB key)
  • Power Supply:
    • 750W Power Supply (Hot Plug, Autoswitching) ships standard
    • High Efficiency 1200W Power Supply (Redundant Hot Plug, Autoswitching) (Optional) CSCI 2007/2008
      • NOTE: Climate Savers Computing Initiative, 2007-2008 Listed Compliant)
  • Form Factor:
    • Rack (2U), (3.5 in/8.89 cm)
  • Deployment/Serviceability:
    • Tooled access to all system components for easy in rack serviceability
    • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
      NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support (3-1-1-in AP and Brazil) with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Standard Features

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model
AMD Opteron™ processor Quad-Core Model 2389 (2.9 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2384 (2.7 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2380 (2.5 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2379 (2.4 GHz, 55W ACP)
AMD Opteron™ processor Quad-Core Model 2376 (2.3 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2374HE (2.2 GHz, 55W ACP)
AMD Opteron™ processor Quad-Core Model 2356 (2.3 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2354 (2.2 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2352 (2.1 GHz, 75W ACP)
AMD Opteron™ processor Quad-Core Model 2346HE (1.8 GHz, 55W ACP)
AMD Opteron™ processor Quad-Core Model 2344HE (1.7 GHz, 55W ACP)
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: https://www.amd.com/powernow.

UpgradeabilityUpgradeable to two processors

Chipset ServerWorks HT2100 and HT1000

Cache Memory
One of the following depending on Model
4 x 512 KB Level 2 cache and 6 MB shared Level 3 cache (2300 sequence)
4 x 512 KB Level 2 cache and 2 MB shared Level 3 cache (2300 sequence)
2 x 1 MB Level 2 cache (2200 sequence)

Memory ProtectionAdvanced ECC capabilities

Memory
One of the following depending on Model

Type REG PC2-5300 DIMMs (DDR2-667)
NOTE: DIMM banks are active only when the corresponding processor socket is populated.
Standard - 2200 series
(8 Hard Drive Model)
1 GB (2 x 512 MB)
Standard - 2300 series
(8 Hard Drive Model)
2 GB
(2 x 1 GB)
Standard
(12 Hard Drive Model)
4 GB (2 x 2 GB)
Maximum 64 GB (8 x 8 GB)
Type REG PC2-6400 DIMMs (DDR2-800)
Standard - 2300 series
(8 Hard Drive Model)
2 GB
4 GB
(2 x 1 GB)
(2 x 2 GB)
Standard
(12 Hard Drive Model)
4 GB (2 x 2 GB)
Maximum 32 GB (8 x 4 GB)

Network Controller Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter

Expansion Slots #
Technology
Bus Width
Connector Width*
Bus Number**
Form Factor
Notes
1
PCI-Express
x8
x8
4
Full Length/ Full Height
2
PCI-Express
x8
x8
3
Full Length/ Full Height
3
PCI-Express
x4
x8
5
Low Profile
1*
PCI-X
64-bit
N/A
Dynamic
Low Profile
Device Number 1
2*
PCI-X
1333
N/A
Dynamic
Low-Profile
Device Number 2
  * Optional - With PCI-X riser installed, replacing Full Length/Full Height PCI-e slots.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

Storage Controller8 Hard Drive Models HP Smart Array E200/128 BBWC Controller
12 Hard Drive ModelsHP Smart Array P400/256 MB Controller
NOTE: A diskette drive is needed to install storage controller drivers during a Windows operating system installation from CD.

StorageDiskette Drive Via USB only
Optical DrivesNone standard
Optional 8x DVD-RW drive, slim
NOTE: For 12 hard drive models, optical drive support is available via rear DVD cage kit (P/N 513168-B21).
Hard DrivesNone Standard
NOTE: Up to 14 Hot Plug SAS/SATA 3.5" hard drives supported via installation of the Rear 2 Hard Drive Option Kit (P/N 449736-B21). Supports 12 hard drive server models only. Hard Drives not included.

Maximum Internal Storage Hot Plug SATA 24.0TB 14 x 2TB
Hot Plug SAS 14.0TB14 x 1TB
NOTE: Fourteen (14) hard drives are available via CTO only with the Rear 2 Hard Drive Kit. For additional information; please see the Configuration to Order section in this QuickSpecs.

Interfaces Network RJ-45 (Ethernet) 2
10/100/1000 NIC ports (plus 1 dedicated for the HP ProLiant Lights Out 100i Remote Management)
Serial 1
Pointing Device (Mouse) 1
Graphics 1
Keyboard 1
USB 5 total ports: (2) USB up front, (2) port rear, (1) port internal (optional)
NOTE: Please see the following URL for additional information regarding USB support:
https://h18004.www1.hp.com/products/servers/platforms/usb-support.html.

Graphics

32 MB shared supporting 1600x1200x16M resolution


Form Factor Rack (2U), (3.5 in/8.89 cm)

Embedded Manageability Lights-Out 100i

HP Lights-Out 100i Remote Management delivers affordable, entry level remote management capabilities for HP ProLiant 100 Series servers with embedded LO100i. It allows customers or their service providers to remotely manage ProLiant 100 Series servers remotely over a LAN or the Internet and consists of the following:

  • LO100i Standard is embedded remote management and provides basic remote control via  telnet, browser, and IPMI 2.0 and SMASH
  • LO100i Advanced Pack License are upgrades for all the features of LO100i Select plus Virtual KVM (graphical hardware-based, remote console)

NOTE: Flexible and volume quantity (AKA) license kits are available for Lights-Out 100 Advanced Pack licenses as well as Electronic License To Use (E-LTU). AKA Tracking licenses require a 100 unit minimum forecast at initial contract signing. For these additional part numbers, please refer to each software products' QuickSpecs at this link for more information: https://h18004.www1.hp.com/products/servers/management/
remotemgmt.html

HP Insight Control management software HP Insight Control for Linux HP Insight Control for Linux, as a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. The Insight Control for Linux suite installs and license software modules that are integrated into HP System Insight Manager.

The HP Insight Control suite for Linux (IC-Linux) serves environments requiring a Linux-based management consoles. See www.hp.com/go/ic-linux

HP Insight Control suites include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.
Insight Control server deployment HP Insight Control server deployment is a deployment solution for HP ProLiant and Integrity servers hosted on a Windows CMS. It automates the process of deploying and provisioning server software, enabling companies to quickly and easily adapt to changing business demands. Insight Control server deployment includes software optimizations for HP servers, including the HP scripting toolkits, configuration jobs for leading industry-standard operating systems, sample unattended files, and HP server support packs that include software drivers, management agents, and important documentation. Deploying servers can be accomplished either through imaging or through scripting.

Insight Control server deployment is hosted on a Windows server and is intended for heterogeneous environments deploying Windows, Linux, VMware ESX and Microsoft Hyper-V systems.

Insight Control server deployment includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: https://www.hp.com/services/insight.

Industry Standard Compliance ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant

Manageability

Embedded HP ProLiant Lights Out 100i Remote Management with upgrades to LO100i Advanced


SecurityPower-on password
Setup password

Server Power Cords

One Highline IEC Power cord ships standard (for connection to a Power Distribution Unit)
NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords that allow connection to 110V US wall outlets in a home or office. HP ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15), the NEMA power cord (AF556A) must be ordered separately.

If a local power cord is required, please reference the following power cord matrix: https://www.hp.com/go/powercordmatrix.

NOTE: Localized cables included with geographic specific models in other world regions.

UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:
https://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html.

Power Supply 750 Watts - (Hot Plug, Autoswitching) Ships Standard
1200 Watts - High Efficiency 12V Hot Plug AC Power Supply (Autoswitching)
750 Watts - Power Supply (Redundant Hot Plug, Autoswitching) (Optional)
1200 Watts - High Efficiency Power Supply (Redundant Hot Plug, Autoswitching), CSCI 2007/2008 (Optional)
NOTE: Climate Savers Computing Initiative, 2007-2008 Compliant.
NOTE: Redundant Power Supply configuration for 1200W power supply requires both power supplies to be 1200W. The 1200W and 750W power supplies cannot be mixed.
NOTE: For additional information please see the Options section of this QuickSpecs.

System Fans 4 system fans ship standard; Non-hot plug, Non-redundant

Operating Systems and Virtualization SoftwareMicrosoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)

NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: : https://www.hp.com/go/supportos and our driver download page https://www.hp.com/support/DL185G5


Rack Airflow Requirements Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.


Rack Kit

HP ProLiant DL185 G5 servers have fixed rails which provide support for round or square mounting holes, including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".


Telco and Threaded Hole Rack Support Support for all 2-post Telco racks and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at: www.hp.com/go/rackandpower

HP Factory Express Capability

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hp.com/go/factory-express.


HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. https://www.hp.com/products/configurator.


Service and Support

HP Care Pack Services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server that are purchased at the same time or afterward and internal to the enclosure. It also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service – Simplify ProLiant solution implementation, maintenance and management.

  • Support Service – 3-Year 24x7 4 hr Response service support coverage
  • Deployment Service – Hardware Installation only

Enhanced Service – Optimize service level to increase IT performance and availability

  • Support Service - 3-Year 24x7 24 hr Call to repair service support coverage
  • Support - 3-Year 24x7 6 hr Call to repair service support coverage
  • Support Plus - 24x7 4 hr Response service support including OS coverage

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

For a complete listing of service offerings and information visit: https://www.hp.com/services/proliantservices
https://h20219.www2.hp.com/services/us/en/warranty/carepack-servers-proliant.html

contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Models

Hot Plug Serial ATA (SATA)/Serial Attached SCSI (SAS) Models

8 Hard Drive Models

HP DL185G5 2374HE 2GB, (1P), 8LFF

507339-xx1

HP DL185 G5 2380, 4GB, (1P), 8LFF
507404-xx1

HP DL185 G5 2376, 2GB (1P), 8LFF
504445-xx1

Processor(s)
One of the following depending on model

(1) Quad-Core AMD Opteron™ processor Model 2380 (2.5 GHz, 75W)
(1) Quad-Core AMD Opteron™ processor Model 2376 (2.3 GHz, 75W)
(1) Quad-Core AMD Opteron™ processor Model 2374HE (2.2 GHz, 55W)

Cache Memory
One of the following depending on model
4 x 512 KB Level 2 cache and 6 MB shared Level 3 cache (2300 sequence)
4 x 512 KB Level 2 cache and 2 MB shared Level 3 cache (2300 sequence)

Memory
One of the following depending on model

2 GB (2 x 1 GB) Registered PC2-6400 DDR2 DIMMs (800MHz) with Advanced ECC capabilities (2376 model)
4 GB (2 x 2 GB) Registered PC2-6400 DDR2 DIMMs (800MHz) with Advanced ECC capabilities (2376 and 2380 models)

Network ControllerEmbedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
Storage ControllerHP Smart Array E200 Controller
Hard DriveNone ship standard
Internal Storage

8TB maximum

Optical DriveOptional
Power Supply750Watts - Hot-plug (Ships standard)
Fans4 system fans ship standard; Non-hot plug, Non-redundant
Form FactorRack (2U), (3.5 in/8.89 cm)

12 Hard Drive Models

HP DL185 G5 2376, 4GB (1P), 12LFF
507403-xx1

Processor(s)

(1) Quad-Core AMD Opteron™ processor Model 2376 (2.3 GHz, W75)

Cache Memory(4 x 512 KB) Level 2 cache and 2 MB shared Level 3 cache (2300 sequence)
Memory4 GB (2 x 2 GB) Registered PC2-5300 DDR2 DIMMs (667MHz) with Advanced ECC capabilities
Network ControllerEmbedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
Storage ControllerHP Smart Array P400/256 MB Controller
Hard DriveNone ship standard
Internal Storage

12TB maximum

Optical DriveOptional
Power Supply750Watts - Hot plug (Ships standard)
Fans4 system fans ship standard; Non-hot plug, Non-redundant
Form FactorRack (2U), (3.5 in/8.89 cm)

Country Code Key

xx = 00 U.S.
xx = 20 Brazil
xx = 37 APD
xx = 42 Euro
xx = AA PRC
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
NOTE: Eight drive models cannot be field upgraded to twelve drive model. Fourteen drive servers available via CTO only - customer must begin with the selection of the 12 drive CTO chassis cage.
NOTE: Customers requiring a DVD with a 12 hard drive model must order a rear DVD option kit. The DVD drive must be ordered separately.

Step 1: Base Configuration
 HP ProLiant DL185 G5 CTO Chassis
444764-B21
Factory Integrated Model ships with:
Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter
Standard Riser: (1) x4 PCI-E (LP), (2) x8 PCI-E (FL/FH)
NOTE: Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

750W Power Supply (Hot Plug, Autoswitching) (Standard)
One Highline IEC Power Cord
Four (4) Non-Hot Plug Fans
Rack Mount (2U), (3.5 in/8.89 cm)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
HP Processors AMD Opteron™ processor Quad-Core Model 2389 (2.9 GHz, 75W ACP), FIO
504777-B21
AMD Opteron™ processor Quad-Core Model 2384 DL185G5 (2.7 GHz, 75W ACP), FIO
506841-B21
AMD Opteron™ processor Quad-Core Model 2380 (2.5 GHz, 75W ACP), FIO
500813-B21
AMD Opteron™ processor Quad-Core Model 2379 (2.4 GHz, 55W ACP), FIO
500809-B21
AMD Opteron™ processor Quad-Core Model 2376 ( 2.3GHz, 75W ACP), FIO
504775-B21
AMD Opteron™ processor Quad-Core Model 2374HE (2.2 GHz, 55W ACP), FIO
507340-B21
AMD Opteron™ processor Quad-Core Model 2344HE (1.7 GHz, 55W ACP), FIO
490833-B21
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: https://www.amd.com/powernow.

HP Memory NOTE: DIMM banks are active only when the corresponding processor socket is populated.
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
2 GB REG PC2-6400 2 x 1 GB Kit
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-6400 2 x 2 GB Kit
4 GB REG PC2-5300 2 x 2 GB Low Power Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
8 GB REG PC2-6400 2 x 4 GB Low Power Kit
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit
8 GB REG PC2-6400 2 x 4 GB Kit
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit
16 GB REG PC2-5300 2 x 8 GB Kit
64 GB REG PC2-5300 8 x 8 GB Kit

HP Drive Cage Options HP 8 Hard Drive Cage, FIO
451368-B21
HP 12 Hard Drive Cage, FIO
451369-B21
NOTE: The installation of a 12HDD Cage requires the addition of a Smart Array PX00 Controller or 4-port SAS controller that supports expanders.

HP Storage Controller HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P400/512 Controller
NOTE: When ordering a Smart Array P400 Controller with BBWC the addition of the HP SA-P400 and SA-E500 24 In Battery Cable Kit (417836-B21 417836-B21) is required.
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
HP P410/ZM FIO Smart Array Controller 462860-B21 462860-B21
HP P410/256 FIO SA Cntrlr w/Battery 491195-B21 491195-B21
HP P212/256 FIO SA Cntrlr w/Battery 491191-B21 491191-B21
HP Smart Array P800 Controller

Step 3: Choose Additional Factory Integratable Options
HP Unique Options HP ProLiant DL185 PCI-X Riser Kit
NOTE: This option kit replaces the two full length/full height slots listed in step 1 base configuration.
NOTE: Optional PCI-X option kit includes: Slot 1: full-length/full-height PCI-X 100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.
451286-B21
HP Rear Hard Drive Kit HP DL185 Rear 2 Hard Drive Option Kit, FIO
NOTE: Supports 12 hard drive server models only. Hard Drives not included.
NOTE: This option replaces the 2 Full Length, Full Height x8 PCIe slots.
449736-B21

HP Optical Drives DVD-RW Drive (optional)
395498-B22
DVD-ROM Drive (optional)
361040-B22

Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options and Additional Options" sections below.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

DL185 G5 Core Options

NOTE: Some options may not be available for factory integration. Please contact an HP sales representative for additional information.
HP Unique Option HP DL185 Rear DVD Cage Kit
513168-B21
NOTE: Used for 12 drive models. DVD Drive not included.

HP Processor AMD Opteron™ processor Quad-Core Model 2389 (2.9 GHz, 75W ACP)
504777-B21
AMD Opteron™ processor Quad-Core Model 2384 (2.7 GHz, 75W ACP)
506841-B21
AMD Opteron™ processor Quad-Core Model 2380 (2.5 GHz, 75W ACP)
500813-B21
AMD Opteron™ processor Quad-Core Model 2379 (2.4 GHz, 55W ACP)
500809-B21
AMD Opteron™ processor Quad-Core Model 2376 (2.3 GHz, 75W ACP)
504775-B21
AMD Opteron™ processor Quad-Core Model 2374HE (2.2 GHz, 55W ACP)
507340-B21
AMD Opteron™ processor Model 2354 (2.2 GHz, 75W ACP)
468547-B21
AMD Opteron™ processor Model 2344HE (1.7 GHz, 55W ACP)

490833-B21

NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP visit: https://www.amd.com/powernow.

HP Memory

NOTE: DIMM banks are active only when the corresponding processor socket is populated.
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
2 GB REG PC2-6400 2 x 1 GB Kit
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
4 GB REG PC2-6400 2 x 2 GB Kit
4 GB REG PC2-5300 2 x 2 GB Low Power Single Rank Kit
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
8 GB REG PC2-6400 2 x 4 GB Low Power Kit
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit
8 GB REG PC2-6400 2 x 4 GB Kit
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit
16 GB REG PC2-5300 2 x 8 GB Kit
64 GB REG PC2-5300 8 x 8 GB Kit

HP Optical Drives DVD-RW Drive
395498-B22
DVD-ROM Drive
361040-B22

HP Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive 458926-B21 458926-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive 458945-B21 458945-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
SATA Hot Plug LFF (3.5-inch) Drives
HP 750GB 1.5G SATA 7.2K rpm LFF (3.5-inch) 1yr Warranty Hard Drive 432341-B21 432341-B21
HP 500GB 1.5G SATA 7.2K rpm LFF (3.5-inch) 1yr Warranty Hard Drive 395473-B21 395473-B21
HP 250GB 1.5G SATA 7.2K rpm LFF (3.5-inch) 1yr Warranty Hard Drive 349239-B21 349239-B21
HP 160GB 1.5G SATA 7.2K rpm LFF (3.5-inch) 1yr Warranty Hard Drive 349238-B21 349238-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html (Worldwide)
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD 570761-B21
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 1TB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
HP 750GB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard Drive
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 450GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 300GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
HP 146GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 384854-B21 384854-B21
NOTE: The purchase of SAS HBA or array controller is required.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)

HP Networking Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
10 Gigabit Ethernet Adapters
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Additional Options

HP Entry-Level Server Management HP LO100i Advanced, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates
530521-B21
NOTE: For additional information, please see the Lights-Out 100i QuickSpecs at: www.hp.com/go/lo100.

HP Insight Software HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic
NOTE: This part number can be purchased as a single license or as multiple licenses with a single activation key. Customer will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Electronic LTUs are only available through limited points of sales; if not available, order a printed license entitlement certificate instead.
TC213AAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates TC209A
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from: https://www.hp.com/go/ic-linux (click on Download button).
TC208A
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at: https://www.hp.com/go/ic-linux (click on Download button).
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key, and are available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: https://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7 Technical Support and Updates T9082AAE
HP Insight Control server deployment 1-Server License including 1 year 24x7 Technical Support and Updates 452151-B21
NOTE: Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at: https://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single activation key, and is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at: https://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html


HP Storage Controllers SAS Controllers
Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
Smart Array E500 Controller
HP Smart Array E500/256 MB Controller
NOTE: For external use only. The E500 only has external connectors.
NOTE: When ordering a Smart Array E500 Controller with BBWC the addition of the HP SA-P400 and SA-E500 24 In Battery Cable Kit (P/N 417836-B21 417836-B21) is required.
HP Smart Array P212 Controller
HP P212/256 Smart Array Controller 462834-B21 462834-B21
HP P212/ZM Smart Array Controller 462828-B21 462828-B21
Smart Array P400 Controller
HP Smart Array P400/256MB Controller
HP Smart Array P400/512MB Controller with BBWC
HP Smart Array P410 Controller
HP P410/256 Smart Array Controller 462862-B21 462862-B21
HP P410/512 BBWC Smart Array Controller 462864-B21 462864-B21
HP Smart Array P410/1G with FBWC 572532-B21 572532-B21
HP Smart Array P410/512MB with FBWC 578230-B21 578230-B21
Smart Array P411 Controller
HP Smart Array P411/1G Flash Backed Write Cache 572531-B21 572531-B21
HP Smart Array P411/512MB Flash Backed Write Cache 578229-B21 578229-B21
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
Smart Array P812 Controller
HP Smart Array P812/1G Flash Backed Cache Controller 487754-B21 487754-B21
Optional Upgrades
1G Flash Backed Write Cache 534562-B21 534562-B21
512MB Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller and Smart Array P400i Controller only.
405148-B21 405148-B21
512MB Flash Backed Write Cache 534916-B21 534916-B21
HP Smart Array P411/512MB Flash Backed Write Cache 578229-B21 578229-B21
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller and Smart Array P400i Controller only.
NOTE: When ordering a Smart Array P400 Controller with BBWC the addition of the HP SA-P400 and SA-E500 24 In Battery Cable Kit (P/N 417836-B21 417836-B21) is required.
383280-B21 383280-B21
HP SA-P400 and SA-E500 24 In Battery Cable Kit
NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the server if a Smart Array P400 or Smart Array E500 Controller is integrated outside of the factory. For all solutions, please refer to the server QuickSpecs and User's Manual for detailed installation instructions.
417836-B21 417836-B21
512MB Battery-backed write cache
NOTE: Supported on HP Smart Array P410 Controller and HP Smart Array P411 Controller only.
462967-B21 462967-B21
Battery Kit upgrade (for BBWC)
NOTE: To enable BBWC on the 256MB cache.
NOTE: Supported on HP Smart Array P212 Controller, HP Smart Array P410 Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 256MB P-Series Cache Module
NOTE: Supported on HP Smart Array P212 Controller.
462968-B21 462968-B21
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
https://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
https://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
NOTE: Please see the following Controller QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
https://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
https://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
https://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
https://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
https://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)


HP Power Supplies 750W 12V Hot Plug AC Power Supply
451366-B21
High Efficiency 1200W 12V Hot Plug AC Power Supply
437572-B21

HP HPC Specific Options HP IB 4X DDR PCI-e Dual Port 0 Memory HCA
483513-B21
HP IB 4X DDR PCI-e Dual Port HCA
HP 10 GbE PCI-e G2 Dual Port NIC 516937-B21
NOTE: For HPC interconnect adapters please see the HPC Interconnect section of this QuickSpecs.

HP Tape Backup

NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

Tape Drives
USB Rack-Mount Tape Solutions
DAT 320 USB External Tape Drive AJ823A
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
NOTE: Pre-configured with one DAT 160 USB tape drive.
AG703A
NOTE: HP recommends purchasing the HP SC44Ge HBA (416096-B21 416096-B21) for a dedicated SAS HBA for tape.
SAS Rack-Mount Tape Solutions
HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium 1760 Tape Drive
NOTE: Pre-configured with one LTO-4 Ultrium 1760 SAS tape drive.
EH946A
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: Supports up to (2) half-height SAS tape drives.
AE459A
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A).
Q1587A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A).
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A).

EH847A

DAT 320 WW SAS External Tape Drive AJ828A
SCSI Rack-Mount Tape Solutions
NOTE: SCSI Controller required. HP recommends purchasing the HP SC11Xe HBA (412911-B21 412911-B21) for a dedicated SCSI HBA for tape.
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive (Carbonite)
NOTE: Pre-configured with one LTO-2 Ultrium 448 SCSI tape drive.
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920
NOTE: Pre-configured with one LTO-3 Ultrium 920 SCSI tape drive.
EH903A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
NOTE: Pre-configured with one LTO-4 Ultrium 1840 SCSI tape drive.
EH926A
For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: https://www.hp.com/go/connect.
NOTE: For the complete listing of Tape Drive offerings, please see:
https://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader AE313B
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader AH558A
HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader AH164A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions.
AH166A
NOTE: Please see the QuickSpecs for Technical Specifications: https://www.hp.com/go/automation and for additional information needed to create a complete solution; reference current compatibility information at: https://www.hp.com/go/ebs.
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library AG115A AG115A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library AH559A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library AG116A AG116A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library AJ035A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library AK380A
HP StorageWorks MSL4048 1 Ultrium 960 SCSI Drive Library AG322A
HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library AH560A
NOTE: Please reference the QuickSpecs for Technical Specifications: https://www.hp.com/go/automation and additional information needed to create a complete solution; reference current compatibility information at: https://www.hp.com/go/ebs.

HP Disk Backup RDX Removable Disk Backup
HP StorageWorks RDX160 External Removable Disk Backup System
NOTE: 160GB of Disk Storage.
AJ766A
HP StorageWorks RDX320 External Removable Disk Backup System
NOTE: 320GB of Disk Storage.
AJ768A
HP StorageWorks RDX500 External Removable Disk Backup System
NOTE: 500GB of Disk Storage.
AJ935A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

D2D Backup
HP StorageWorks D2D2504i Backup System EJ002A
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage.
EH924A

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.

EH952A
HP StorageWorks D2D2503i Backup System
NOTE: 3TB of Disk Storage.
EH945A
HP StorageWorks D2D4004i Backup System
NOTE: 4.5TB of Disk Storage.
EH938A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hp.com/go/d2d (Worldwide)

HP StorageWorks Options HP StorageWorks Fibre Channel HBAs
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: https://h18006.www1.hp.com/storage/saninfrastructure/hba.html.

Brocade Fibre Channel HBAs
HP 81B PCIe 8Gb FC Single Port HBA
HP 82B PCIe 8Gb FC Dual Port HBA
HP 41B PCIe 4Gb FC Single Port HBA
HP 42B PCIe 4Gb FC Dual Port HBA
Emulex Fibre Channel HBAs
HP StorageWorks 81E 8Gb SP PCI-e FC HBA AJ762A AJ762A
HP 82E 8Gb Dual-port PCI-e FC HBA AJ763A AJ763A
HP StorageWorks FC2142SR 4Gb PCI-e HBA A8002A A8002A
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e FC HBA AK344A AK344A
HP 82Q 8Gb Dual Port PCI-e FC HBA AJ764A AJ764A
HP StorageWorks FC1142SR 4Gb PCI-e HBA AE311A AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA AE312A AE312A
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A AH627A
StorageWorks Converged Network Adapter
HP CN1000E 2P Converged Network Adapter AW520A AW520A

HP Modular Smart Array HP MSA SAN Storage Arrays



HP StorageWorks 20 Modular Smart Array 335921-B21 335921-B21
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
NOTE: The Modular Smart Array Enclosure 20 Family supports the SATA 1.5Gb/s 1" Hot Plug Hard Drives.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html (Worldwide)

HP StorageWorks 50 Modular Smart Array Enclosure 364430-B21 364430-B21
NOTE: Rack-mountable 10 SFF drive enclosure with single I/O module, redundant hot plug power supplies and hot plug fans.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html (Worldwide)

HP StorageWorks 60 Modular Smart Array 418408-B21 418408-B21
NOTE: Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html (Worldwide)

HP StorageWorks 70 Modular Smart Array 418800-B21 418800-B21
NOTE: Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html (Worldwide)


HP Uninterruptible Power Systems HP Rack-mountable UPS
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U, NA AF419A
HP, R1.5kVA UPS, 1U, INTL AF418A
HP, R1.5kVA UPS, 1U, JPN/TW AF421A
NOTE: Please see QuickSpecs for Technical Specifications and additional information: https://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html (Worldwide)
HP R3000 XR UPS Uninterruptible Power System
HP R3000 VA UPS, 2U, DTC, INTL AF414A
HP R3000 VA UPS, 2U, L6-20, NA AF423A
HP R3000 VA UPS, 2U, L6-20, JPN AF424A
HP R3000 VA UPS, 2U, L5-30, JPN AF425A
NOTE: Please see QuickSpecs Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html (Worldwide)
NOTE: For additional information on sizing your server, please reference: https://www.upssizer.com
NOTE: For additional information on HP Uninterruptable Power Systems please go to: www.hp.com/servers/rackups.


HP Rack Series HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet AF034A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet AF038A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet AF044A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet AF045A
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)

NOTE: For additional information regarding Rack Cabinets, please see the following URL: https://www.hp.com/go/rackandpower.

HP Rack Options Keyboards and Monitors
TAA TFT7600 Rackmount Keyboard and Monitor US AG067A
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media AF601A AF601A
4x1x16 IP Console Switch with Virtual Media AF602A AF602A
2x16 Server Console Switch with Virtual Media AF600A AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
AF604A AF604A
HP Server Console Switch (KVM), 0 x 2 x 8 port AF616A
HP Server Console Switch (KVM), 0 x 2 x 16 port AF617A
PS/2 Interface Adapter, 1 pack 262588-B21 262588-B21
PS/2 Interface Adapter, 8 pack 262587-B21 262587-B21
HP 1x4 Console Switch AF611A AF611A
HP PS2 Server Console Cable, 6 foot, 2-Pack AF612A AF612A
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE: Required for supporting USB peripherals.
AF613A AF613A
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: https://www.hp.com/go/kvm.
HP Serial Console Server Options
Server console switch 0x2x8 AF616A
Server console switch 0x2x16 AF617A
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
HP 16 Port Serial Console Server (worldwide) AF101A AF101A
HP 48 Port Serial Console Server (worldwide) AF102A AF102A
Serial Adapter, RJ45-D89 DCE Female, 1-pack AF103A AF103A
Serial Adapter, RJ45-D89 DCE Female, 8-pack AF110A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: https://www.hp.com/go/kvm.
Rack Kits
HP Rack Cable Management Velcro Clips 379820-B21

HP USB and SD Options USB 1.44-MB External Diskette Drive DC141B
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver) DC172B DC172B
HP Keyboard (USB) standard 2004 DT528A#ABA
HP USB Internal Cable Kit 451363-B21

HP Care Pack Services Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
UH271E
24-Hour x 7-Day Coverage, 3 Years, Electronic
UH272E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
UH270E
Hardware Services 6-Hour Call to Repair On-Site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
UH273E
Hardware Installation, Electronic
UH301E
NOTE: For more information, customer/resellers can contact: https://www.hp.com/services/carepack.
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Memory

NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL185 G5 (all models)
Standard Memory
1 GB (2 x 512 MB) PC2-5300 DIMM memory, with Advanced ECC Capabilities memory installed. (8 Hard Drive Model) (2200 sequence)
2 GB (2 x 1 GB) PC2-5300 DIMM memory, with Advanced ECC Capabilities memory installed. (8 Hard Drive Model, 2300 sequence)
2 GB (2 x 1 GB) PC2-6400 DIMM memory, with Advanced ECC Capabilities memory installed. (8 Hard Drive Model, 2300 sequence)
4 GB (2 x 2 GB) PC2-5300 DIMM memory, with Advanced ECC Capabilities memory installed. (12 Hard Drive Model)
4 GB (2 x 2 GB) PC2-6400 DIMM memory, with Advanced ECC Capabilities memory installed. (8 Hard Drive Model, 12 Hard Drive Model)
Maximum Memory

Up to 64 GB memory is available with the optional installation of PC2-5300 Registered DIMM memory kits.
Up to 32 GB memory is available with the optional installation of PC2-6400 Registered DIMM memory kits.
Memory should be installed in pairs and matched for optimum performance.

NOTE: Chart does not represent all possible memory configurations.
NOTE: DIMM banks are active only when the corresponding processor socket is populated.
Memory
Slot

1
2
3
4
5
6
7
8
Standard (1 GB)
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Standard (2 GB)
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty
Standard (4 GB)
2 GB
2 GB
Empty
Empty
Empty
Empty
Empty
Empty
Standard (8 GB)
2 GB
2 GB
2 GB
2 GB
Empty
Empty
Empty
Empty
Maximum (64 GB)
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
HP Memory Following are memory options available from HP:
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit 408850-B21 408850-B21
2 GB REG PC2-6400 2 x 1 GB Kit 497763-B21 497763-B21
2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit 483399-B21 483399-B21
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit 408851-B21 408851-B21
4 GB REG PC2-6400 2 x 2 GB Kit 497765-B21 497765-B21
4 GB REG PC2-5300 2 x 2 GB Low Power Single Rank Kit 483401-B21 483401-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit 408853-B21 408853-B21
8 GB REG PC2-6400 2 x 4 GB Low Power Kit 504351-B21 504351-B21
8 GB REG PC2-5300 2 x 4 GB Low Power Dual Rank Kit 483403-B21 483403-B21
8 GB REG PC2-6400 2 x 4 GB Kit 497767-B21 497767-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit 408854-B21 408854-B21
16 GB REG PC2-5300 2 x 8 GB Kit 408855-B21 408855-B21
64 GB REG PC2-5300 8 x 8 GB Kit 495605-B21 495605-B21
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Storage

1-8
Eight (8) 3.5" Hot Plug SAS/SATA Drive Bays
9
DVD-ROM, DVD RW

1-12
Twelve 3.5" Hot Plug SAS/SATA Drive Bays
NOTE: As shown here, the rear hard drive cage replaces the two full-length PCIe slots.

1
Two 3.5" Hot Plug SAS/SATA Drive Bays, (Optional)

Drive Support

Removable Media

Quantity
Supported
Position
Supported

Controller
DVD-ROM
Up to 1
9
Integrated IDE (ATAPI) (optional) - 8 HDD or 12 HDD w/ optional rear DVD FIO kit
DVD/CD RW
Up to 1
9
Integrated IDE (ATAPI) (optional) - 8 HDD or 12 HDD w/ optional rear DVD FIO kit

DL185 G5 Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

Quantity
Supported
Position
Supported

Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

Quantity
Supported
Position
Supported

Controller
60GB 3G SATA
120GB 3G SATA 250GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives

Quantity
Supported
Position
Supported

Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC11Xe Host Bus Adapter
SATA Hot Plug LFF (3.5-inch) Drives

Quantity
Supported
Position
Supported

Controller
750GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
250GB 1.5G SATA 7.2K
160GB 1.5G SATA 7.2K
Up to 8
1- 8
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256 MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required.
HP SC11Xe Host Bus Adapter
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

Quantity
Supported
Position
Supported

Controller
600GB 6G SAS 15K
450GB 6G SAS 15K
450GB 3G SAS 15K
300GB 6G SAS 15K
300GB 3G SAS 15K
146GB 3G SAS 15K
Up to 8
Up to 12
1- 8
1-12
HP Smart Array E200/128 BBWC Controller
HP Smart Array P400/256MB Controller
HP Smart Array P410 Controller
HP Smart Array P212 Controller
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP SC44Ge Host Bus Adapter
HP SC11Xe Host Bus Adapter

External Storage

Quantity
Supported
Position
Supported

Controller
20 Modular Smart Array Family
Up to 2 per SA-6402
Up to 4 per SA-6404
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
50 Modular Smart Array
Up to 2
External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
60 HP StorageWorks Modular Smart Array
Up to 8
External
HP Smart Array P800/512 BBWC Controller
70 HP StorageWorks Modular Smart Array
Up to 8
External
HP Smart Array P800/512 BBWC Controller

Tape and Disk-Based Backup

NOTE: For complete listing of tape drive offerings see: www.hp.com/go/connect


Position
Supported
Controller
Controller Part Number
HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter

HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A


HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit

External
HP SC44Ge Host Bus Adapter

HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader
1/8 G2 Tape Autoloader
MSL2024
MSL4048
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE: Recommended for MSL tape libraries.

HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
External
HP SC44Ge Host Bus Adapter

HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
External
Please consult the EBS connectivity matrix at: https://www.hp.com/go/ebs for detailed connectivity information.
N/A

HP StorageWorks RDX Removable Disk Backup System
RDX160
RDX320
RDX500
External
USB 2.0 Port
N/A


HP StorageWorks D2D Backup Systems
D2D120
D2D130
D2D2503i
D2D2504i
D2D4004i

External
Embedded Network Controller
N/A
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Power Specifications

750W Power Supply Spare Kit451366-291, -AA1, -B21
Operational Input Voltage Range (Vrms) 90Vac to 264Vac full range
Frequency Range (Nominal) (Hz)47 Hz to 63 Hz

Nominal Input Voltage (Vrms)
100
115
200
220
230
240
Max Rated Output Wattage Rating
750
750
750
750
750
750
Nominal Input Current (A rms)
9.1
7.9
4.3
4.0
3.8
3.7
Max Rated Input Wattage Rating (Watts)
893
888
872
862
862
862
Max. Rated VA
(Volt-Amp)
911
906
890
880
880
880
Efficiency (%)
84
84.5
86
87
87
87
Power Factor
0.98
0.98
0.98
0.98
0.98
0.98
Leakage Current (mA)
<0.43
<0.50
<.0.90
<0.96
<1.00
<1.04
Maximum Inrush Current (A peak)
30A
30A
30A
30A
30A
30A
Maximum Inrush Current Duration (mS)
5mS
5mS
5mS
5mS
5mS
5mS
contents
 Overview      Standard Features      Models      Configuration Information - Factory Integrated Models      DL185 G5 Core Options      Additional Options      DL185 G5 Memory      Storage      Power Specifications      DL185 G5 QuickSpecs images/line.gif

Quickspecs

System Unit Dimensions (H x W x D)
(with bezel)
3.44 x 17.64 x 27.50 in (8.75 x 44.80 x 69.88 cm)
Weight (approximate)Maximum
(all hard drives, power supplies and processors installed)
51.5 lb (19.22 kg)
Minimum
(one hard drive, power supply and processor installed)
35.0 lb (13.06 kg)
Input Requirements
(per power supply)
Rated Line Voltage100 - 240 VAC
Rated Input Current9.10 A (at 100 VAC),
4.5 A (at 200 VAC)
Rated Input Frequency50 to 60 Hz
Rated Input Power 910 W (at 100 VAC),
900 W (at 200 VAC)
BTU RatingMaximum 3107.82 BTU/hr (at 100 VAC),
3073.67 BTU/hr (at 200 VAC)
Power Specifications

To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: www.hp.com/go/proliant-energy-efficient

  • Click on the system of interest. Example: DL185 G5
  • Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power 750 W (at 100 VAC),
750 W (at 200 VAC)
Maximum Peak Power 750 W (at 100 VAC),
750W (at 200 VAC)

System Inlet Temperature



Operating

50° to 95°F (10° to 35°C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).
Non-operating-22° to 140° F (-30° to 60° C). Maximum rate of change is 36° F/hr (20° C/hr).

Relative Humidity
(non-condensing)


Operating

10 to 90% relative humidity (Rh), 82.4° F (28° C) maximum wet bulb temperature, non-condensing.
Non-operating5 to 95% relative humidity (Rh), 101.7° F (38.7° C) maximum wet bulb temperature, non-condensing.
AltitudeOperating

10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Non-operating30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
   LWAd6.7 B
   LpAm51 dBA
Operating
   LWAd6.7 B
   LpAm51 dBA
Emissions Classification (EMC)FCC RatingClass A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Smart Array E200 ControllerDisk Drive and Enclosure Interface3 G SAS (Serial Attached SCSI)
1.5 G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory SpeedDDR1-266 MHz provides up to 4.2 GB/s maximum bandwidth.
Server Interfacex8 2.5 G PCIe provides 2 GB/s maximum bandwidth.
SAS Speedx8 3 G SAS provides 2.4 GB/s maximum bandwidth.
Cache Memory40-bit 64MB cache or a 128MB battery backed cache: ECC protection, battery-backed, and transportable
Logical Volumes SupportedUp to 32 logical volumes
Maximum Volume Capacity 3TB (6 x 500 GB)
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
RAID SupportRAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Smart Array P400 ControllerDisk Drive and Enclosure Interface3 G SAS (Serial Attached SCSI)
1.5 G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory SpeedDDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interfacex8 2.5 G PCIe provides 2 GB/s maximum bandwidth.
SAS Speedx8 3 G SAS provides 2.4 GB/s maximum bandwidth.
Cache Memory40-bit 256 MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives SupportedUp to 32 logical drives
Maximum Logical Drive Capacity3TB (6 x 500 GB)
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
RAID SupportRAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)

Embedded NC7782 Dual Port PCI-X 10/100/1000T Gigabit network adapter Network Interface 10Base-T/100Base-TX/1000Base-TX
Compatibility IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method 64-bit, 133MHz PCI(X)1.0
Controller BCM5704c
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX Category 5 UTP (2 Pair); up to 328 ft (100 m)

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hp.com/go/green. To recycle your product, please go to: https://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: https://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.


Sillworks                  Ph: 1.613.599.1287                  Fax: 1.613.599.8120
U320 | SSD | SAS/SATA | Fibre | Memory | Controllers | Processors | Power Supplies | Networking
line
Dell | EqualLogic | EMC | Hewlett-Packard | IBM | Seagate
line
HP      HP      HP      Dell Home | Shopping Cart | Delivery | Forgot Password | Order By Phone | Create an Account Dell      Dell      Dell      Seagate
Terms of Use | Legal | Privacy | Primary Site | Contact us | Add to favorites
Amex Accepted Visa Accepted MasterCard Accepted
